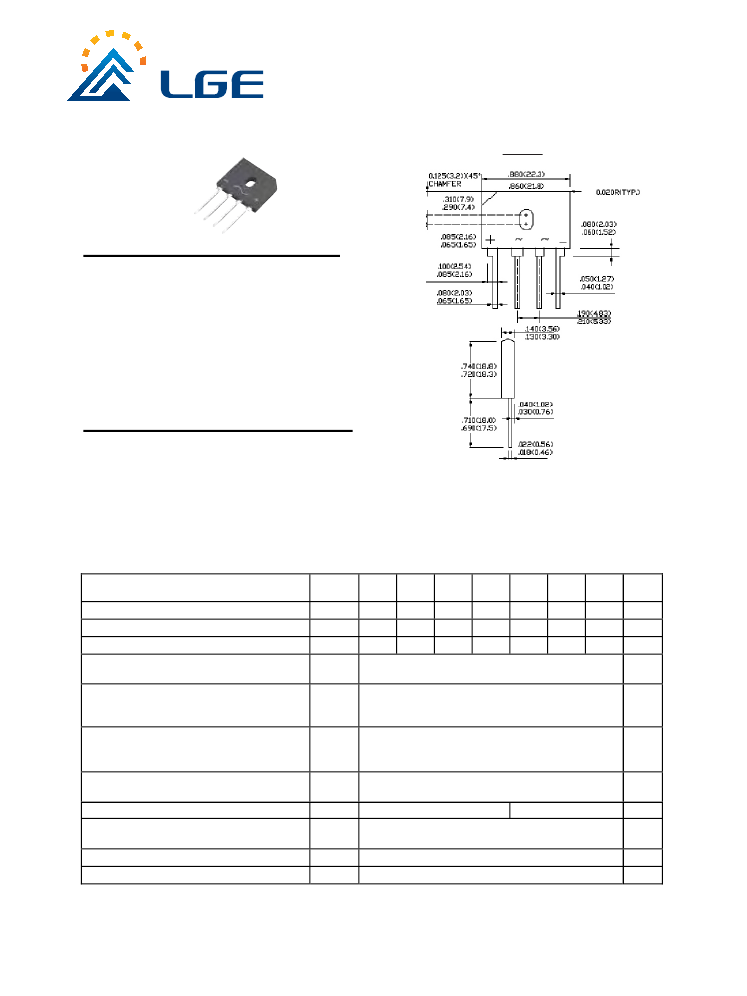

GBU601-GBU607
Single Phase 6.0AMP.Glass Passivated Bridge Rectifiers
GBU
Features
Ideal for printed circuit board
Reliable low cost construction
Plastic material has Underwriters Laboratory
Flammability Classification 94V-0
High case dielectric strength of 1500VRMS
Surge overload rating to 175 amperes peak
High temperature soldering guaranteed:
260
o
C / 10 seconds / .375”, (9.5mm) lead
lengths at 5 lbs., (2.3kg) tension
Mechanical Data
Case: Molded plastic body.
Weight: 0. 3 ounce, 8.0 grams
Mounting torque: 5 in. lb. max.
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
@T
C
= 100
o
C
Peak Forward Surge Current, 8.3 ms Single
Half Sne-wave Superimposed on Rated Load
(JEDEC method )
Maximum Instantaneous Forward Voltage
@ 3.0A
@ 6.0A
Maximum DC Reverse Current @ T
A
=25
o
C
at Rated DC Blocking Voltage @ T
A
=125
o
C
Typical Junction Capacitance (Note 3)
Typical Thermal Resistance (Note 1, 2)
Operating Temperature Range
Symbol GBU GBU GBU GBU GBU GBU GBU
Units
601 602 603 604 605 606 607
V
RRM
50
100 200 400 600 800 1000
V
V
RMS
35
70
140 280 420 560 700
V
V
DC
50
100 200 400 600 800 1000
V
I
(AV)
I
FSM
V
F
I
R
6.0
175
A
A
1.0
1.1
5.0
500
211
7.0
2.0
-55 to +150
-55 to + 150
94
o
V
uA
uA
pF
C/W
o
o
Cj
R
θJA
R
θJC
T
J
Storage Temperature Range
T
STG
1. Mounted on Al. Plate Heatsink of 2” x 3” x 0.25”.
Notes:
2. Bolt on Heatsink with silicone Thermal Compound for Maximum Heat Transfer with #6 Screws.
3. Measured at 1.0 MHZ and Applied Reverse Voltage of 4.0 Volts.
C
C
http://www.luguang.cn
mail:lge@luguang.cn
GBU601-GBU607
Single Phase 6.0AMP.Glass Passivated Bridge Rectifiers
RATINGS AND CHARACTERISTIC CURVES (GBU601 THRU GBU607)
FIG.1-MAXIMUM FORWARD CURRENT DERATING
CURVE
6
500
FIG.2- TYPICAL REVERSE CHARACTERISTICS
PER BRIDGE ELEMENT
AVERAGE FORWARD CURRENT. (A)
4
INSTANTANEOUS REVERSE CURRENT. (
m
A)
100
Tj=125
0
C
10
2
HEAT-SINK MOUNTG
2.6 x 1.4 x 0.06" THK
(6.5 x 3.5 x 0.15 cm)AI. PLATE
0
0
50
100
o
1
150
CASE TEMPERATURE. ( C)
0.1
Tj=25
0
C
FIG.3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER BRIDGE ELEMENT
175
50-400V
600-1000V
0.01
0
80
100
20
40
60
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
PEAK FORWARD SURGE CURRENT. (A)
150
125
100
75
JUNCTION CAPACITANCE.(pF)
Tj=150 C
8.3ms Single Half Sine Wave
500
FIG.4- TYPICAL JUNCTION CAPACITANCE
Tj=25
0
C
300
50
25
0
1
2
10
5
20
NUMBER OF CYCLES AT 60Hz
50
100
GBU601-GBU604
250
200
150
100
50
0
0.1
100
FIG.5- TYPICAL FORWARD CHARACTERISTICS
PER BRIDGE ELEMENT
GBU605-GBU607
0.5
1
2
5
10
20
50 100
200
500 800
REVERSE VOLTAGE. (V)
INSTANTANEOUS FORWARD CURRENT. (A)
40
20
10
4
2
1
0.4
0.2
0.1
0.6
Tj=25
0
C
Pulse Width=300
m
s
1% Duty Cycle
0.7
0.8
0.9
1.0
1.1
1.2
1.3
INSTANTANEOUSFORWARD VOLTAGE. (V)
