SMD ESD Protection Diode
CPDVR5V0-HF
RoHS Device
Halogen Free
WBFBP-02C-C
Features
- IEC61000-4-2 Level 4 ESD Protection.
- Bi-directional ESD protection of one line.
- JESD22-A114-B ESD Rating of class 3B
-
per human body model.
- Fast response time.
- Low leakage current.
- Low reverse clamping voltage.
0.004(0.09)
0.000(0.01)
0.026(0.65)
0.022(0.55)
0.041(1.05)
0.037(0.95)
0.022(0.55)
0.018(0.45)
Mechanical data
- Case:
WBFBP-02C-C Plastic-Encapsulate Diodes
- Terminals: Tin plated, solderable per
MIL-STD-750,method 2026.
- Marking code: Y
- Mounting position: Any.
0.015(0.39)
REF.
0.002(0.05)
REF.
0.020(0.50)
0.016(0.40)
0.015(0.37)
0.011(0.27)
0.002(0.05)
REF.
0.017(0.42)
REF.
Circuit Diagram
0.014(0.36)
REF.
0.027(0.68)
0.023(0.58)
Dimensions in inches and (millimeter)
Maximum Ratings
(at TA=25°C unless otherwise noted)
Parameter
Air Model
IEC 61000-4-2 ESD Voltage
Contact Model
JESD22-A114-B ESD Voltage
ESD Voltage
Peak Pulse Power
Peak Pulse Current
Lead Solder Temperature - Maximum (10 Second Duration)
Junction temperature
Storage temperature rang
Notes:
(1)
Device stressed with ten non-repetitive ESD pulses.
(2)
Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5.
Symbol
Limit
±25
±25
Unit
V
ESD
Per Human Body Model
Machine Model
P
PP
I
PP
T
L
T
J
T
STG
(1)
kV
±16
±0.4
(2)
40
4
260
150
-55 to +150
W
A
°C
°C
°C
(2)
Company reserves the right to improve product design , functions and reliability without notice.
QW-JP042
REV: C
Page 1
Comchip Technology CO., LTD.
SMD ESD Protection Diode
Electrical Characteristics
(at TA=25°C unless otherwise noted)
Parameter
Reverse stand-off voltage
Conditions
Symbol
V
RWM
(1)
Min
-
-
Typ
-
-
-
-
Max
5
Unit
V
Reverse leakage current
Breakdown voltage
Clamping voltage
Junction capacitance
V
RWM
= 5 V
I
T
= 1 mA
I
PP
= 4 A
V
R
= 0V , f = 1MHz
I
R
V(
BR)
V
C
C
J
(2)
0.1
8.0
10
15
μA
V
V
pF
5.8
-
-
12
Notes:
(1)
Other voltages available upon request.
(2)
Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5.
RATING AND CHARACTERISTIC CURVES (CPDVR5V0-HF)
Fig.1 - Reverse Characteristics
100
Pulsed
T
A
=100°C
Fig.2 - Capacitance Characteristics
15
75
Capacitance Between Terminals, (pF)
T
A
=25°C
f=1MHz
Reverse Current, (mA)
12
50
T
A
=25°C
25
0
-25
-50
-75
-100
-8
-6
-4
-2
0
2
4
6
8
9
6
3
0
0
1
2
3
4
5
6
Reverse Voltage, (V)
Reverse Voltage, (V)
Fig.3 - V
C
— I
PP
8.0
T
A
=25°C
tp=8/20μs
Clamping
Voltage, (V)
7.5
7.0
6.5
6.0
1.0
1.5
2.0
2.5
3.0
3.5
4.0
Reverse Peak Pulse Current, (A)
Company reserves the right to improve product design , functions and reliability without notice.
QW-JP042
REV: C
Page 2
Comchip Technology CO., LTD.
SMD ESD Protection Diode

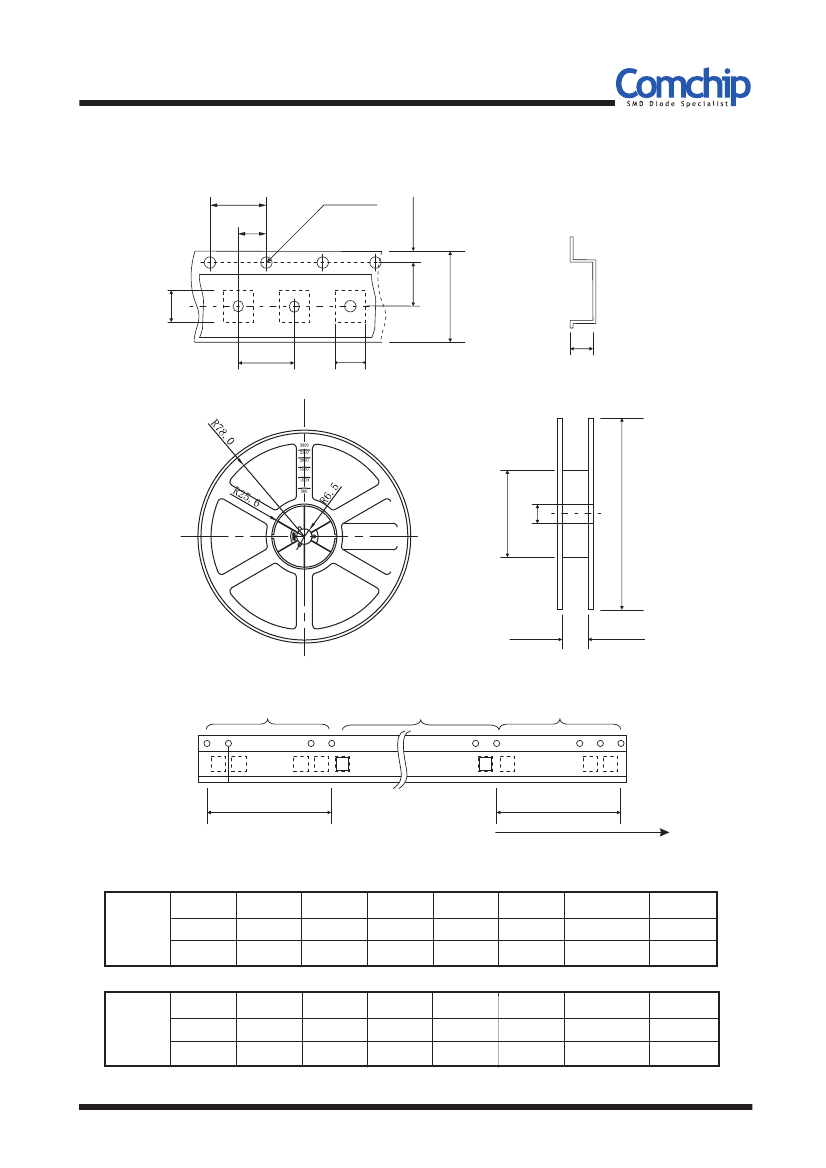

Reel Taping Specification
P
0
P
1
d
Index hole
E
F
B
P
A
W
C
D
1
D
2
D
W
1
Trailer
.......
.......
10 pitches (min)
Device
.......
.......
.......
.......
Leader
.......
.......
10 pitches (min)
End
Start
Direction of Feed
SYMBOL
A
0.66
±
0.05
0.026
±
0.002
B
1.15
±
0.05
0.045
±
0.002
C
0.66
±
0.05
0.026
±
0.002
d
1.50
+
0.10
0.059
+
0.004
D
178.00
±
2.00
7.008
±
0.079
D
1
54.40
±
1.00
2.142
±
0.039
D
2
13.00
±
1.00
0.512
±
0.039
WBFBP
-02C-C
(mm)
(inch)
SYMBOL
E
1.75
±
0.10
0.069
±
0.004
F
3.50
±
0.10
0.138
±
0.004
P
2.00
±
0.10
0.079
±
0.004
P
0
4.00
±
0.10
0.157
±
0.004
P
1
2.00
±
0.10
W
8.00
+
0.30 /
–0.10
W
1
9.50
±
1.00
WBFBP
-02C-C
(mm)
(inch)
0.079
±
0.004
0.315
+
0.012 /
–0.004
0.374
±
0.039
Company reserves the right to improve product design , functions and reliability without notice.
QW-JP042
REV: C
Page 3
Comchip Technology CO., LTD.
SMD ESD Protection Diode
Marking Code
Part Number
CPDVR5V0-HF
Marking Code
Y
Y
Suggested PAD Layout
WBFBP-02C-C
SIZE
(mm)
A
B
C
D
E
0.55
0.52
0.15
0.63
(inch)
0.022
0.020
0.006
0.025
D
E
C
A
C
B
1.00*0.60 PKG.
Standard Packaging
REEL PACK
Case Type
REEL
( pcs )
Reel Size
(inch)
WBFBP-02C-C
10,000
7
Company reserves the right to improve product design , functions and reliability without notice.
QW-JP042
REV: C
Page 4
Comchip Technology CO., LTD.
