3-TERMINAL REGULATOR (-3.3V)
SC1714
February 2, 1998
TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com
DESCRIPTION
The SC1714 is a 3-terminal negative voltage regulator
with an output voltage rated at 3.3V below the positive
supply voltage. Designed to be an improved plug in
replacement for the BA714, it offers a low typical
supply current of 12µA, a high output current sinking
capability of 5mA, and a low negative temperature
coefficient. It also features output overload protection.
The SC1714 is ideal as a power source for liquid
crystal displays.
FEATURES
•
Low power supply current.
•
Low negative TC.
•
High output sinking capability.
•
Ouput overload protection.
APPLICATIONS
•
Printing calculators
•
Cameras
•
Voltage reference for instrumentation

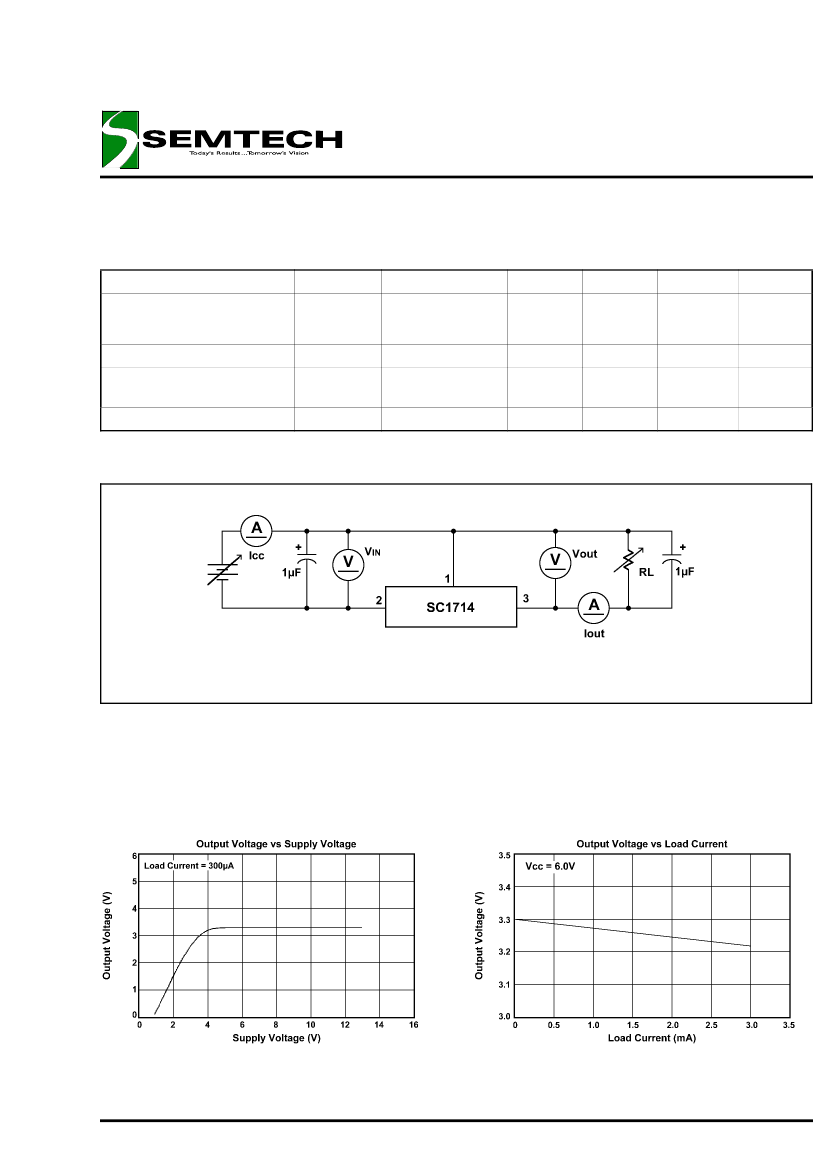

TYPICAL APPLICATION CIRCUIT
ORDERING INFORMATION
DEVICE
(1)
PACKAGE
TO-92
SC1714ZS5
Note:
(1) Add suffix ‘TR’ for tape and reel.
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply Voltage
Power Dissipation
Operating
Temperature Range
Storage
Temperature Range
Output Current
Symbol
V
CC
P
D
T
A
T
STG
I
OUT
Maximum
12.5
300
-25 to 75
-55 to 125
50
Units
V
mW
°C
°C
mA
PIN CONFIGURATION
PIN DESCRIPTIONS
PIN 1: GND
PIN 2: V
IN
PIN 3: V
OUT
Ground
Input voltage
Ouput Voltage
© 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
3-TERMINAL REGULATOR (-3.3V)
SC1714
February 2, 1998
ELECTRICAL CHARACTERISTICS
Unless otherwise specified, T
A
= 25°C, V
CC
= 6.0V
Parameter
Output Voltage
Symbol
V
OUT
Conditions
V
CC
= 4-12V,
I
OUT
= 50-300µA
T
A
= 0°C-40°C
R
L
=
∞
R
L
=
∞
Min
3.2
Typ
Max
3.4
Units
V
Supply Current
Output Voltage to Supply
Voltage Ratio
Output Short Circuit Current
I
CC
V
OUT
/ V
CC
I
OS
12
1
5
17
µA
mV/V
10
mA
TEST CIRCUIT
TYPICAL PERFORMANCE CHARACTERISTICS
© 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
3-TERMINAL REGULATOR (-3.3V)
SC1714
February 2, 1998
TYPICAL PERFORMANCE CHARACTERISTICS (cont.)

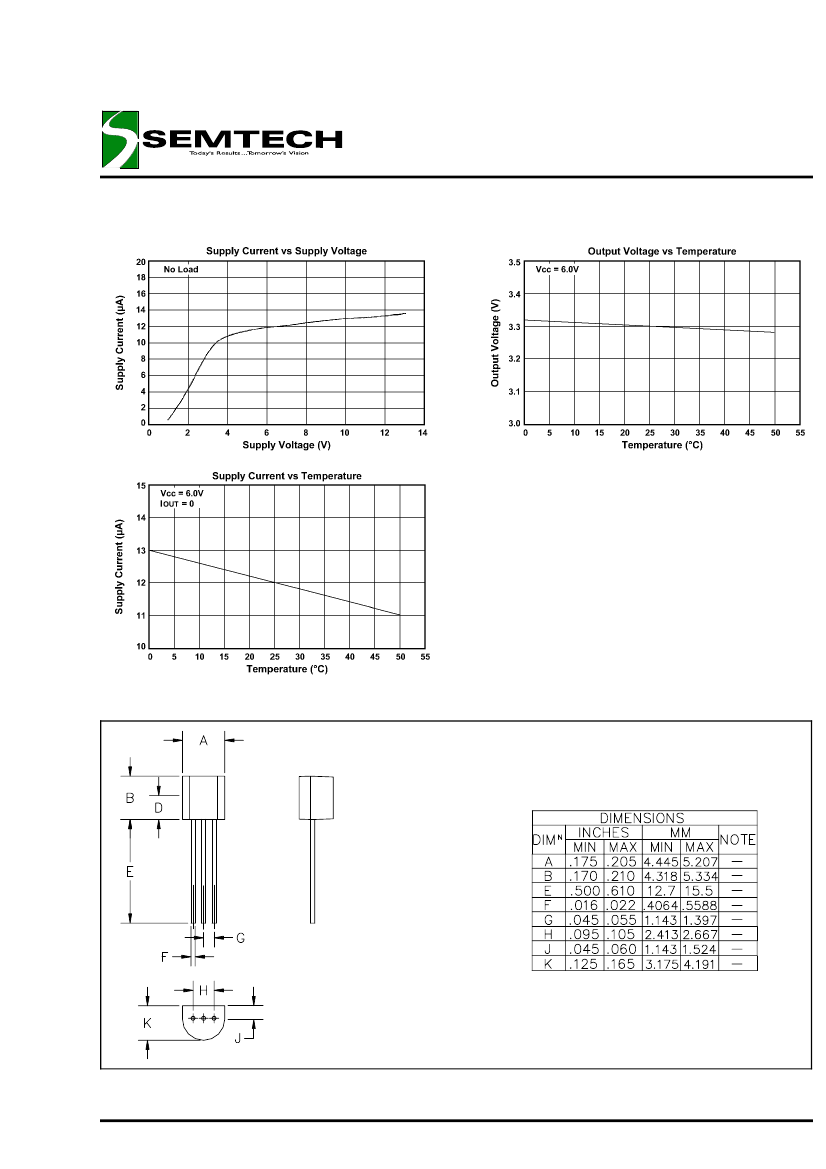

DEVICE OUTLINE - TO-92
© 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320
