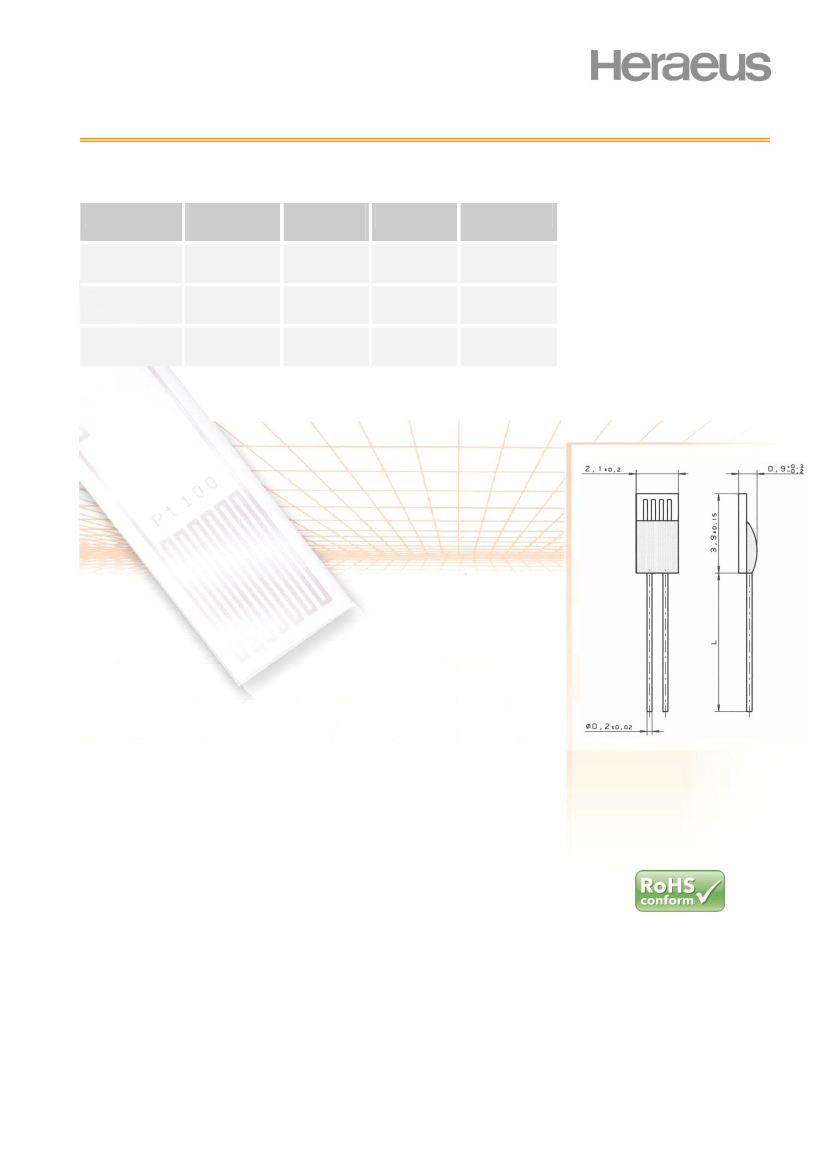

Platinum Resistance Temperature Detector

M 422

M series PRTDs are especially robust and are designed for large volume applications where long term stability,

interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White

Goods, HVAC, Energy Management, Medical and Industrial Equipment.

Nominal

Resistance R0

100 Ohm at 0°C

Tolerance

DIN EN 60751

1996-07

Class 1/3 B

Class A

Class B

Class 1/3 B

Class A

Class B

Class 1/3 B

Class A

Class B

Tolerance

DIN EN 60751

2009-05

F 0.1

F 0.15

F 0.3

F 0.1

F 0.15

F 0.3

F 0.1

F 0.15

F 0.3

Order Number

Plastic Bag

32 208 500

32 208 498

32 208 392

32 208 502

32 208 501

32 208 414

32 208 537

32 208 503

32 208 499

Order Number

Blister reel

32 208 522

32 208 521

32 208 520

32 208 525

32 208 524

32 208 523

32 208 527

32 208 526

500 Ohm at 0°C

1000 Ohm at 0°C

The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.

Specification

Temperature range

DIN EN 60751 (according to IEC 751)

-70°C to +500°C (continuous operation)

(temporary use to 550°C possible)

Tolerance Class B:

-70°C to +500°C

Tolerance Class A:

-50°C to +300°C

Tolerance Class 1/3 B:

0°C to +150°C

TC = 3850 ppm/K ; 3750 ppm/K available

on request

Pt clad Ni- wire

Recommend connection technology:

Welding, Crimping and Brazing

10mm ±1mm

max. R

-drift 0.04% after 1000 h at 500 °C

at least 40g acceleration at 10 to 2000 Hz,

depends on installation

at least 100g acceleration with 8ms half sine

wave, depends on installation

unhoused for dry environments only

> 100 M at 20°C; > 2 M at 500°C

0.3 K/mW at 0°C

water current (v= 0.4m/s):

air stream (v= 2m/s):

0.5

= 0.07s

0.9

= 0.20s

0.5

= 3.2s

0.9

= 11s

Temperature coefficient

Leads

Lead lengths (L)

Longterm stability

Vibration resistance

Shock resistance

Environmental conditions

Insulation resistance

Self heating

Response time

Measuring current

100: 0.3 to 1.0mA

500: 0.1 to 0.7mA

1000: 0.1 to 0.3mA

(self heating has to be considered)

Other tolerances, values of resistance and wire lengths are

available on request.

Note

We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee

particular properties to any products.

Heraeus Sensor Technology USA

1901 Route 130

North Brunswick, NJ 08902

Phone 732-940-4400

Fax 732-940-4445

Email info.hst-us@heraeus.com

http://heraeus-sensor-technology-us.com

Name of document: 30910021 Index B

Status: 06/2010
