CC1210MKX5R7BB225 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CC1210MKX5R7BB225

CC1210MKX5R7BB225: DescriptionCeramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 2.2uF, Surface Mount, 1210, CHIP, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components capacitor; File Size987KB，18 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CC1210MKX5R7BB225 Overview

Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 2.2uF, Surface Mount, 1210, CHIP, HALOGEN FREE AND ROHS COMPLIANT

CC1210MKX5R7BB225 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8197959344
package instruction	, 1210
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.9 mm
JESD-609 code	e3
length	3.2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, BLISTER, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
size code	1206
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.6 mm

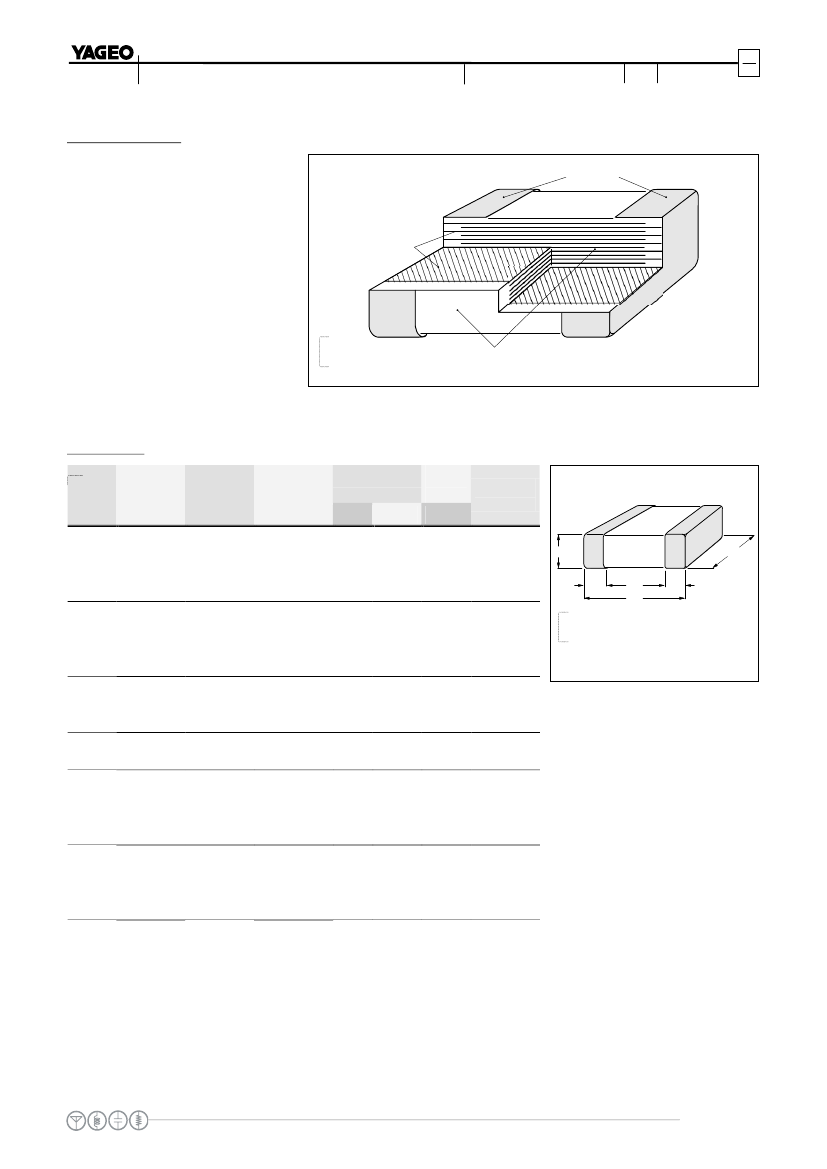

Preview

Download Datasheet

View All

DATA SHEET

SURFACE MOUNT MULTILAYER

CERAMIC CAPACITORS

General purpose & High capacitance

Class 2, X5R

4 V TO 50 V

100 pF to 220 µF

RoHS compliant & Halogen free

Product Specification

– September 17, 2021 V.27

CC1210MKX5R7BB225 Related Products

	CC1210MKX5R7BB225	CC0402MPX5R6BB474	CC0402MRX5R6BB474	CC1206MFX5R7BB475	CC0805MCX5R6BB226
Description	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 2.2uF, Surface Mount, 1210, CHIP, HALOGEN FREE AND ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0402, CHIP, HALOGEN FREE AND ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X5R, 15% TC, 4.7uF, Surface Mount, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 22uF, 0805,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Objectid	8197959344	2037869939	2037869977	2037870552	993477735
package instruction	, 1210	, 0402	, 0402	, 1206	, 0805
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2.2 µF	0.47 µF	0.47 µF	4.7 µF	22 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	1.9 mm	0.5 mm	0.5 mm	1.6 mm	1.25 mm
JESD-609 code	e3	e3	e3	e3	e3
length	3.2 mm	1 mm	1 mm	3.2 mm	2 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
multi-layer	Yes	Yes	Yes	Yes	Yes
negative tolerance	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT	SMT	SMT
method of packing	TR, BLISTER, 7 INCH	TR, PAPER, 13 INCH	TR, PAPER, 7 INCH	TR, BLISTER, 13 INCH	Bulk
positive tolerance	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	16 V	10 V	10 V	16 V	10 V
size code	1206	0402	0402	1206	0805
surface mount	YES	YES	YES	YES	YES
Temperature characteristic code	X5R	X5R	X5R	X5R	X5R
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
width	1.6 mm	0.5 mm	0.5 mm	1.6 mm	1.25 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
Is it lead-free?	-	Lead free	Lead free	Lead free	-
