Marvell 88PA6220 Dual-Core MFP Printer SoC
ARM Cortex A53 Dual-Core, 3D GPU, HW Image Pipeline
PRODUCT OVERVIEW
The Marvell® 88PA6220 is a highly integrated system-on-a-chip (SoC) solution for the
mainstream class color and monochrome single or multi-function printers. The 88PA6220
combines powerful processing with a host of I/O capabilities and dedicated imaging
hardware to deliver high performance and excellent image quality.
The 88PA6220 integrates a powerful dual core 1.0 GHz ARM® A53 processor to handle all
the application processing and PDL rendering requirements. The 88PA6220 also includes a
highly-configurable, hardware pipeline supporting imaging functions for scan/copy/print.
Functions include image data correction and filtering, color space transformations and
multiple half-toning methods. The 88PA6220 drives multiple printing technologies and
incorporates print engine technology-specific operations like laser trapping and inkjet
depletion. With pixel processing rates of 200 Megapixel/sec, the 88PA6220 supports even
the fastest printing needs. The direct engine control interface supplies highly integrated
motion control of print and scan mechanisms and print engine output, thereby reducing
overall system cost and complexity.
The 88PA6220 integrates key system interfaces including PCIe Gen2, USB 3.0, integrated
Gigabit Ethernet and a 3x SDIO interfaces for memory card and Marvell Wi-Fi solutions. In
addition, the 88PA6220 integrates support for other peripheral interfaces including SPI,
16550-compatible UARTs, and I2C for external fax/modem, Bluetooth, etc. User interfaces
are supported by an integrated LCD controller (parallel or LVDS), and on-board GPU.
The 88PA6220 introduces Marvell’s revolutionary modular chip (MoChi™) architecture into
the Printer SoC family, extending the I/O capabilities of the 6220 through the growing
portfolio of Marvell connectivity and expansion solutions.

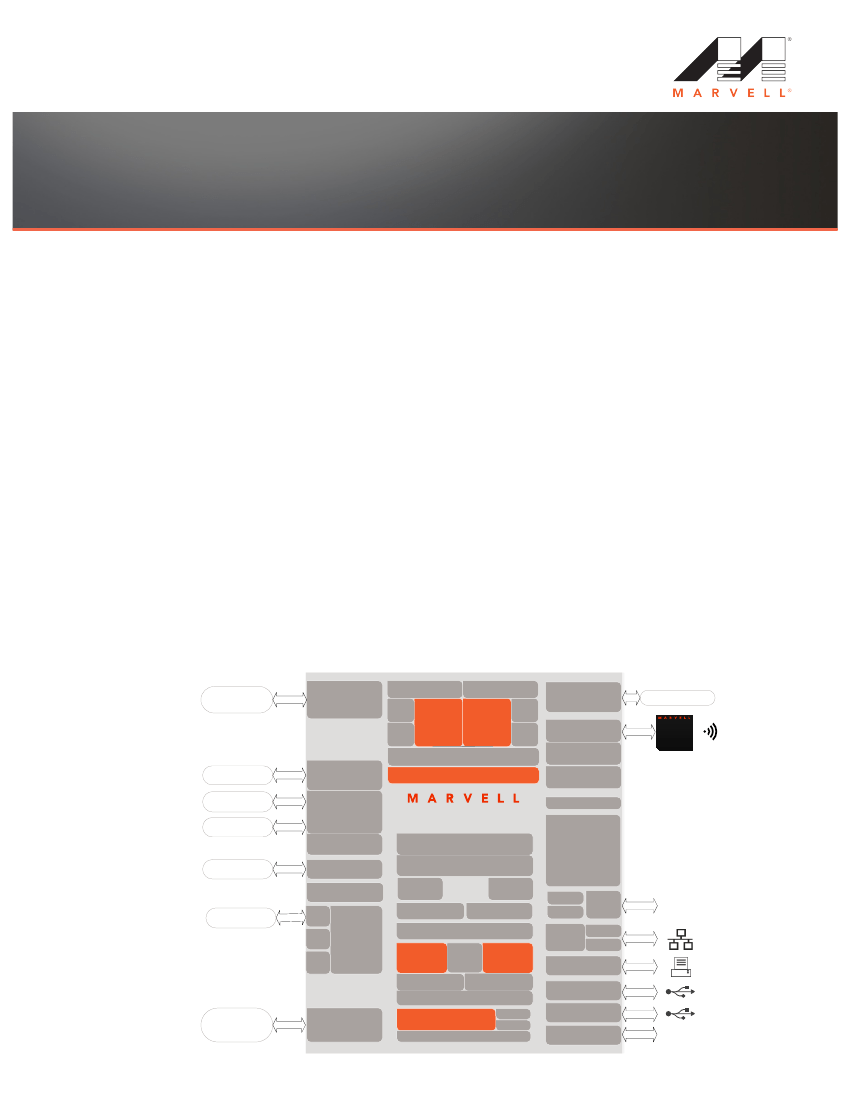

BLOCK DIAGRAM
DRAM DDR3/4
Up to 2 GB
DDR3/4-1600
16-bit
NEON SIMD / VFP
32K D$
Cortex A53
1.0 GHz
32K I$
L2 Cache 256KB
Cortex A53
1.0 GHz
32K I$
NEON SIMD / VFP
NAND Flash
32K D$
eMMC v4.5
SDIO v3.0
eMMC v4.5
SDIO v3.0
eMMC v4.5
SDIO v3.0
RTC
SCCP x3
SPI x3
UART x4
I2S
I2C x6
OWI
Audio DDAC
GPIO
USB3.0 D
Encryption Engine
WTM (AES, 3DES)
Scanner
Interface
Currency Detection
PCIe x1
Shared
PHY
GbE PHY
RGMII
NAND
W8801
WiFi
LSU
HVU
Fuser
Laser Control
Video x4, PWM, BD
GPU GC400LT
Direct Engine Control
PWM, Lscan, Exp
ADC
2MHz, 8-inputs
88PA6220
MFP
Platform
Scan/Copy Image Pipe
Print Image Pipe
JPEG
JBIG
Motors
DC x10, Stepper x10
VCF
AFE
3-ch
Parallel
LVDS
CIS x2
SRAM 192KB
Dragonite
(ARM9-class)
533 MHz
ITCM 16KB
SDTCM
128 KB
Dragonite
(ARM9-class)
533 MHz
ITCM 16KB
GbE MAC
Integrated Fax
Universal Programmable Controller
USB2.0 H/D | PHY
USB2.0 H | PHY
MoChi x1
LCD Display
Cap Touch
Overlay
LCD Controller
8b parallel/LVDS
UI Scalar
Cortex R4
400 MHz
Power Management
8K D$
16K I$
Marvell 88PA6220 Dual-Core MFP Printer SoC
KEY FEATURES
FEATURES
Benefits
•
Leading Edge Performance with ARM Cortex Dual-Core CPU at 1.0
GHZ
•
NEON ™ Engine for broad support of codecs
•
ARM Cortex R4 for power management, or other tasks while SoC is
active
•
UPC with 2x ARM9-class processors for dedicated real time control
•
Fast, wide bus supports fast page processing
•
Up to 4GB DDR3L, DDR4 32-bit provides 1600 MT/s per pin
•
Vivante GC400LT for smooth 3D and 2D video and graphics
•
Peak Rate rendering at 30 Mtriangles/s, 0.15 Gpixels/s, and 75 M
Vert/sec
•
Support for industry standard APIs, including OpenGL ES 2.0/1.1,
OpenVG 1.1, DirectFB, BLTsville, 2D GAL
•
Hardware pipeline dedicated to image processing, running at
200 Mpixel/sec
•
Mono copy: 150 IPM (dual 75 IPM scan, 150 ppm print output)
wide format A4
•
Color Copy: 60 IPM (dual 30 IPM scan, 60 ppm print output)
wide format A4
•
Duplex Scanning
•
Integrated AFE
•
Broad set of connectivity features to meet individual customer
needs. Key features include:
Connectivity
–
USB 2.0/3.0
–
PCIE Gen 2
–
SCCP, a configurable serial port capable of emulating standard and
customer-unique serial communication protocols.
–
Marvell’s MoChi interface enables expansion through Marvell’s
growing portfolio of MoChi Southbridge solutions
SPECIAL FEATURES
CPU
Memory
GPU
Imaging
Security
•
Secure Boot from NAND and eMMC
•
Hardware authentication, encryption and decryption for industry
standards protocols such as: AES, 3DES, RC4, SHA256, SHA1,
MD5
•
Integrated support for Marvell PA810 Security Chip for
Consumables Management
•
Currency Detection
•
Full Hardware Development Kit (HDK, including 8PA6220
Evaluation Board for fast evaluation and design
•
Full Linux Software Development Kit (SDK)
•
Complete HDK and SDK Documentation
Development Kit
TARGET APPLICATIONS
•
Mainstream Class Printers and MFPs
•
Inkjet, Laser, LED Technologies
•
Consumer Electronic Devices
•
Dedicated Document Scanners
•
General Purpose Embedded Controller
