88F6282 Overview

High-performance single-issue CPU

300 series
Marvell 88F6282 SoC

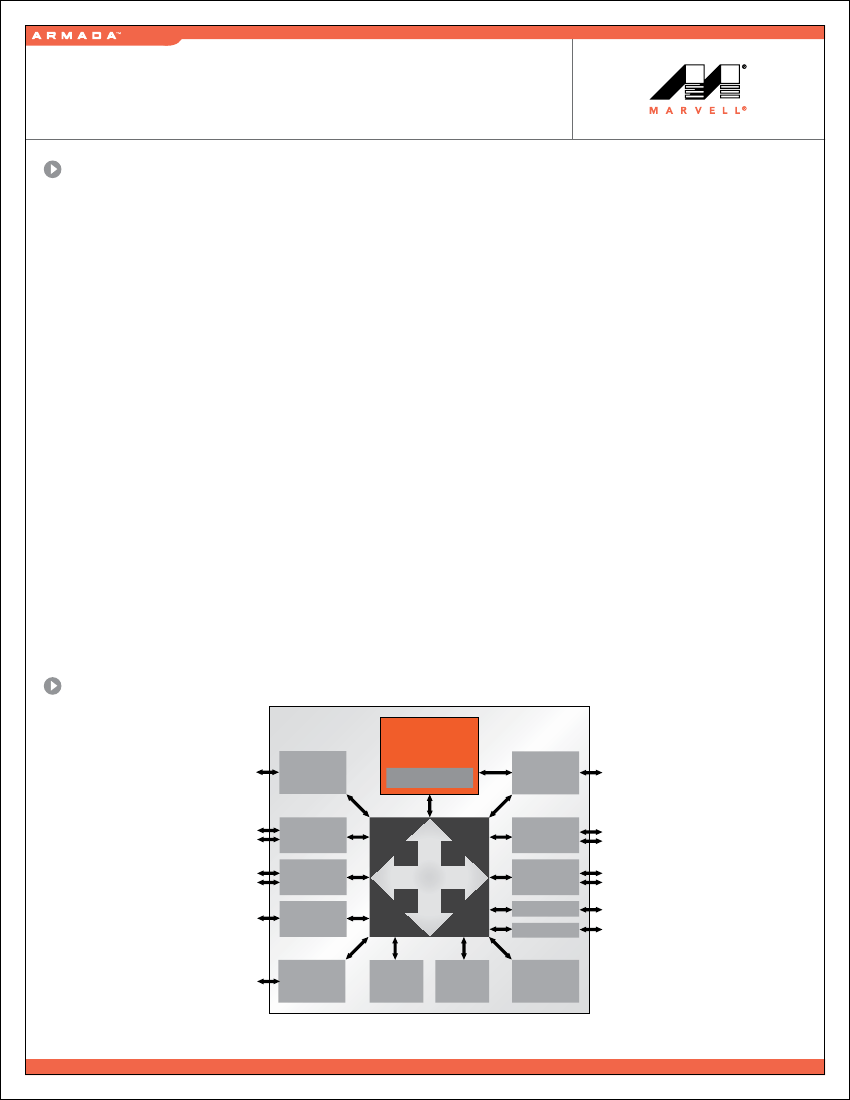

PRODUCT OVERVIEW
The Marvell
®
88F6282 SoC is a high-performance integrated controller. It integrates the Marvell developed CPU core
which is fully ARMv5TE-compliant with a 256KB L2 Cache. The 88F6282 builds upon Marvell’s innovative Feroceon
®
family of processors, improves performance, and adds new features to reduce bill of materials (BOM) costs. The
88F6282 is suitable for a wide range of applications such as routers, gateway, media server, storage, thin clients, set-
top-box, networking, point of service and printer products.
The 88F6282 offers unparalleled integration that makes system design simple and cost efficient. The SoC integrates:
High-performance single-issue CPU
1.6 GHZ, 1.8GHz, and 2.0 GHz operating speed
16KB-Instruction and 16KB-Data 4-way, set-associative L1 cache
256KB unified 4-way, set-associative L2 cache
16-bit DDR2/3 memory interface (up to 1066 MHz data rate)
Two Gigabit Ethernet MACs with interface options
Audio Video Bridging
Two PCI-Express ports
Single USB 2.0 port with integrated PHY
Two SATA 2.0 ports with integrated PHYs
LCD controller supporting up to 1080p and UXGA resolutions
Network security engine with various encryption algorithm support
Audio and MPEG Transport Stream Interface
Two TDM Channels, SDIO/MMC, NAND flash, SPI, two TWSI, and two UART interfaces
DMA/XOR engine with four channels
RTC and Thermal sensor
Compact Package (15 x 15mm FCBGA)
The innovative, on-chip crossbar architecture with any-to-any connectivity enables concurrent transactions among
multiple units that results in high system throughput allowing system designers to create high-performance scalable
systems. Tightly integrated CPU and memory controller significantly improves application performance.

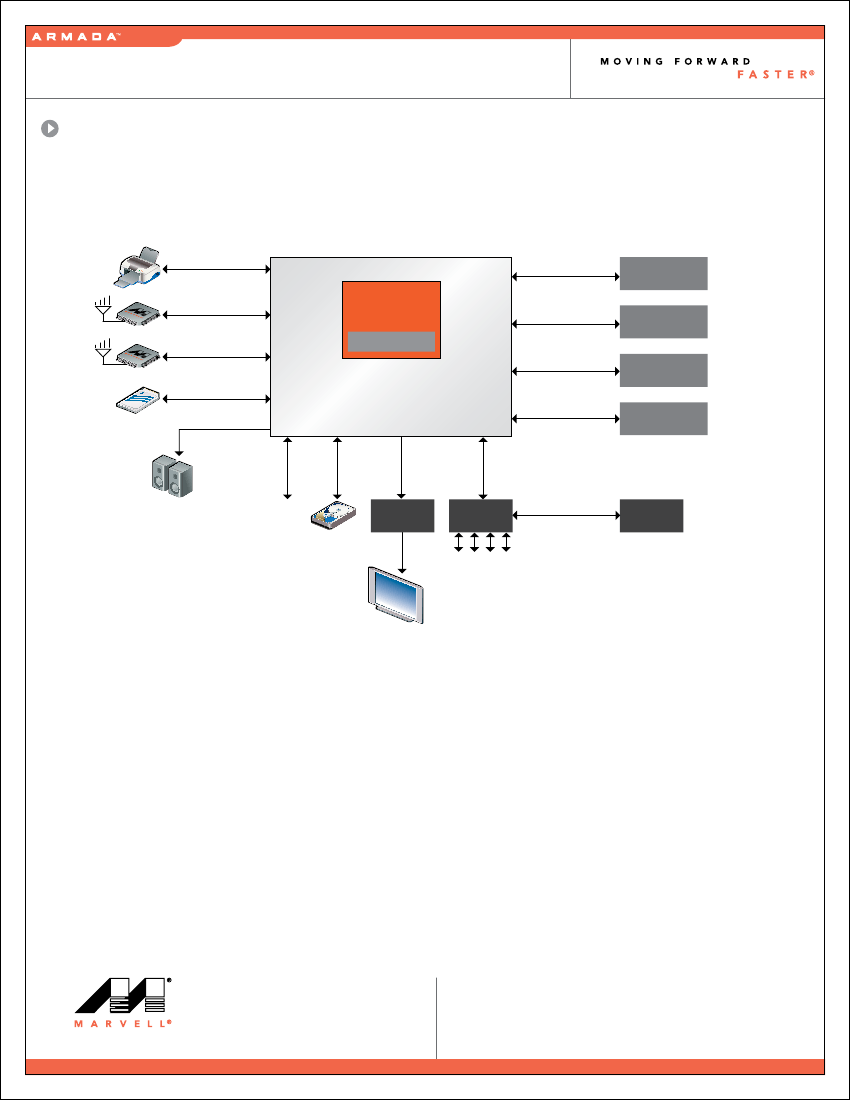

BLOCK DIAGRAM
Sheeva™ CPU Core
Single Issue
16KB-I, 16KB-D
Up to 2.0GHz
256KB L2
LCD
Controller
DDR2/3
Controller
2 x GE
MAC
2 x SATA II
with PHY
USB 2.0
with PHY
2 x PCI-E
System Crossbar
2 x TDM
channels
MPEG_TS
Audio
SDIO/MMC
Security
Engine
4 DMA/
XOR
NAND Ctlr
2 x UART
TWSI, SPI
Fig 1. 88F6282 SoC Block Diagram
