LQH32DZ101K53 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LQH32DZ101K53

Preview

LQH32DZ101K53: DescriptionInductance; File Size71KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Compare View All

LQH32DZ101K53 Overview

Inductance

Preview

Download Datasheet

View All

LQH32DZ101K53#

# indicates a package specification code.

< List of part numbers with package codes >

LQH32DZ101K53L , LQH32DZ101K53K

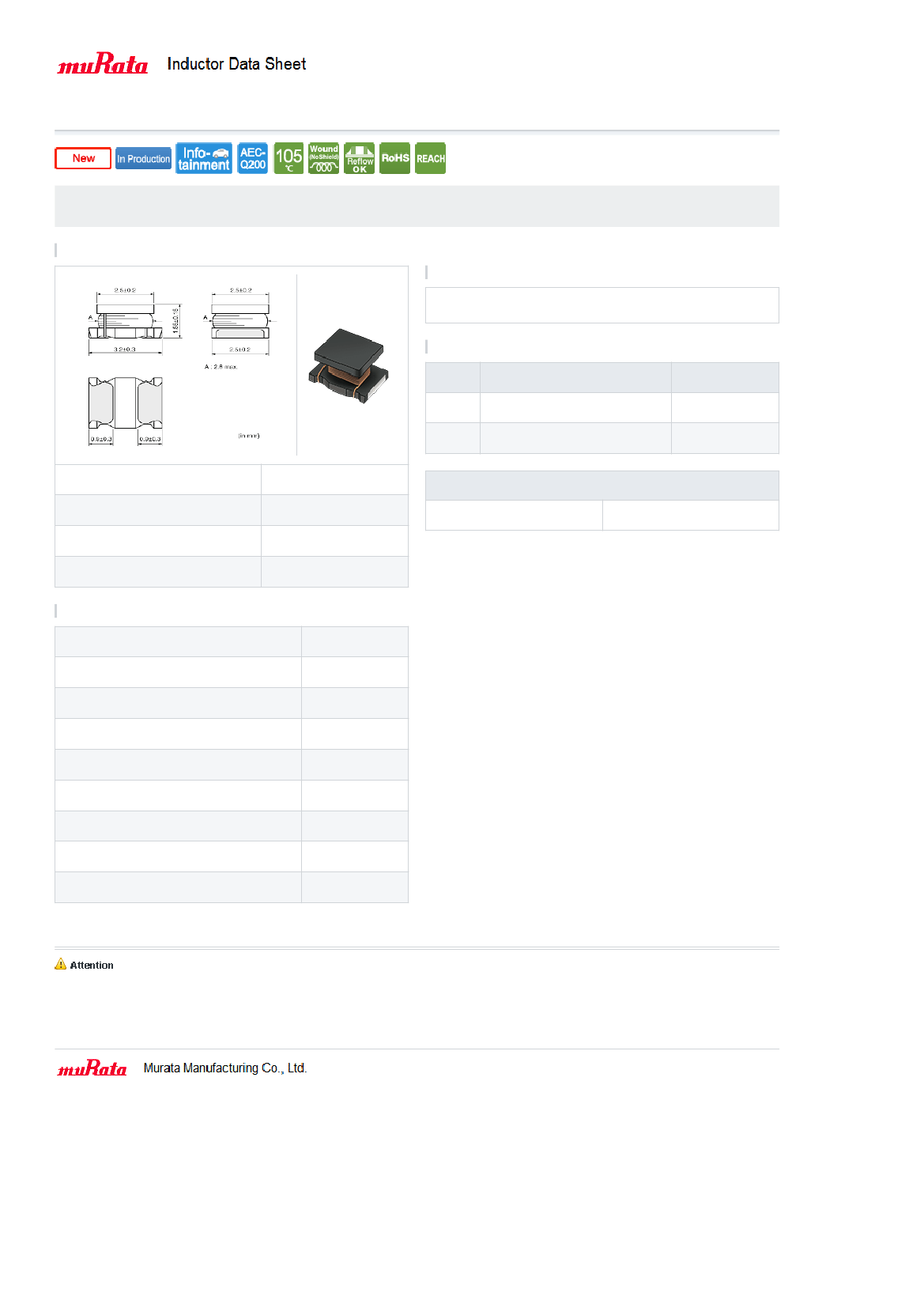

Shape

Notes

When applied Rated current to the Products, self temperature rise shall be limited

to 20°C max and Inductance will be within ±10% of initial Inductance value.

References

Packaging

code

Specifications

φ180mm Embossed taping

φ330mm Embossed taping

Minimum quantity

2000

7500

L size

W size

T size

Size code in inch (mm)

3.2 ±0.3mm

2.5 ±0.2mm

1.55 ±0.15mm

1210 (3225)

Mass (Typ.)

1 piece

0.045g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Avg. of DC resistance

Self resonance frequency (min.)

Operating temperature range

Class of magnetic shield

100µH ±10%

1MHz

100mA

4.55Ω

3.5Ω±30%

10MHz

-40∼105℃

No magnetic shield

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

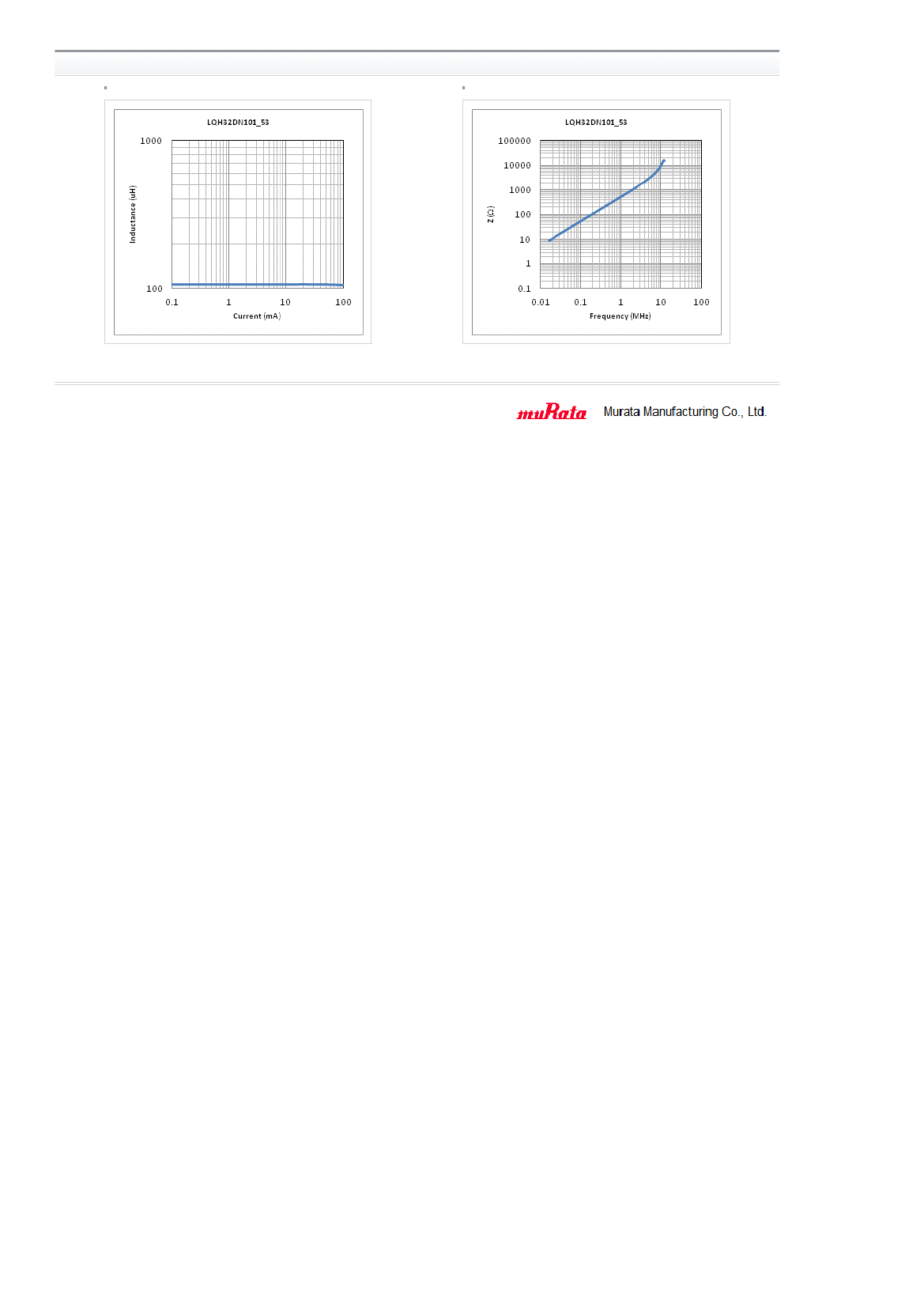

Last updated: 2016/04/21
