3GBJ3508 thru 3GBJ3516
Glass Passivated Three
Phase Bridge Rectifiers
V
RRM
800 to 1600V
I
D
35Amp
Features
Glass Passivated Chips
SIP (Single In-line Package) Module
High Surge Capability
Low Forward Voltage Drop
2500V Isolation ratings
+

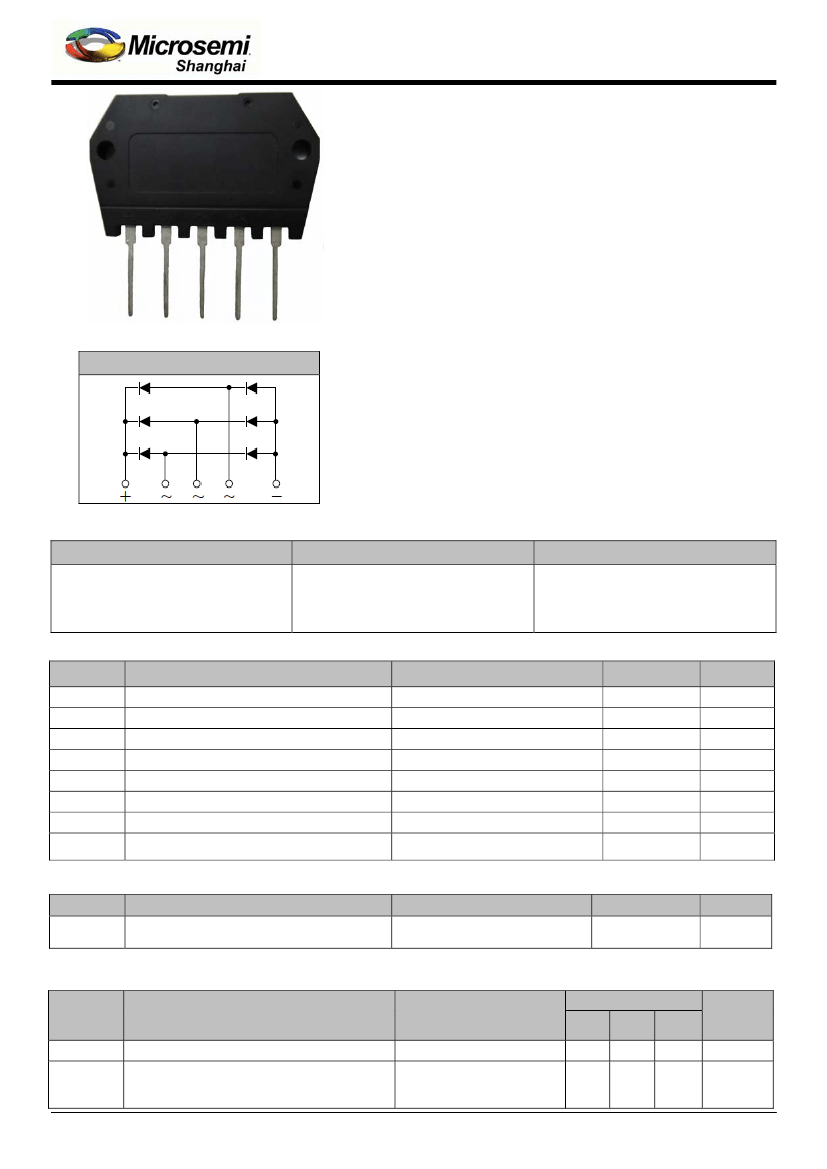

Pin1 Pin2 Pin3
-
Circuit
Applications
Welding and Plasma Cutting Machines
Battery Chargers
Power Supplies
Motor Controls
Home Appliance
Pin1 Pin2 Pin3
Module Type
TYPE
3GBJ3508
3GBJ3512
3GBJ3516
VRRM
800V
1200V
1600V
VRSM
900V
1300V
1700V
Maximum Ratings and Thermal Characteristics
(TA = 25℃ unless otherwise noted)
Symbol
Item
Conditions
Values
I
D
B
B
Units
A
A
I
FSM
i
2
t
Visol
Tvj
Tstg
Weight
Average forward current
Forward surge current, max.
Value for fusing
Isolation Breakdown Voltage(R.M.S)
Operating Junction Temperature
Storage Temperature
Approximate Weight
Mounting Torque
Tc=100℃
t=8.3mS Tvj =45℃
a.c.50HZ;r.m.s.;1min
35
400
660
2500
-40 to +150
-40 to +150
15
A
2
s
V
℃
℃
g
N.m
Recommended Torque 0.5N.m
0.8 max.
Thermal Characteristics
Symbol
Item
R
th(j-c)
Thermal Impedance, max.
Conditions
Junction to case per one bridge
Values
0.7
Units
℃/W
Electrical Characteristics
(TA = 25℃ unless otherwise noted)
Symbol
V
FM
Item
Forward Voltage Drop, max.
Repetitive Peak Reverse Current, max.
Conditions
T=25℃ I
F
=17.5A
T
vj
=25℃ V
RD
=V
RRM
T
vj
=150℃ V
RD
=V
RRM
1
Values
Min.
Typ.
Max.
1.2
10
5
Units
V
uA
mA
I
RRM
Document Number: 3GBJ3508 thru 3GBJ3516
Oct.20,2014
www.smsemi.com
3GBJ3508 thru 3GBJ3516

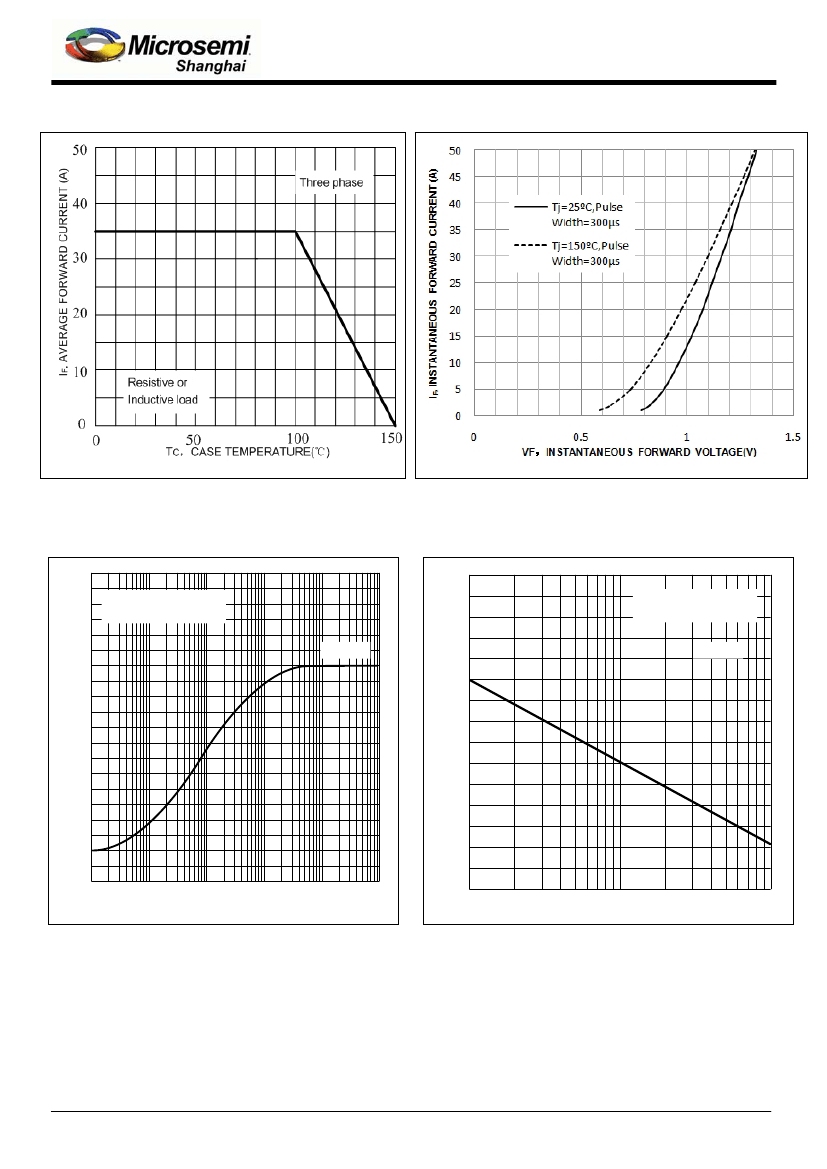

Performance Curves
Fig1.Output Current vs. Allowable Case Temperature
1.0
R
thjc
, TRANSIENT THERMAL IMPEDANCE(℃/ W)
Junction to case
per one module
Rth(j-c)
I
FSM
, PDAK FWD SURGE CURRENT (A)
Fig2. Forward Voltage Characteristics
600
Single half-sine-wave
(JEDEC method)
Tj=25ºC
400
0.5
200
0
0.001
0.01
0.1
1.0
10
SQUARE WAVE PULSE DURATION (S)
100
0
1
10
NUMBER OF CYCLES AT 60Hz
100
Fig3. Transient thermal impedance
Fig4. Max Non-Repetitive Forward Surge
Current
Document Number: 3GBJ3508 thru 3GBJ3516
Oct.20,2014
www.smsemi.com

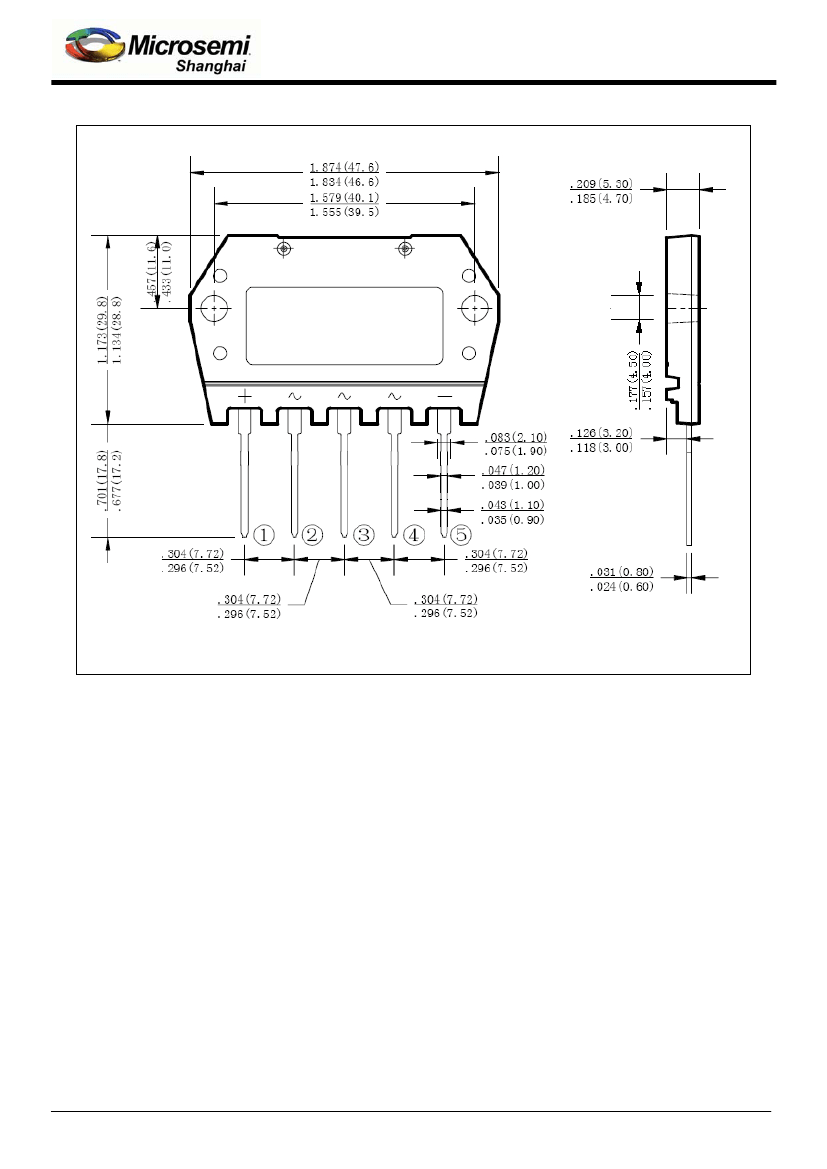

2
