SCGB3216S500KTF

Description
Chip Ferrite Bead
File Size236KB,7 Pages
ManufacturerSOCAY
Websitehttp://www.socay.com
Download Datasheet View All

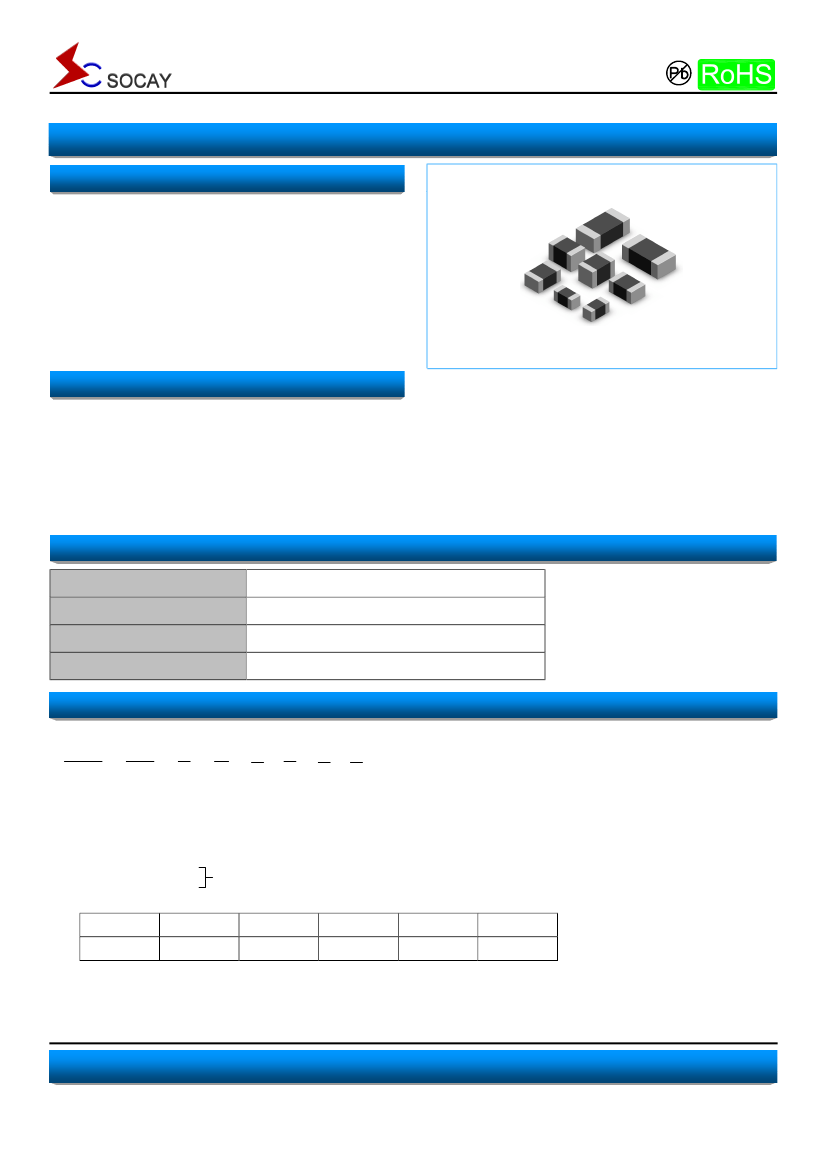

SCGB3216S500KTF Overview

Chip Ferrite Bead

Chip Ferrite Bead
SCGB-S Series
Features
u
u
u
u
u
u
u
Monolithic inorganic material construction
Closed magnetic circuit avoids crosstalk
SMD Type & suitable for reflow and wave soldering
Available in various sizes
Excellent solderability and heat resistance
High reliability
Effectively filtering capability over a wide range of
frequency
Applications
Filtering between analog and digital circuitry, clock generation
circuitry, I/O interconnects, isolation between RF noisy circuits
and logic devices susceptible to functional degradation, power
supply filtering to prevent conducted RF energy from corrupting
the power generation circuitry, high frequency EMI prevention
of computer, printers, VCRs, TVs and portable telephones.
General Technical Data
Operating temperature range
Storage Condition
Storage Time

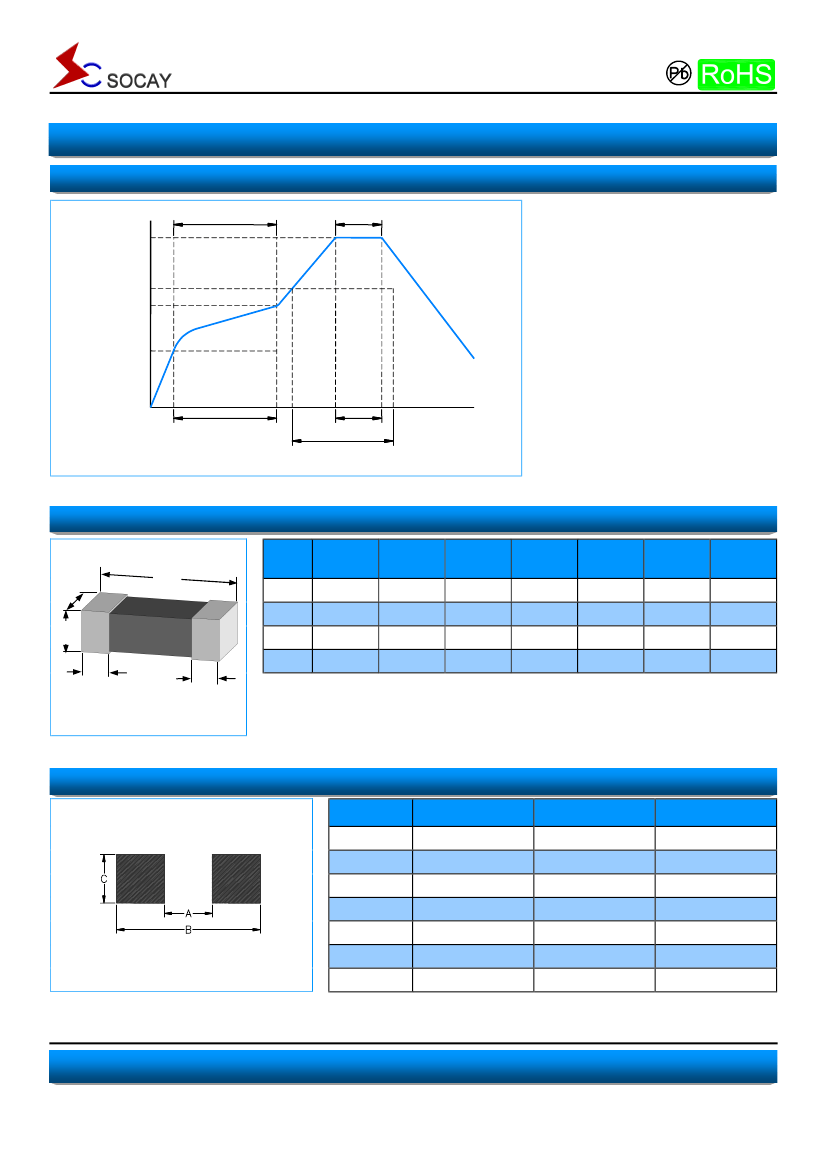

Soldering method
-40 ~ +125ºC
Less than 40℃ and 70% RH
6 months(Size:1005), 12 months(Size:1608 above)
Reflow or Wave Soldering
Part Numbering
SCGB
(1)
1
2
3
4
5
6
1608
(2)
S
(3)
60
(4)
1
(5)
E
(6)
P
(7)
F
(8)
Series Name
Size Code: the first two digitals : length(mm), the last two digitals : width(mm)
Material Code
Impedance(Ω),
±25%
Fixed Decimal Point
Rated Current Cod
A=50mA
G=400mA
B=80mA
H=500mA
C=100mA
I=600mA
D=150mA
J=700mA
E=200mA
K=800mA
F=300mA
e.g.: 600=60
Ω,
121=120Ω
7
8
Packaging: P - Embossed paper tape, 7" reel
T - Embossed plastic tape, 7" reel
Soldering : Green Parts: S- Soldering Lead-Free
F- Lead-Free for whole chip
SOCAY Electronics Co., Ltd.
Revision February 13, 2014
www.socay.com
1/7
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
