CHDELSS1.22-S1T2-35-0-20-R18 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CHDELSS1.22-S1T2-35-0-20-R18

CHDELSS1.22-S1T2-35-0-20-R18: DescriptionSingle Color LED,; CategoryLED optoelectronic/LED photoelectric; File Size1MB，23 Pages; ManufacturerOSRAM Opto Semiconductors Inc.; Environmental Compliance

Download Datasheet Parametric View All

CHDELSS1.22-S1T2-35-0-20-R18 Overview

Single Color LED,

CHDELSS1.22-S1T2-35-0-20-R18 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7371874181
Reach Compliance Code	compliant
color	HYPER RED
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.4 V
Lens type	COLORLESS CLEAR
minimum luminous intensity	0.18 cd
Nominal luminous intensity	315.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.6 mm
method of packing	TR, 7 INCH
peak wavelength	660 nm
Maximum reverse voltage	12 V
shape	RECTANGULAR
size	1.23 mm
surface mount	YES
Terminal pitch	1.12 mm
perspective	120 deg

Preview

Download Datasheet

View All

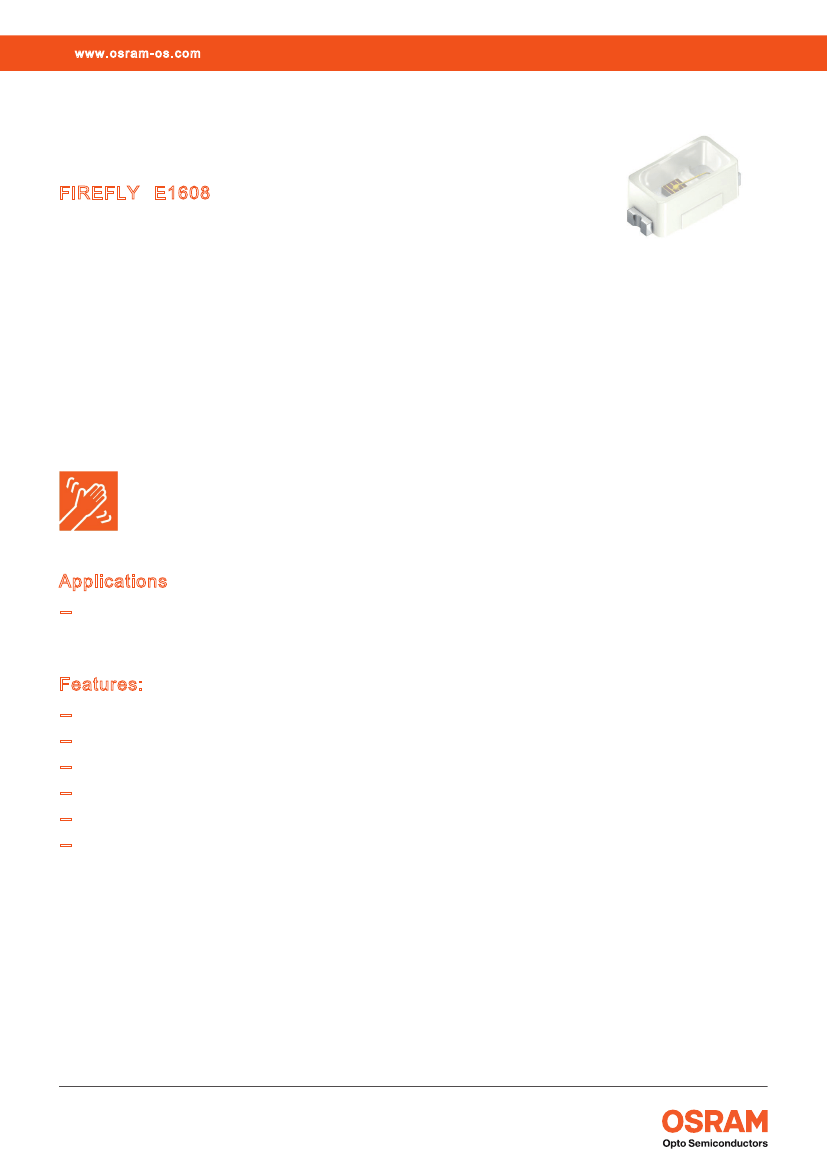

Produktdatenblatt | Version 1.1

CH DELSS1.22

www.osram-os.com

CH DELSS1.22

FIREFLY

E1608

The FIREFLY E1608 family expands OSRAM Opto

Semiconductors’ portfolio of visible products for

use in mobile devices like fitness tracking or health

monitoring.

It offers one of the smallest LED footprints in a highly

reliable and proven package. The compact size of

only 0.8 mm x 1.6 mm x 0.6 mm allows customers

the benefit of more flexible product designs. The

hyper red CH DELSS1.22 is specially designed

for SPO2 applications. It features a special narrow

wavelength of 660 nm to improve signal detection,

that is ideally matched to these applications.

Applications

—

Health monitoring (Heart rate monitoring, pulse

oximetry)

Features:

—

Package: white SMT package, colorless clear resin

—

Chip technology: Thinfilm

—

Typ. Radiation: 120° (Lambertian emitter)

—

Color:

centroid

= 657 nm (●

hyper red)

—

Corrosion Robustness Class: 1B

—

ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

Version 1.3

| 2018-06-19
