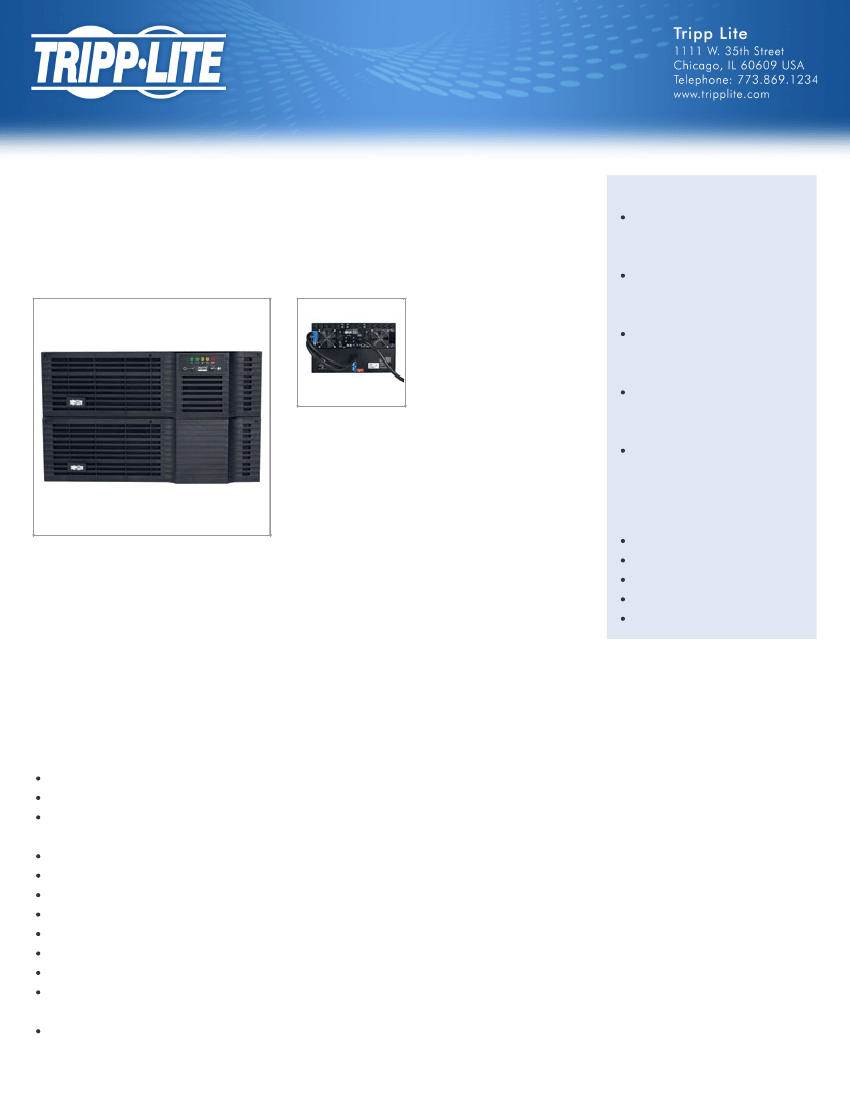

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications
equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. In rack
configuration, the power module and battery pack occupy only 3 rack spaces (3U) each. Large capacity
5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and
low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can
be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical
equipment. Battery support can be extended indefinitely with additional external 3U rackmount battery packs. Includes slot for internal SNMP/web card, plus
two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data.
Features
Large 5000VA/4000W output capacity with full-time sine wave output offers guaranteed compatibility with all equipment types
High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack require 6U total installed)
38 min. half load runtime, expandable with multiple external battery packs BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and
BP48V27-2US (multi-pack compatible)
Line-interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
Dual voltage output is simultaneously compatible with both 208V and 120V equipment
14 total outlets (120V: 10 x 5-15R, 2 x 5-20R/208V: 1 x L6-30R, 1 x L14-30R)
Diagnostic LEDs provide visual indication of 17 separate performance conditions
Included PowerAlert Software provides e-mail notification of power problems and simultaneous automatic unattended shutdown of multiple servers
4 built-in communications ports (2 x DB9, 2 x USB) for remote monitoring and unattended shutdown
Slot for SNMP/web card (part# SNMPWEBCARD) and environmental sensor (part# ENVIROSENSE) for remote communications in large IP environments
8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or
perform "load shedding" of less critical loads to extend battery runtime for the most critical equipment
Emergency Power Off (EPO) interface for emergency shutoff in large facilities
1/5
Hot-swappable/user replaceable external battery pack(s) allow on-site battery replacement without powering off connected equipment or removing the
UPS from the rack
UPS external battery pack ships fully assembled and ready for connection to the power module, no time consuming, connection of individual internal
batteries by user is necessary
Specifications
OUTPUT
Output Capacity Details
Output Volt Amp Capacity (VA)
Output kVA Capacity (kVA)
Output Watt Capacity (Watts)
Output kW Capacity (kW)
Power Factor
Nominal Output Voltage(s)
Supported
Frequency Compatibility
Output Voltage Regulation (Line
Mode)
Output Voltage Regulation (Battery
Mode)
Output Receptacles
Load Management Receptacles
Output Circuit Breakers
Output AC Waveform (AC Mode)
Output AC Waveform (Battery Mode)
Supports 4800 watts maximum with user supplied 50A input plug or hardwire input connection
5000
5
4000
4
0.8
120V; 208V
60 Hz
208 & 120V (-10%, +20%)
+/- 5%
(10) 5-15R; (2) 5-15/20R; (1) L14-30R; (1) L6-30R
Eight switchable single-outlet 5-15R load banks
15A branch rated (x3) - 2 breakers support 5 5-15R outlets each, one breaker supports 2 5-20R outlets, L6-30R and
L14-30R outlets are unbreakered
Sine wave
Pure Sine wave
INPUT
Rated input current (Maximum Load)
Nominal Input Voltage(s) Supported
UPS Input Connection Type
Input Circuit Breakers
UPS Input Cord Length (ft.)
UPS Input Cord Length (m)
Recommended Electrical Service
Input Phase
24A max. in factory L6-30P configuration; 27A max. when powered by 50A plug or hardwire input
208V AC
L6-30P
30A double-pole
10
3
30A 208V
Single-Phase
2/5
BATTERY
Full Load Runtime (min.)
Half Load Runtime (min.)
Expandable Battery Runtime
External Battery Pack Compatibility
DC System Voltage (VDC)
Battery Recharge Rate (Included
Batteries)
Battery Replacement Description
16 min. (4000w)
38 min. (2000w)
Extended runtime supported via optional external battery packs
BP48V24-2U
(limit 1);
BP48V60RT-3U
(multi-pack compatible);
BP48V27-2US
(multi-pack compatible)
48
Less than 4 hours from 10% to 90% (typical, full load discharge)
Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage Regulation Description
Overvoltage Correction
Undervoltage Correction
Severe Undervoltage Correction
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282
Input voltages between 240V and 260 are reduced by 12%
Input voltages between 180V and 199 are boosted by 12%
Input voltages between 151V and 179 are boosted by 24%
USER INTERFACE, ALERTS & CONTROLS
Switches
Alarm Cancel Operation
Audible Alarm
LED Indicators
2 Switches control off/on power status and alarm-cancel/self-test operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate
low-battery status
Audible alarm indicates power-failure, overload and low-battery conditions
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
SURGE / NOISE SUPPRESSION
UPS AC Suppression Joule Rating
UPS AC Suppression Response
Time
EMI / RFI AC Noise Suppression
1020
Instantaneous
Yes
PHYSICAL
Installation Form Factors Supported
with Included Accessories
Included Mounting Accessory
Description
Installation Form Factors Supported
with Optional Accessories
Optional Mounting Accessory Notes
Primary Form Factor
4 post 19 inch rackmount
2 sets of 4 post rackmount installation accessories for included UPS and battery pack components
2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)
2 sets of
2POSTRMKITHD
required for 2 post rackmount installation of separate power module and battery pack;
2-9USTAND
tower kit included (supports up to 9U in tower format)
Rackmount
3/5
UPS Power Module Dimensions
(hwd, in.)
UPS Power Module Dimensions
(hwd, cm)
Installed Whole System Maximum
Rack Depth (in.)
Installed Whole System Maximum
Rack Depth (cm)
Rack Height (U Spaces)
UPS Power Module Weight (lbs.)
UPS Power Module Weight (kg)
UPS Dimensions Details
Included Battery Pack Dimensions
(hwd / in.)
Included Battery Pack Dimensions
(hwd / cm)
Included Battery Pack Weight (lbs.)
Included Battery Pack Weight (kg)
UPS Shipping Dimensions (hwd / in.)
UPS Shipping Dimensions (hwd /
cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Cooling Method
UPS Housing Material
5.2 x 17.5 x 22.5
13.3 x 44.4 x 57.2
22.8
57.8
6
93
42
Includes 3U power module and 3U external battery pack
5.2 x 17.5 x 25
13.3 x 44.4 x 63.5
163
73.4
24.5 x 24 x 34
62.2 x 61 x 86.4
321.6
144.7
Fans
Steel
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
AC Mode BTU / Hr. (Full Load)
AC Mode Efficiency Rating (100%
Load)
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
0 to 95%, non-condensing
868.1
94%
COMMUNICATIONS
Communications Interface
Network Monitoring Port Description
PowerAlert Software
Communications Cable
USB; DB9 Serial; Contact closure
Supports detailed monitoring of UPS and site power conditions; 2 USB ports, 1 DB9 serial and 1 DB9 contact
closure port (4 total)
Included
USB and DB9 cabling included
4/5
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer Time
Low Voltage Transfer to Battery
Power (Setpoint)
High Voltage Transfer to Battery
Power (Setpoint)
2-4 milliseconds
151
260
SPECIAL FEATURES
Grounding Lug
Cold Start (Startup in Battery Mode
During a Power Failure)
High Availability UPS Features
Green Energy-Saving Features
Back panel grounding lug
Cold-start operation supported
Hot swappable batteries
Individually controllable load banks
CERTIFICATIONS
UPS Certifications
Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada);
