3292X-1-253M: DescriptionTrimmer, Cermet, 0.5W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3815, 3/8 INCH, SQUARE, 3 PINS; CategoryPassive components The resistor; File Size287KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

3292X-1-253M Overview

Trimmer, Cermet, 0.5W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3815, 3/8 INCH, SQUARE, 3 PINS

3292X-1-253M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1277320198
package instruction	Panel Mount,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Multi-Turn
gang number	1
JESD-609 code	e0
Lead diameter	0.51 mm
Lead length	8.26 mm
Installation features	PANEL MOUNT
Number of terminals	3
number of turns	25
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	9.53 mm
Package length	9.53 mm
Package shape	RECTANGULAR PACKAGE
Package form	Panel Mount
Package width	3.81 mm
method of packing	TUBE
Rated power dissipation(P)	0.5 W
Rated temperature	85 °C
resistance	25000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	9000 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	400 V

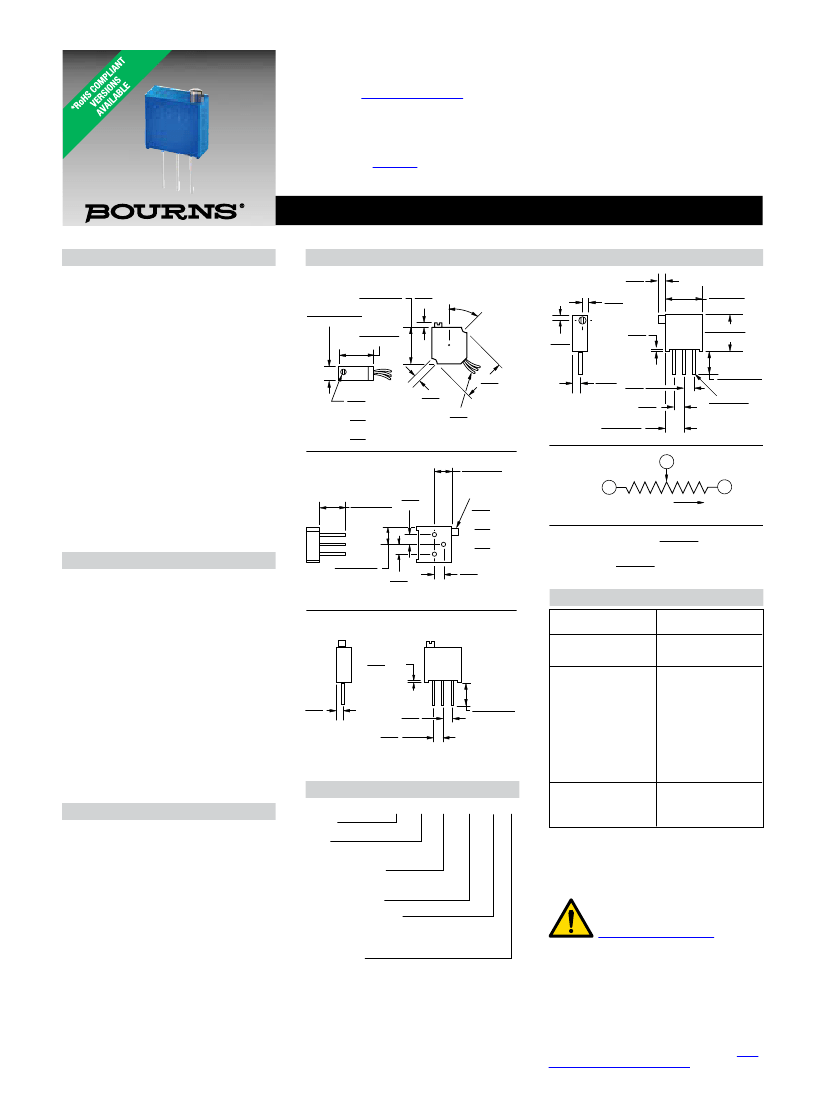

Preview

Download Datasheet

View All

8.26 ±.635

(.325 ±.025)

(.100)

Features

Multiturn / Cermet / Industrial / Sealed

Optional

panel mount available

Thin body profile

RoHS compliant* version available

For trimmer applications/processing

3292W

4.75 ±.51**

(.187 ±.020)

2.54

(.100)

2.29 DIA.

(.090)

.56

WIDE

(.022)

.76

DEEP**

(.030)

2.54

(.100)

guidelines,

click here

.254

MIN.

(.010)

1 2 3

Electrical Characteristics

Standard Resistance Range

................................. 10 to 1 megohm

(see standard resistance table)

Resistance Tolerance ........... ±10 % std.

(tighter tolerance available)

Absolute Minimum Resistance

........................... 1 % or 2 ohms max.

(whichever is greater)

Contact Resistance Variation

........................ 1.0 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage .................................. ±0.01 %

Resistance ............................ ±0.05 %

Resolution ................................... Infinite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level................................ 900 vac

80,000 Feet ............................ 350 vac

Effective Travel .................25 turns nom.

Environmental Characteristics

Power Rating (400 volts max.)

85 °C ...................................... 0.5 watt

150 °C ....................................... 0 watt

Temperature Range ... -65 °C to +150 °C

Temperature Coefficient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

(pin styles only)

Humidity .......MIL-STD-202 Method 103

96 hours (1 %

ΔTR,

100 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life ..1,000 hours 0.5 watt @ 85 °C

(2 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life .......................200 cycles

(2 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Physical Characteristics

Torque............................. 5.0 oz-in. max.

Mechanical Stops ................. Wiper idles

Terminals Solderable printed circuit pins

Weight ..................................... 0.025 oz.

Machine Screw Mounting

Torque.............................. 12 oz-in. max.

Marking.........Manufacturer’s trademark,

resistance code, wiring diagram,

date code, manufacturer’s model

number and style

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging

P, W & X Styles ..........50 pcs. per tube

L Style ........................50 pcs. per bag

Adjustment Tool..............................H-90

1.91

3292 - 3/8 ˝ Square Trimpot

Trimming Potentiometer

2.54

(.075)

2.54

(.100)

3292X

45 ±3°

(.100)

8.26 ±.635**

(.325 ±.025)

3292L

Common Dimensions

9.53 ±.38

(.375 ±.015)

3.81 + .25/-.13**

(.150 +.010/-.005)

9.53 ±.38

(.375 ±.015)

Product Dimensions

1.02

(.040)

1.52**

(.060)

1.02**

(.040)

2.54

(.010)

MIN.**

9.53 ±.38

TYP.**

(.375 ±.015)

9.53 ±.38

TYP.**

(.375 ±.015)

1.27**

(.050)

10.64

(.419)

3 2

ADJ. SLOT

1.52 DIA.

(.060)

.51

WIDE

(.020)

.64

DEEP

(.025)

3292P

1.57

(.062)

MIN.

1.91**

(.075)

152.4

(6.00)

MIN. LENGTH

WIRE SIZE: 30AWG

2.54

(.100)

2.54

(.100)

4.75 ±.51**

(.187 ±.020)

RED

8.26 ±.635**

(.325 ±.025)

.51 ±.03

(.020 ±.001)

DIA. TYP.

4.75 ±.51

(.187 ±.020)

8.26 ±.635

(.325 ±.025)

2.54

(.100)

4.75 ±.51**

(.187 ±.020)

2.54

(.100)

ADJ. SLOT

2.29 DIA.

(.090)

.56

WIDE

(.022)

.76

DEEP**

(.030)

WIPER

YELLOW

CCW

CLOCKWISE

GREEN

DIMENSIONS:

TOLERANCES: ±

0.25

(.010)

(INCHES)

EXCEPT WHERE NOTED

2.54

(.100)

Standard Resistance Table

Resistance

(Ohms)

100

200

500

1,000

2,000

5,000

10,000

20,000

25,000

50,000

100,000

200,000

250,000

500,000

1,000,000

Resistance

Code

100

200

500

101

201

501

102

202

502

103

203

253

503

104

204

254

504

105

3292W

.254

MIN.

(.010)

1 2 3

1.91

(.075)

2.54

(.100)

3292X

2.54

(.100)

8.26 ±.635**

(.325 ±.025)

**Common dimensions

How To

Model

1.52**

(.060)

Order

1.02**

(.040)

3292 W - 1 - 103 M LF

3 2

9.53 ±.38

TYP.**

(.375 ±.015)

1.27**

Style

(.050)

2.54

(.010)

MIN.**

9.53 ±.38

TYP.**

(.375 ±.015)

Standard or Modified

1.91**

Product Indicator

2.54

(.075)

Product

-1 = Standard

(.100)

Resistance Code

2.54

(.100)

4.75

Letter

Suffix

±.51**

(.187 ±.020)

Popular values listed in boldface. Special

resistances available.

8.26 ±.635**

(.325 ±.025)

.51 ±.03

(.020 ±.001)

DIA. TYP.

Optional

M = Panel Mount Model 3292L, W & X

(Factory Installed)

WARNING Cancer and

Reproductive Harm

REV. 08/19

www.P65Warnings.ca.gov

Terminations

LF =

100 % Tin-plated (RoHS compliant)

Blank = 90 % Tin / 10 % Lead-plated

(Standard)

Consult factory for other available options.

*RoHS Directive 2015/863, Mar. 31, 2015 and Annex

“Trimpot” is a trademark of Bourns, Inc.

†“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice.

Users should verify actual device performance in their

specific applications. The products described herein and

this document are subject to specific legal disclaimers as

set forth on the last page of this document, and at

www.

bourns.com/docs/legal/disclaimer.pdf.

3292X-1-253M Related Products

	3292X-1-253M	3292X-1-253MLF
Description	Trimmer, Cermet, 0.5W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3815, 3/8 INCH, SQUARE, 3 PINS	Trimmer, Cermet, 0.5W, 25000ohm, 10% +/-Tol, -100,100ppm/Cel, 25 Turn(s), 3815, 3/8 INCH, SQUARE, 3 PINS, ROHS COMPLIANT
Is it Rohs certified?	incompatible	conform to
Objectid	1277320198	1277320197
package instruction	Panel Mount,	Panel Mount,
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Actuator direction	HORIZONTAL	HORIZONTAL
Actuator type	SCREW	SCREW
structure	Multi-Turn	Multi-Turn
gang number	1	1
JESD-609 code	e0	e3
Lead diameter	0.51 mm	0.51 mm
Lead length	8.26 mm	8.26 mm
Installation features	PANEL MOUNT	PANEL MOUNT
Number of terminals	3	3
number of turns	25	25
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Package height	9.53 mm	9.53 mm
Package length	9.53 mm	9.53 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	Panel Mount	Panel Mount
Package width	3.81 mm	3.81 mm
method of packing	TUBE	TUBE
Rated power dissipation(P)	0.5 W	0.5 W
Rated temperature	85 °C	85 °C
resistance	25000 Ω	25000 Ω
resistance law	LINEAR	LINEAR
Resistor type	TRIMMER	TRIMMER
rotation angle	9000 deg	9000 deg
surface mount	NO	NO
technology	CERMET	CERMET
Temperature Coefficient	100 ppm/°C	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Terminal shape	WIRE	WIRE
Tolerance	10%	10%
Operating Voltage	400 V	400 V
