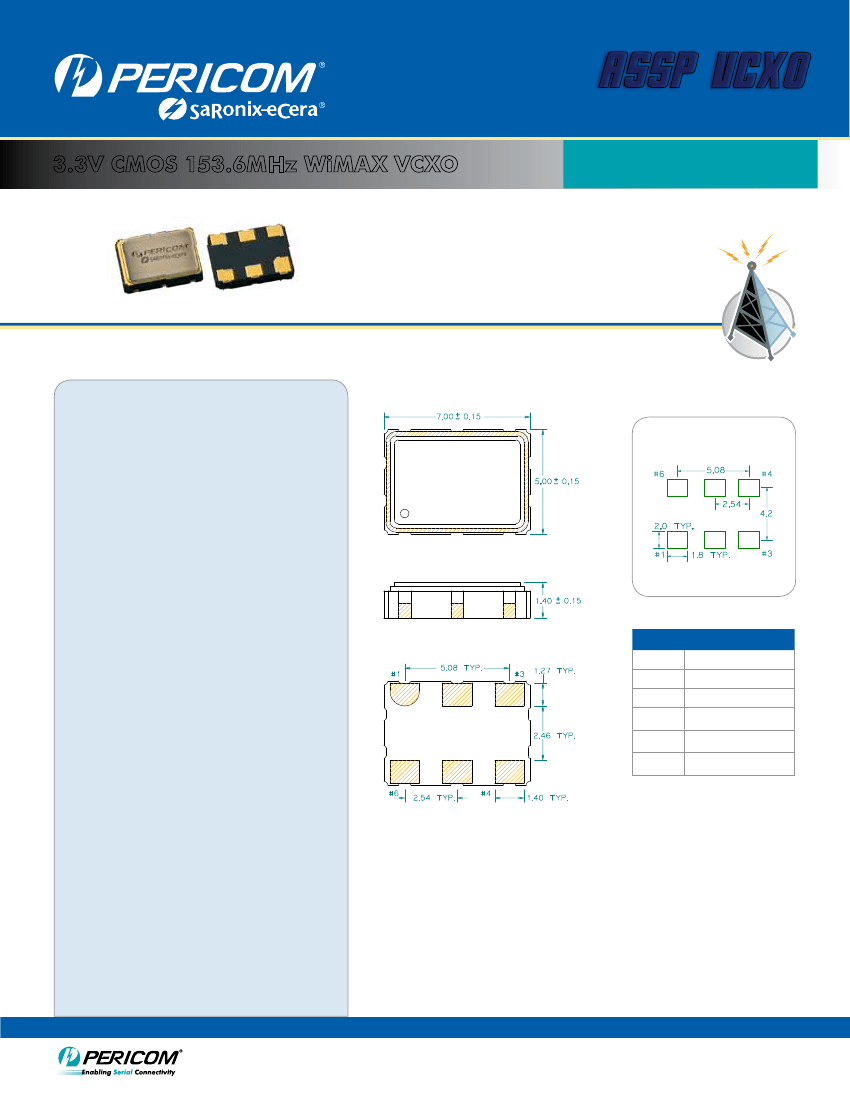

Application Specific Voltage Controlled
Crystal Oscillator 7.0 x 5.0mm
ASSP VCXO
3.3V CMOS 153.6MHz WiMAX VCXO
YNWMAX153
7.0 x 5.0mm Ceramic SMD
ASSP VCXO™
for WiMAX
Package:
(Scale: none, Dimensions are in mm)
Product Features
• Very low Pk to Pk jitter - 40ps Max
•
Low supply current - 30mA Max
•
Low power standby mode
•
RoHS Compliant
Recommended Land Pattern:
Product Description
This is an enhanced 3.3V, 153.6MHz
with superb jitter and low operating current
for providing clock references in telecom
applications.
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
Pin Functions:
Pin
Function
1
Control Voltage
Enable/Disable
Ground
Output
N/C
V
DD
Applications
•
E1
• CEPT1(x8)
•
Modems
2
3
4
5
6
CREATED USING CADSTD LITE FREEWARE FROM WWW.CADSTD.COM. NON-COMMERCIAL USE ONLY.
*Extended high frequency power decoupling is recommended (see test circuit for minimum
recommendation). To ensure optimal performance, do not route RF traces beneath the
package.
YNWMAX153
Part Ordering Information:
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
12-0054
•
www.pericom.com
07/13/12
1
All specifications are subject to change without notice.
YNWMAX153
Rev B
3.3V CMOS 153.6 MHz WiMAX VCXO
YNWMAX153
Application Specific Voltage Controlled
Crystal Oscillator 7.0 x 5.0mm
Electrical Performance
Parameter
Output Frequency
Supply Voltage V
DD
Supply Current, Output Enabled
Frequency Stability
Operating Temperature Range
Output Logic 0, V
OL
Output Logic 1, V
OH
Output Load
Duty Cycle
Rise and Fall Time
Jitter, Phase RMS(1-s)
Jitter, Peak to Peak (Pk-Pk)
Phase Noise
Phase Noise
Phase Noise
Phase Noise
-65
-90
-120
-135
45
90% V
DD
15
55
5
1
40
-55/-40
-85/ -70
-115/-100
-133/-130
-40
Min.
Typ.
153.6
3.3
Max.
Units
MHz
V
mA
ppm
°C
V
V
pF
%
ns
ps
ps
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Measured 50% V
DD
Measured 20/80% of waveform
12kHz~20 MHz Frequency Band
100.000 Random Periods
Typ./Max. at 10Hz offset
Typ./Max. at 100Hz offset
Typ./Max. at 1kHz offset
Typ./Max. at 10kHz offset
See Note 1 below
Notes
ASSP VCXO
3.135
3.465
30
±35
+85
10% V
DD
Notes:
1.
Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration tolerance (25°C),
aging (10 years at +40°C average effective ambient temperature), shock and vibration.
2. For specifications other than those listed, please contact sales.
Voltage Control Function
Parameter
Pullability
Control Voltage Range
Center Control Voltage
Monotonic Linearity
Input Impedance
130
Min.
±75
0.3
1.65
10
Typ.
Max.
±110
3.0
Units
ppm
V
V
%
kΩ
As rated
For RMT Nominal Frequency
Positive Transfer Slope
Control Voltage Pin
Notes
Output Enable / Disable Function
Parameter
Input Voltage (pin 2), Output Enable
Input Voltage (pin 2), Output Disable (low power standby)
Min.
3.0
0.3
Typ.
Max.
Units
V
V
Notes
or open
Output is Hi-Z
Absolute Maximum Ratings
Parameter
Storage Temperature
Min.
-55
Typ.
Max.
+125
Units
°C
Notes
For the latest product information visit:
http://www.pericom.com/products/crystals-and-crystal-oscillators/assp-xo/?part=YNWMAX153
For test circuit go to:
http://www.pericom.com/pdf/sre/tc_vc6cmos.pdf
For soldering reflow profile and reliability test ratings go to:
http://www.pericom.com/pdf/sre/reflow.pdf
For tape and reel information go to:
http://www.pericom.com/pdf/sre/tr_7050_xo.pdf
SaRonix-eCera™ is a Pericom® Semiconductor company
•
US: +1-408-435-0800 TW: +886-3-4518888
12-0054
•
www.pericom.com
07/13/12
2
All specifications are subject to change without notice.
YNWMAX153
Rev B
