BB2-558-S430-55/2

Description
Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size140KB,1 Pages
ManufacturerE-tec Interconnect Ltd.
Environmental Compliance
Download Datasheet Parametric View All

BB2-558-S430-55/2 Overview

Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Plug

BB2-558-S430-55/2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304749857
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.181 inch
subject depth0.169 inch
body length2.307 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
JESD-609 codee4
Manufacturer's serial numberBB2
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.0038 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts58

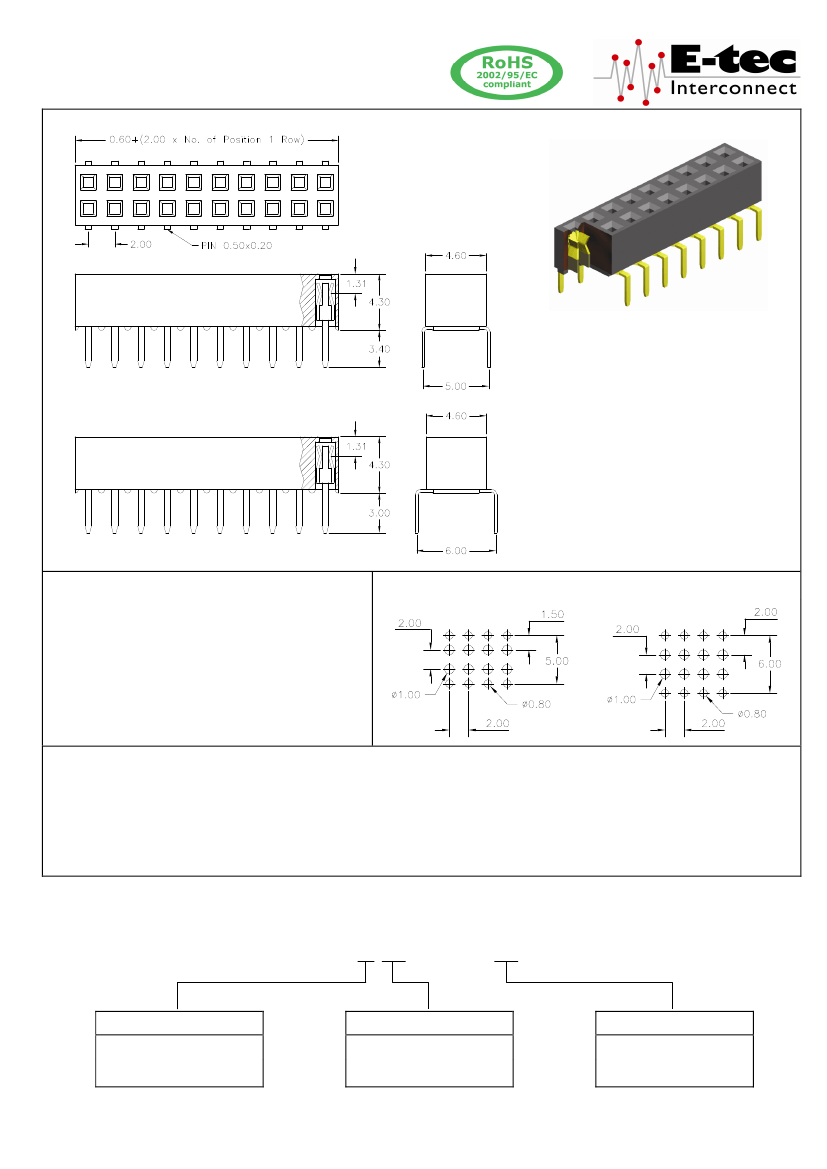

2.00mm pitch Female Header
- THT -
Dual Entry Type
SPECIFICATIONS
Current rating
Insulator resistance
Contact resistance
Withstanding voltage
Operating temperature
Contact material
(RoHS compliant)
PCB Hole Layout
1A
1000 MΩ min.
20 mΩ max.
500 V AC
- 40°C to +105°C
Phosphor Bronze
Nylon
UL 94 V-0
Insulator material
(RoHS compliant)
APPLICATION
AND
FEATURES
Dual entry low profile 4.30mm height
Designed for parallel and vertical board stacking
Dual-beam folded contact and low insertion force, mating with 0.50 x 0.50mm Pin Header
How to order
BB2 - x xx - S430 -
55
/2
Pin spacing
Nbr of contacts
Plating
5
6
52
=
=
5.00 mm
6.00 mm
04
to
80
55
=
gold
Other platings on request
