953-01-10-90 datasheet, PDF - EEWORLD Datasheet

953-01-10-90: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size520KB，7 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

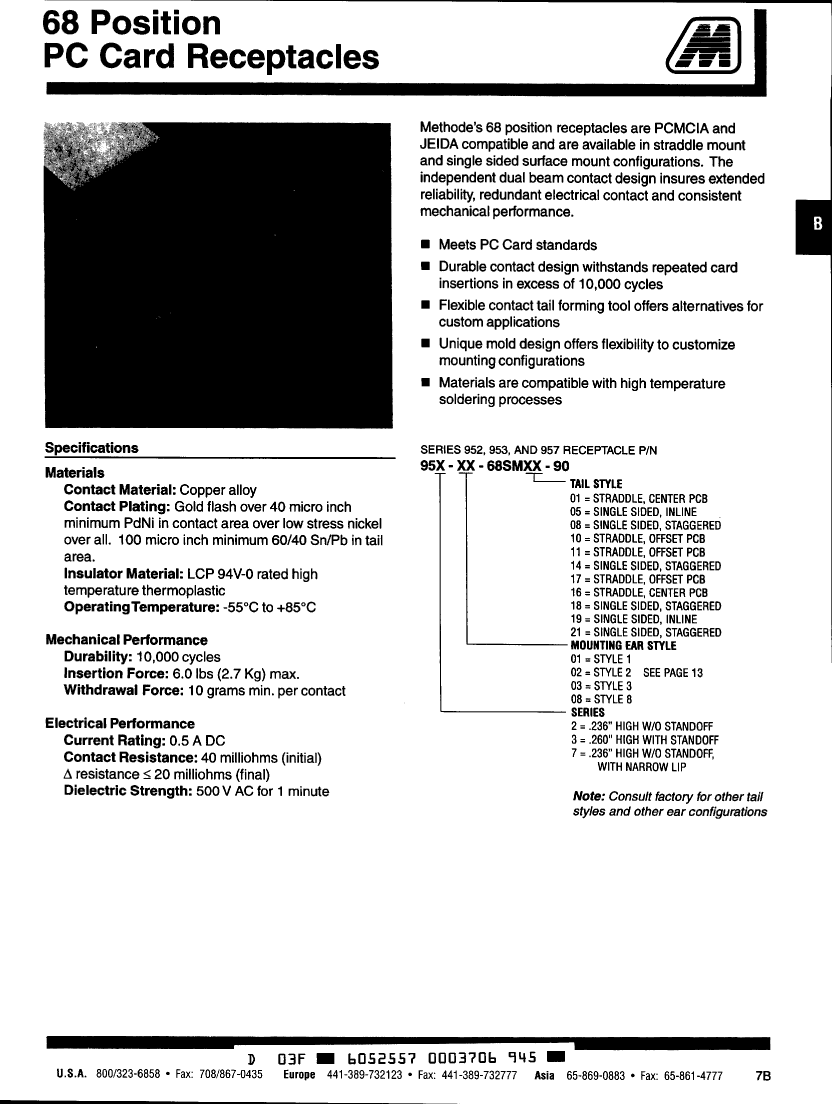

953-01-10-90 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

Parameter Name	Attribute value
Objectid	301996425
Reach Compliance Code	unknown
ECCN code	EAR99

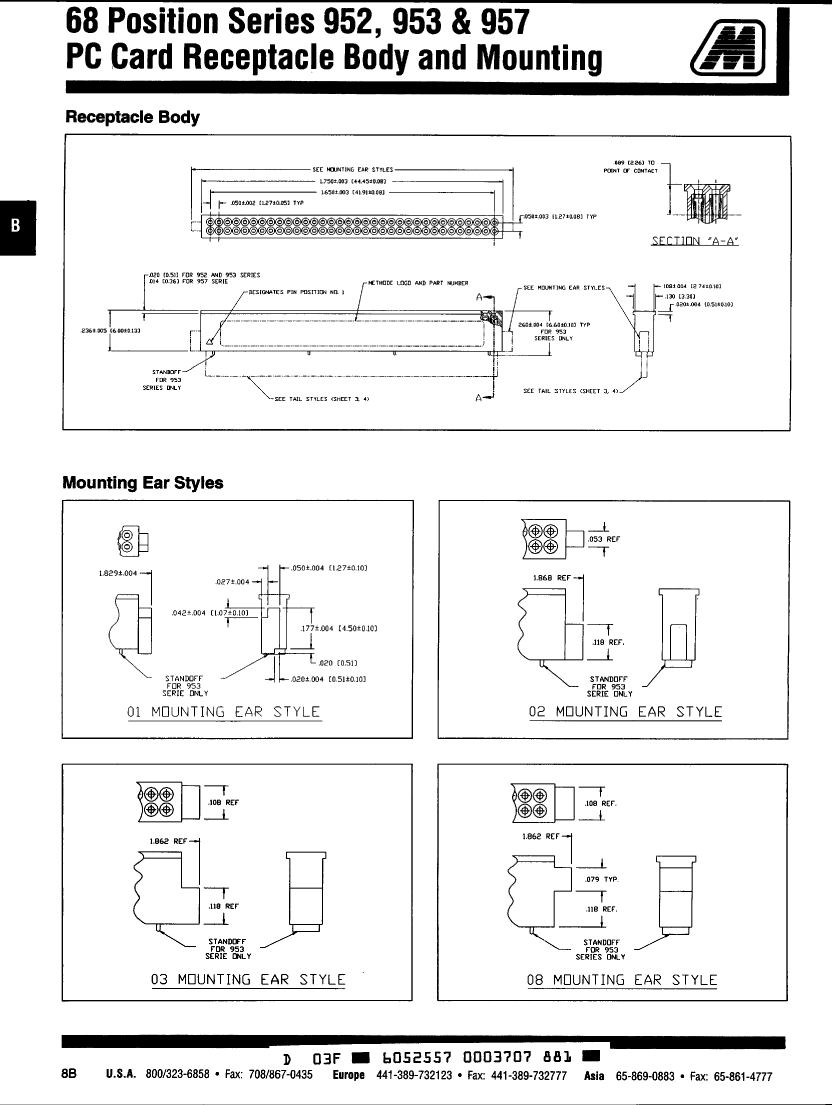

Board mount options	MOUNTING FLANGE
body width	0.13 inch
subject depth	0.26 inch
body length	1.75 inch
Body/casing type	PLUG
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
maximum insertion force	.3892 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	953
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL

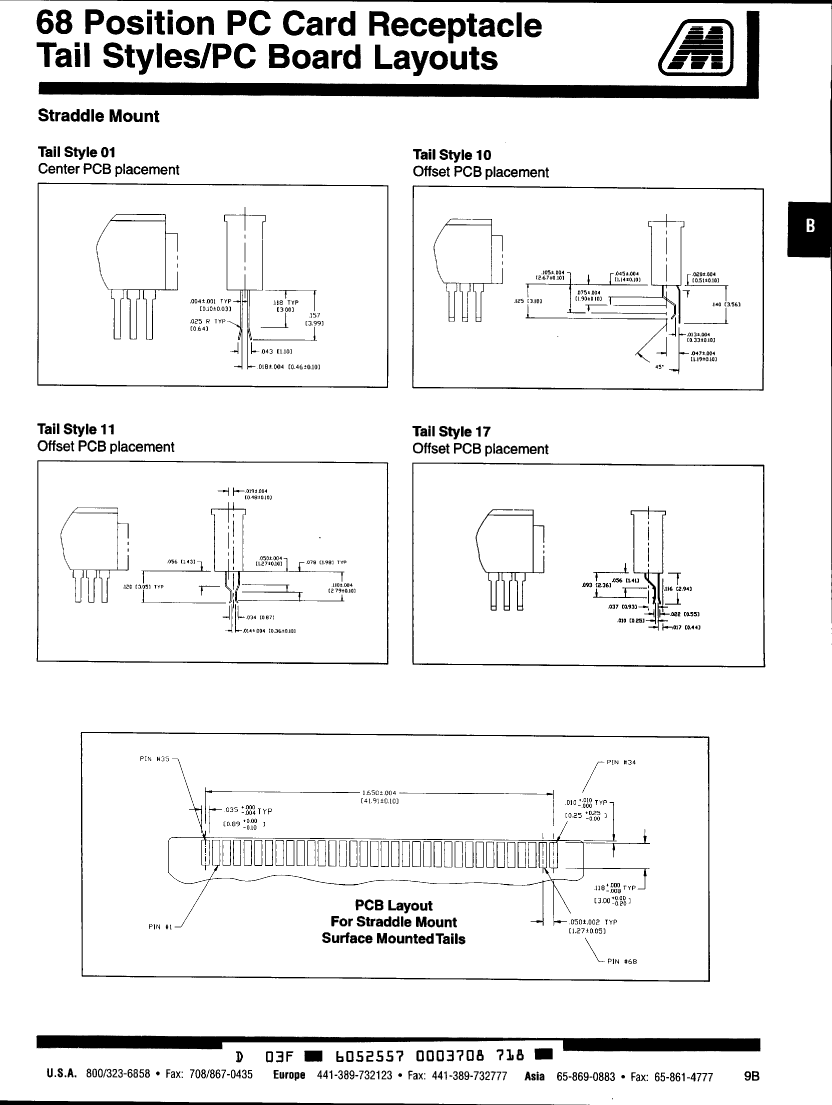

Terminal length	0.14 inch

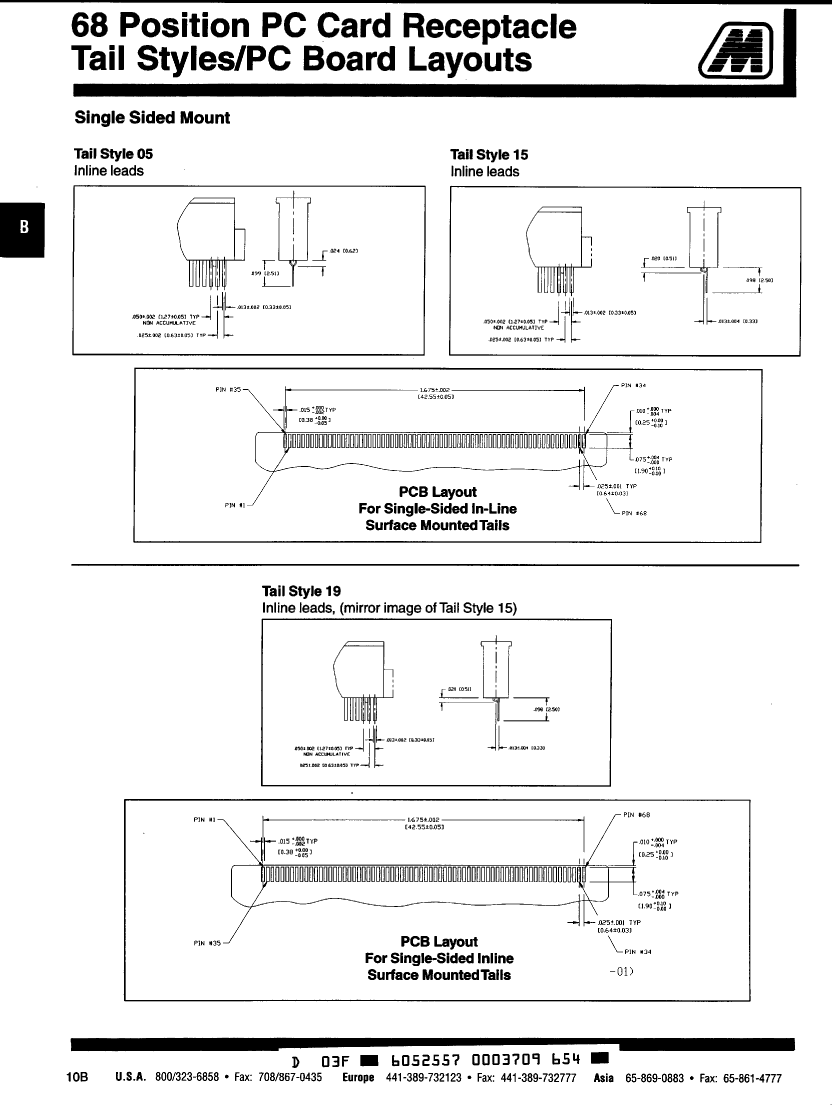

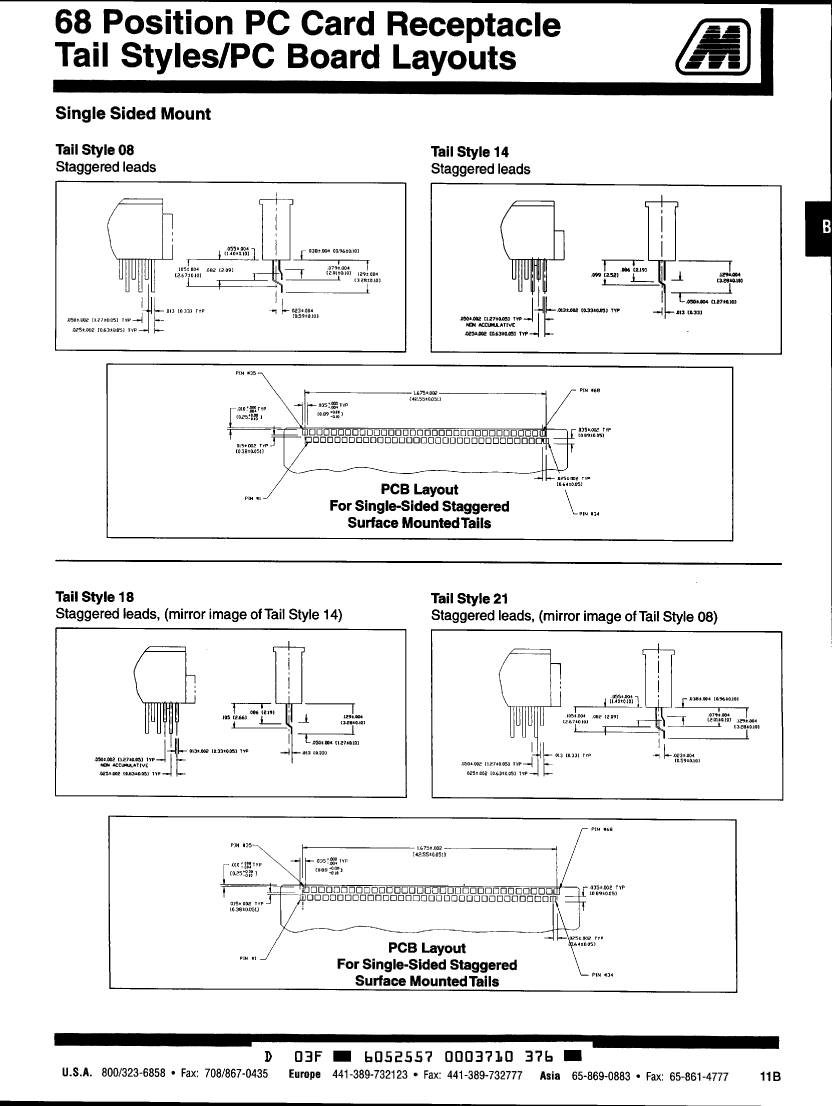

Termination type	SURFACE MOUNT
Total number of contacts	68
Evacuation force-minimum value	.0834 N
