SBL1030 AND SBL1040
SCHOTTKY RECTIFIER
Reverse Voltage -
30 and 40 Volts
TO-220AC
0.185 (4.70)
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
0.154 (3.91)
DIA.
0.148 (3.74)
0.055 (1.39)
0.045 (1.14)
0.175 (4.44)
Forward Current -
10.0 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability
Classifications 94V-0
♦
Metal silicon junction, majority carrier conduction
♦
Low power loss, high efficiency
♦
High current capability,
low forward voltage drop
♦
High surge capability
♦
For use in low voltage, high frequency inverters, free
wheeling, and polarity protection applications
♦
Guardring for overvoltage protection
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.25" (6.35mm) from case
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.560 (14.22)
0.530 (13.46)
0.410 (10.41)
0.390 (9.91)
PIN
1
0.160 (4.06)
0.140 (3.56)
0.560 (14.22)
0.530 (13.46)
2
0.635 (16.13)
0.625 (15.87)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
0.110 (2.79)
0.100 (2.54)
0.105 (2.67)
0.095 (2.41)
0.037 (0.94)
0.027 (0.68)
0.022 (0.56)
0.014 (0.36)
MECHANICAL DATA
CASE
PIN 1
0.205 (5.20)
0.195 (4.95)
PIN 2
Dimensions in inches and (millimeters)
Case:
JEDEC TO-220AC molded plastic body
Terminals:
Leads solderable per MIL-STD-750,
Method 2026
Polarity:
As marked
Mounting Position:
Any
Mounting Torque:
5 in. - lbs. max.
Weight:
0.08 ounces, 2.24 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
SBL1030
SBL1040
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at T
C
=110°C
Peak forward surge current, 8.3ms single
half sine-wave superimposed on rated load
(JEDEC Method)
Maximum instantaneous forward voltage at 10A
(NOTE 1)
Maximum instantaneous reverse current at
rated DC blocking voltage (
NOTE 1)
Typical thermal resistance
(NOTE 2)
Operating and storage temperature range
NOTES:
(1) Pulse test: 300µs pulse width, 1% duty cycle
(2) Thermal resistance from junction to case per leg
V
RRM
V
RMS
V
DC
I
(AV)
30
21
30
10.0
40
28
40
Volts
Volts
Volts
Amps
I
FSM
V
F
I
R
R
ΘJC
T
J
,T
STG
250.0
0.55
1.0
50.0
2.0
-40 to +125
Amps
Volts
mA
°C/W
°C
T
C
=25°C
T
C
=100°C
4/98

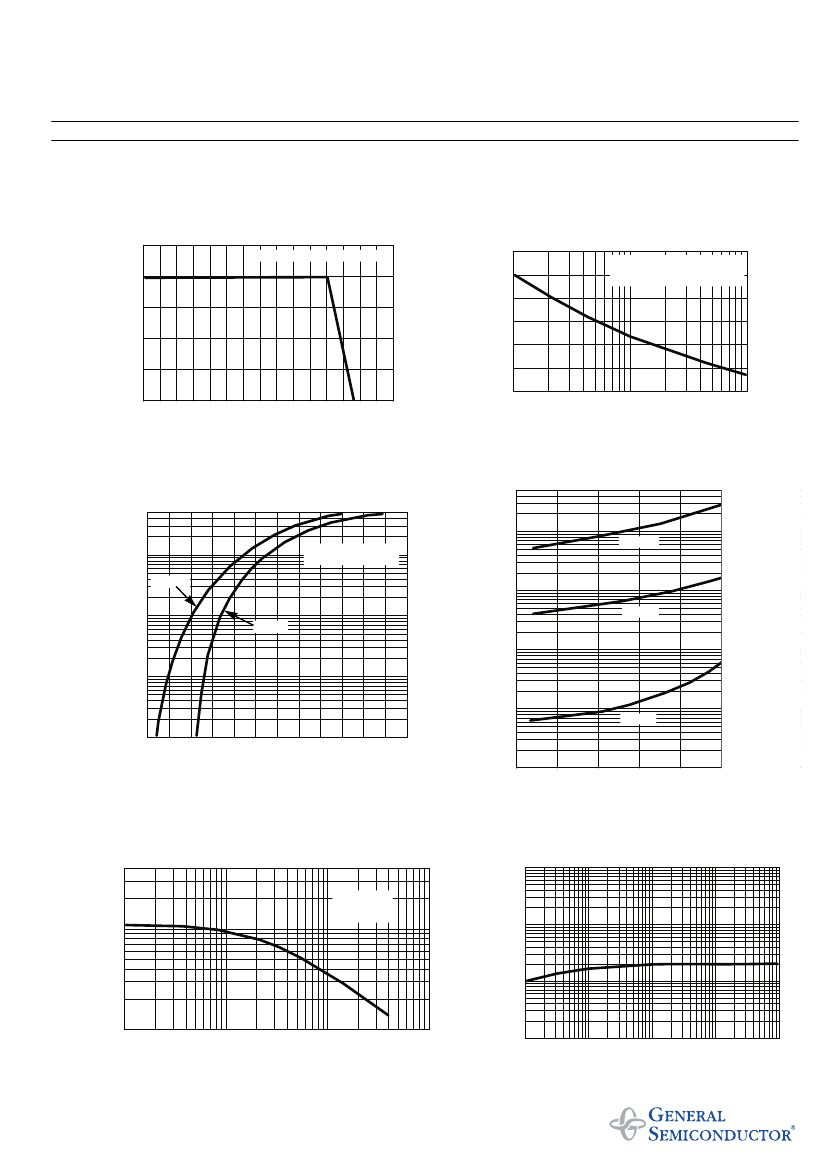

RATINGS AND CHARACTERISTIC CURVES SBL1030 AND SBL1040
FIG. 1 - FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,
AMPERES
12.5
10
7.5
5
2.5
0
PEAK FORWARD SURGE CURRENT,
AMPERES
FIG. 2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
RESISTIVE OR INDUCTIVE LOAD
300
250
200
150
100
50
0
1
T
J
=T
J
max.
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
10
NUMBER OF CYCLES AT 60 H
Z
100
0
50
100
150
CASE TEMPERATURE, °C
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
50
50
INSTANTANEOUS FORWARD CURRENT,
AMPERES
10
10
T
J
=125°C
PULSE WIDTH = 300µs
1% DUTY CYCLE
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
T
J
=125°C
1
T
J
=75°C
1
T
J
=25°C
0.1
0.1
0.01
T
J
=25°C
0.01
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
0.001
0
20
40
60
80
100
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
TRANSIENT THERMAL IMPEDANCE,
°C/W
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
4,000
JUNCTION CAPACITANCE, pF
T
J
=25°C
f=1.0 MHz
Vsig=50mVp-p
100
1,000
10.0
1
100
0.1
1
10
100
0.1
0.01
0.1
1
10.0
100
REVERSE VOLTAGE, VOLTS
t, PULSE DURATION, sec.
