BC032-03-C-2-0200-0200-L-D: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC032-03-C-2-0200-0200-L-D Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Receptacle,

BC032-03-C-2-0200-0200-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304444640
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.05 inch
subject depth	0.079 inch
body length	0.118 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BC032
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.778 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	3

Preview

Download Datasheet

View All

3

1

2

4

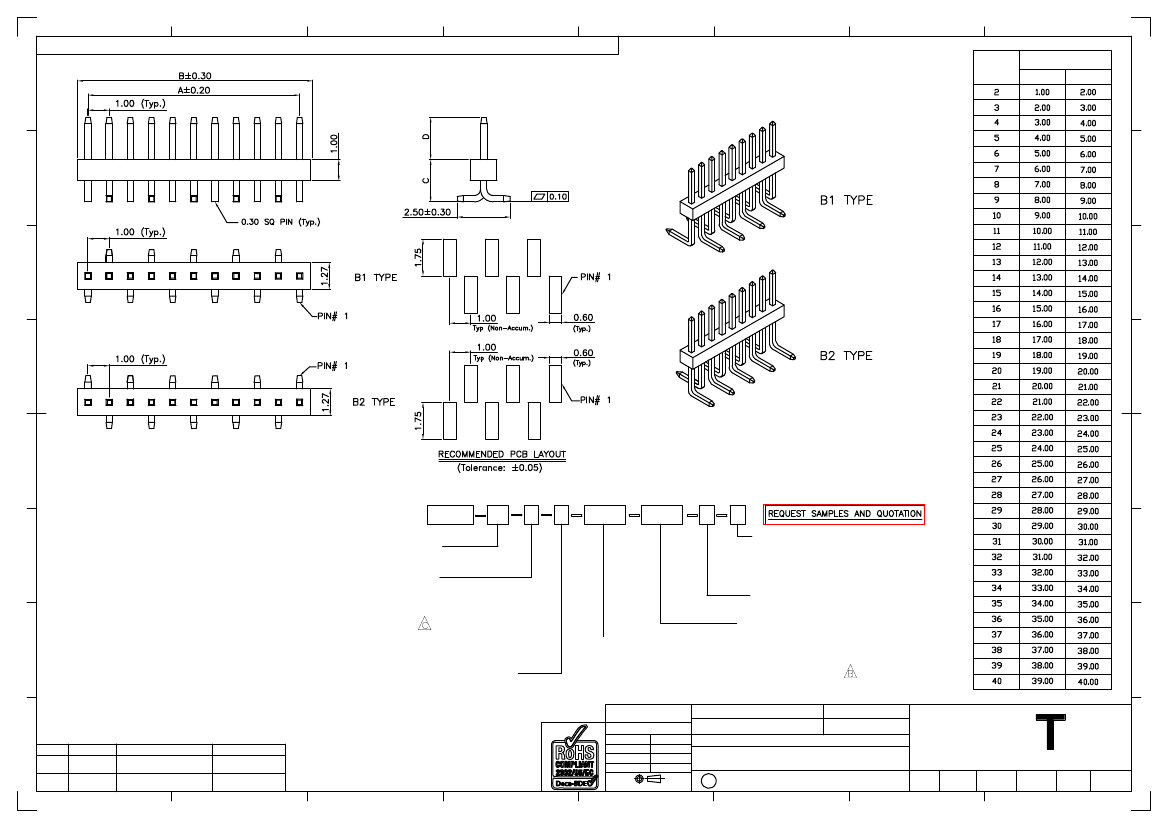

Global Connector Technology Ltd. - BC032: 1.00mm PITCH PIN HEADER, SINGLE ROW, SURFACE MOUNT, VERTICAL

A

5

6

7

8

DIMENSIONS

CONTACTS

A

B

A

B

C

D

E

Ordering Grid

BC032

F

SPECIFICATIONS

规格

:

No. of Contacts

02 to 40

XX

X

XXXX

L

X

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP (Standard)

Dimension D (1/100mm)

(Post Height)

Standard - 2.00mm = 0200

Standard - 3.80mm = 0380

or specify Dimension D

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Date:-

F

CURRENT RATING

电流额定值：

1 AMP

Contact Plating

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

A = Gold Flash All Over

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

C = Tin All Over

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

Standard = Gold Flash All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

PHOSPHOR BRONZE

INSULATOR MATERIAL

绝缘½物料

:

G

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

Type

LCP (STANDARD

标准物料

) -

1 = B1 Type

IR REFLOW

回流焊

: 260°C for 10 sec.

2 = B2 Type

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BC065

BC070

BC075

Dimension C (1/100mm)

(Bottom of Pin to Top of Insulator)

Standard - 2.00mm = 0200

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

G

Part Number:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

.XX°± 2°

X.XX ± 0.15

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC032

Description:-

20 MAY 08

H

By

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

A

20/05/08

SA

AMENDMENT TO

STANDARD DIMENSIONS

B

08/12/09

SA

AMENDMENT TO

PLATING OPTIONS

C

21/12/09

1.00mm PITCH PIN HEADER, SINGLE ROW,

SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

C

Drawn by

ASE

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
