BC045-48-C-0190-0190-0210-L-D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BC045-48-C-0190-0190-0210-L-D

Preview

BC045-48-C-0190-0190-0210-L-D: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Black Insulator,; CategoryThe connector The connector; File Size116KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BC045-48-C-0190-0190-0210-L-D Overview

Board Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Black Insulator,

BC045-48-C-0190-0190-0210-L-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	313658127
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.091 inch
subject depth	0.122 inch
body length	0.945 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BC045
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

3

1

2

4

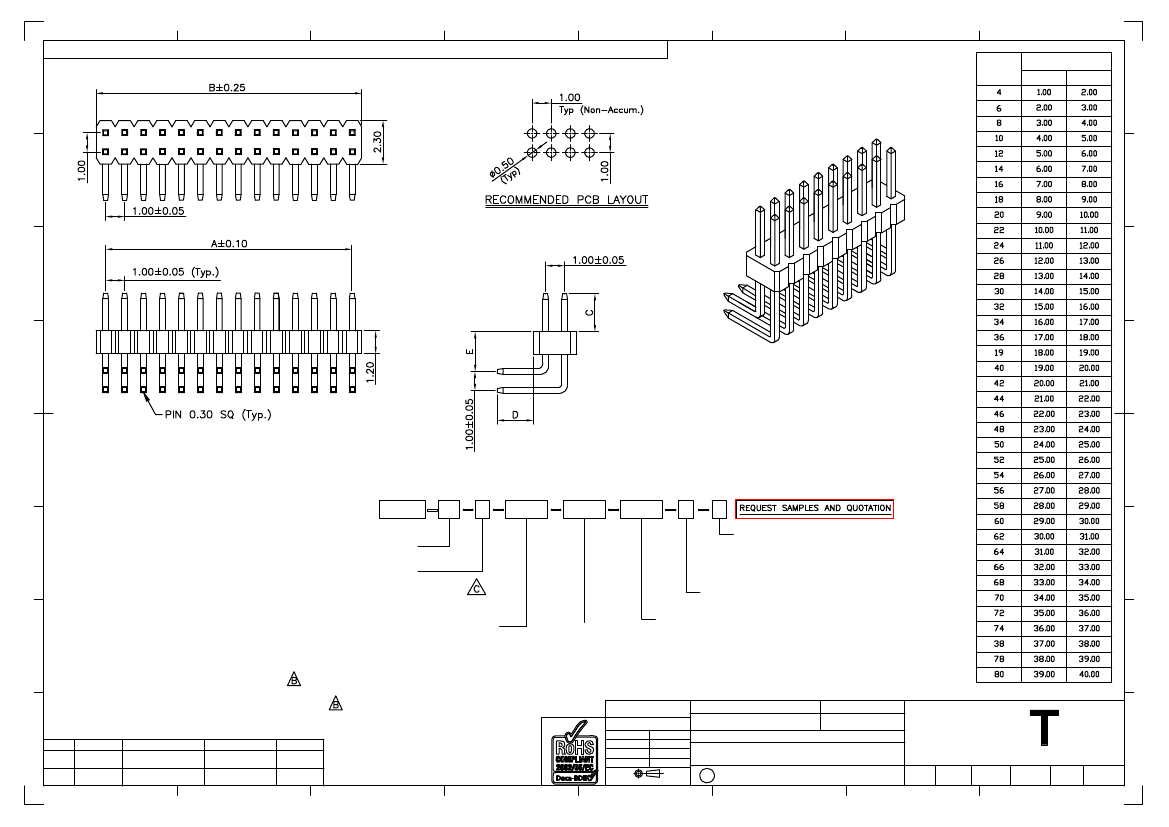

Global Connector Technology Ltd. - BC045: 1.00mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, HORIZONTAL

A

5

6

7

CONTACTS

8

DIMENSIONS

A

B

A

B

C

D

E

Ordering Grid

BC045

SPECIFICATIONS

规格

:

XX

X

XXXX

L

X

Packing Options

G = Plastic Box (Standard)

D = Tube (unavailable in 4, 6 & 8 contact versions)

E = Tube with Cap (unavailable in 4, 6 & 8 contact versions)

Insulator Material

L = LCP (Standard)

F

CURRENT RATING

电流额定值：

1 AMP

Contact Plating

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

A = Gold Flash All Over

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

C = Tin All Over

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

Standard = Gold Flash All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

CONTACT MATERIAL

端子物料：

COPPER ALLOY

Dimension C (1/100mm)

INSULATOR MATERIAL

绝缘½物料

:

(Post Height)

G

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

Standard - 1.90mm = 0190

or specify Dimension C

SOLDERING PROCESS

可焊性

:

e.g. 2.50mm = 0250

LCP (STANDARD

标准物料

) -

Tol ± 0.2mm

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BC084

BC085

H

By

DETAIL

REV

DATE

ASE

DRAWING

RELEASE

A

20/05/08

GG

SA

ASE

PACKING

AMENDED

D

30/03/12

CHANGE TO SOLDER AMENDMENT TO

TEMP. INFORMATION PLATING OPTIONS

C

B

21/12/09

23/07/09

No. of Contacts

04 to 80

F

Dimension D (1/100mm)

(Tail Length)

Standard - 1.90mm = 0190

or specify Dimension D

e.g. 2.50mm = 0250

Tol ± 0.2mm

Dimension E (1/100mm)

(Centre of Pin to Top of Insulator)

Standard - 2.10mm = 0210

or specify Dimension E

e.g. 2.50mm = 0250

Tol ± 0.2mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°± 5°

.X°± 3°

X.X ± 0.25

X.XX ± 0.15

.XX°± 2°

X.XXX ± 0.10 .XXX°± 1°

X. ± 0.30

Third Angle Projection

BC045

Description:-

20 MAY 08

1.00mm PITCH PIN HEADER, DUAL ROW,

THROUGH HOLE, HORIZONTAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

D

Drawn by

ASE

E & OE

Sheet No.

1/1

1

2

3

4

5

6

7

8
