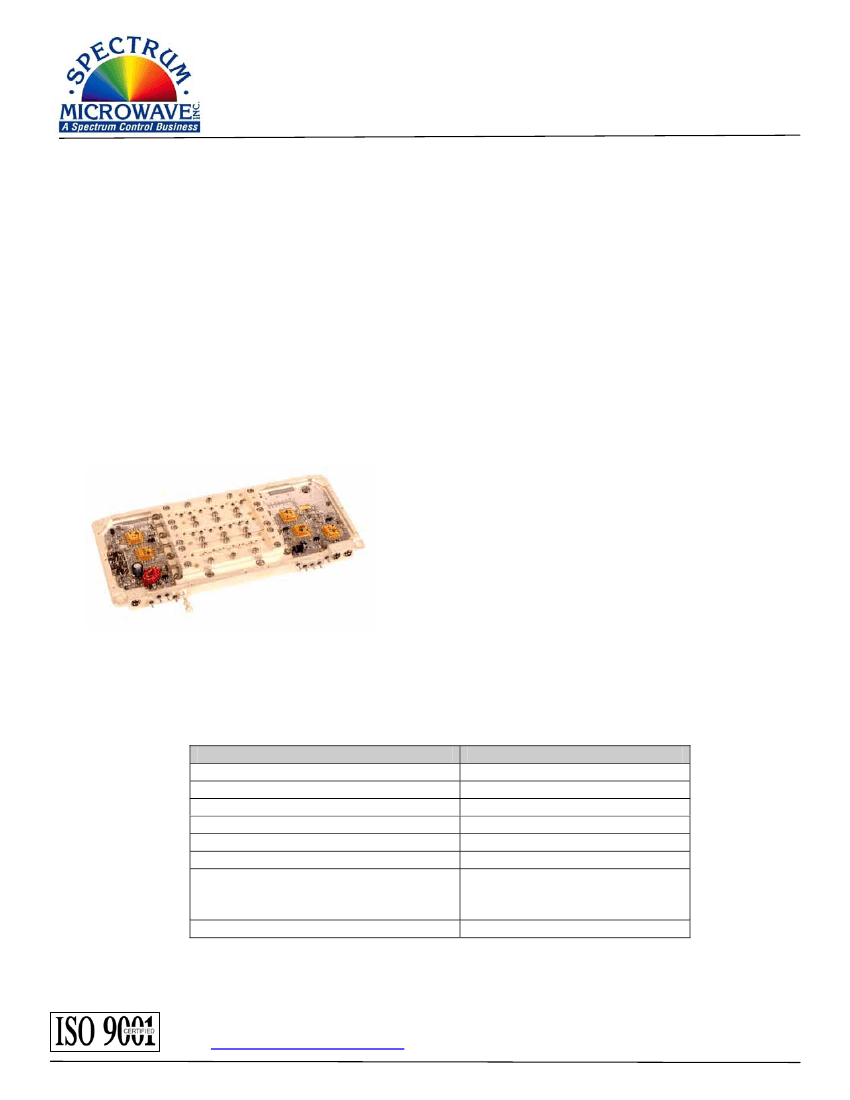

Local Oscillator Doubler
2250-4500 MHz
Model 310-027014-001
Typical Applications
Synthesizer Building Block
EW
ELINT
SIGINT
Features
Low Spurious less than -60 dBc
Fast 90 ns switching speed
High Output +10 dBm drive Level
2 Programmable Outputs
Null Output Mode
All Aluminum Housing
General Description
The 310-027014-001 Doubler provides the system
designer with a compact, fast-switching building block
for LO multiplication applications An internal solid-
state multiplier provides frequency multiplication by a
factor of 2.
Three selective internal bandpass filters offers
superior spurious response. Operating band is
selected using two band select control pins. An
added integral 2-way output switch allows routing of
the multiplied input LO signal to other modules based
upon the state of an output control line. A NULL
mode is also available to disable the module’s output.
Typical Performance
Parameter
Input Frequency
Input Level
Output Frequency
Output Level
Switching Speed
Phase Noise Degradation
DC Power
Temperature
Typical Specifications
2250 to 4500 MHz
+4 dBm ± 2 dB
4500 to 9000 MHz
+10 dBm ± 2 dB
90 ns
7 dB
+5 volts / 180 mA
-5 volts / 85 mA
0 to +75 °C
All specifications above measured at +25 °C
Spectrum Microwave
38166 Old Stage Road
Delmar, Delaware 19940
Phone: 302-846-2750
Fax: 302-846-3888
Page 1 of 1
Web:
www.SpectrumMicrowave.com
Last Revision: 2010-10-13
