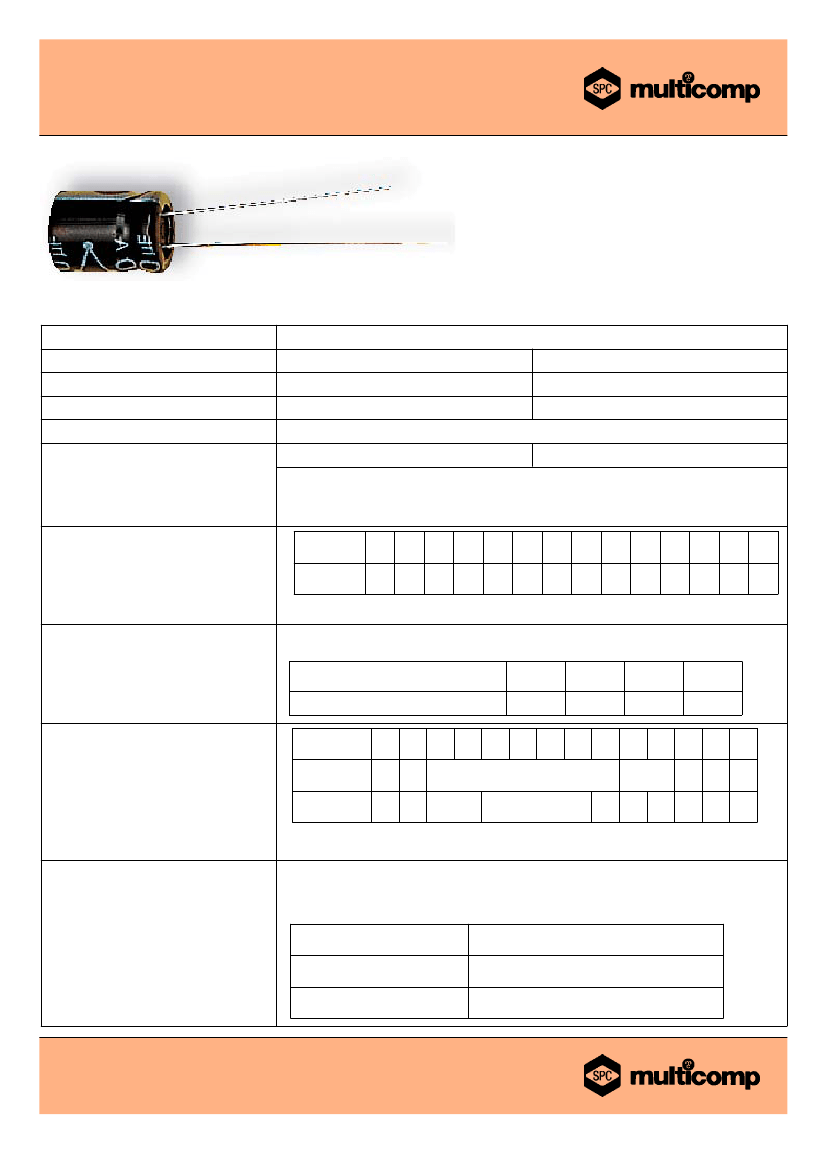

GPR Series
General Purpose Radial Capacitors
Features:
•
•
Wide CV value range for general purpose.
Safety vent construction products, GPR series are
guaranteed 2000 hours at 85°C.
Specifications
Item
Operating Temperature Range
Rate Working Voltage Range
Nominal Capacitance Range
Capacitance Tolerance
I=0.01CV or 3 (µA) maximum
Leakage Current
Whichever is greater after 3 minutes
-40 to +85°c
6.3 to 100v dc
0.1 to 22,000µF
Performance
-25 to +85°c
160 to 450v dc
0.47 to 820µF
±20% (at +20°c, 120Hz)
I≤0.03CV + 30 (µA) maximum
I : Leakage Current (µA)
C : Rated Capacitance (µF)
V : Working Voltage (v)
Dissipation Factor
(tanδ at 120Hz\+20°c)
Working
6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
Voltage
tanδ
0.22 0.2 0.17 0.15 0.12 0.1 0.09 0.08 0.2 0.2 0.18 0.20 0.20 0.20
maximum
Add 0.02 per 1000µF for more than 1000µF
Refer to standard products table (120Hz, +85°c).
Correction factor for frequency.
Ripple Current
Frequency (Hz)
Correction factor (Multiplier)
Working
Voltage
6.3 10
4
8
3
6
4
16
25
35
50/80
0.7
50
2
3
120
1
1K
1.3
10K
1.7
63 100 160 200 250 350 400 450
3
-
-
-
5
-
12
-
15
-
Characteristics at Low
Temperature (stability at 120Hz)
-25°C/+20°C
-40°C/+20°C
For Capacitance value >1000µF, Add 0.5 per another 1000µF for -25°C/+25°C
Add 1.0 per another 1000µF for -40°C/+20°C
After 2000 hours application of DC rated working voltage at +85°C, The capacitor shall
meet the following limits:
Post test requirements at + 20°C.
High Temperature Loading
Leakage current
Capacitance change
Dissipation factor (tanδ)
≤
the initial specified value
≤ ±20%
of initial measured value
≤
150% of initial specified value
http://www.farnell.com
http://www.newark.com
http://www.cpc.co.uk
Page <1>
02/07/10 V1.1
GPR Series
General Purpose Radial Capacitors
Specifications
Item
Shelf Life
Performance
After storage for 500 hours at +85°C with no voltage applied.
Post test requirements at +20°C. Same limits for high temperature loading
DØ (+0.5 maximum)
F ( ± 0.5)
dØ ( ± 0.02)
5.0
2.0
0.5
6.3
2.5
0.5
8.0
3
0.6
10
5
0.6
13
5
0.6
16
7.5
0.8
18
7.5
0.8
22
10
0.8
25
12
0.8
Dimensions : Millimetres
Case Size Table
WV(SV)
6.3 (8)
µ
F
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
5 x 11
6.3 x 11
5 x 11
6.3 x 11
8 x 11
10 x 13
“ point to.
5 x 11
5 x 11
6.3 x 11
8 x 11
10 x 16
10 x 21
5 x 11
10 (13)
16 (20)
25 (32)
35 (44)
50 (63)
ØDiamater x Length (mm)
63 (79)
100 (125)
5 x 11
5 x 11
6.3 x 11
8 x 11
10 x 13
10 x 21
13 x 21
6.3 x 11
8 x 11
10 x 13
10 x 16
13 x 21
16 x 26
6.3 x 11
8 x 11
10 x 13
10 x 16
6.3 x 11
8 x 11
All blank dimensions is the same dimensions as “
