1279NTBJS0V: DescriptionPCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size35KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279NTBJS0V Overview

PCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279NTBJS0V Parametric

Parameter Name	Attribute value
Objectid	303534061
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UP=RIGHT,LOW=LEFT EJECTOR,3.3V
Board mount options	M2 THREADED HOLES
body width	0.673 inch
subject depth	4.222 inch
body length	2.992 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1279
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of ports	2
Number of rows loaded	4
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	15u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	136

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

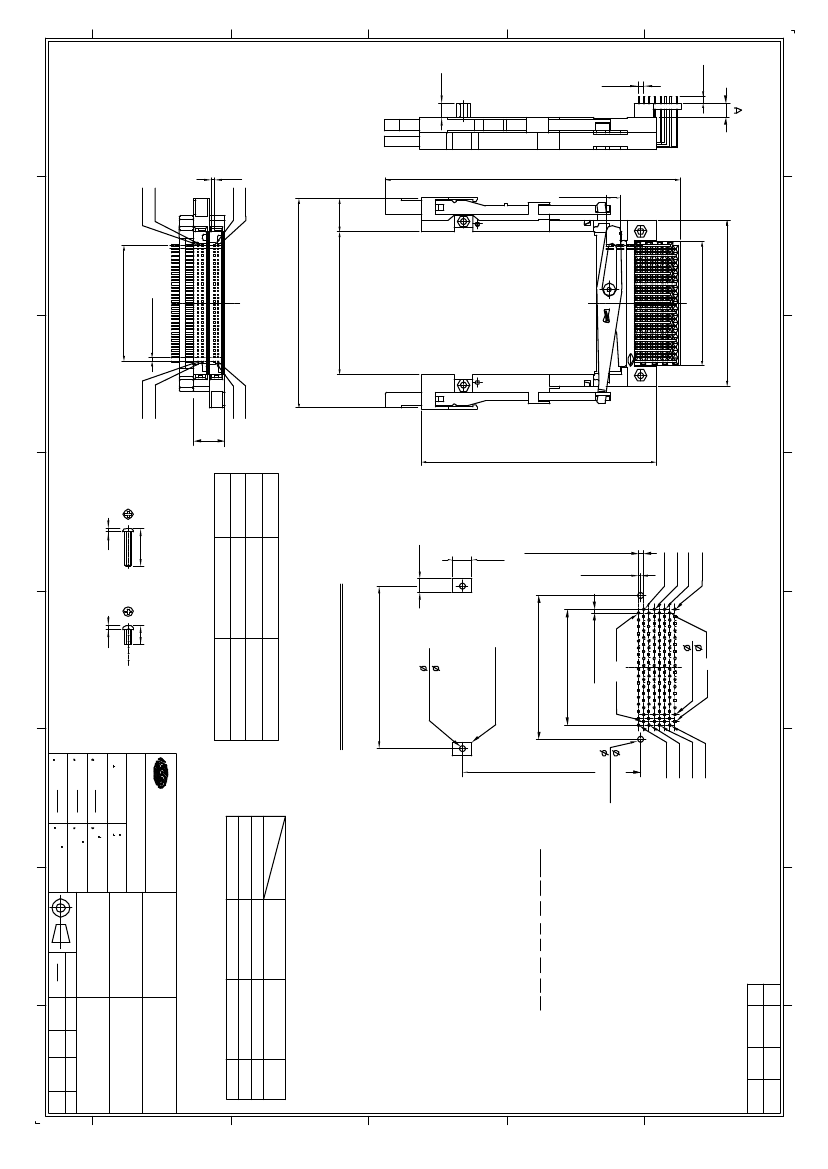

REV. ECO. NO.

CHG

APPD.

A

59.8

2.354

45.4

1.787

T-#01

T-#35

B-#01

B-#35

T-#02 T-#33

0.79±0.05

.031±.002

DWG REL.

A

2.6

.102

T-#34

T-#68

B-#34

B-#68

A

Features:

1.905

0.70 ±0.10

.028 ±.004

.750

B-#36

B-#67

1.27±0.05

.050±.002

41.91 ±0.08

1.650 ±.003

52.07 ±0.10

2.050 ±.004

EMI,ESD PAD

2.30±0.05

.091±.002

* Material:

1. Insulator: UL 94V-0 LCP,PBT

2. Contact: Copper Alloy

* Color : Black

* With 4 pcs M2 screws

* Accept PCMCIA Type I,

1.905±

0.05

.075±.002

B

L(2)

Type II or Type III card

64.50 ±0.10

2.539 ±.004

B

Ordering Information:

107.24

4.222

85.5

3.366

1279

1

* T B * * 0 *

2 3 4 5 6 7 8

A

C

5.00

.197

2× 2.30±0.05

2× .091±.002

59.00 ±0.10

2.323 ±.004

12.2

.480

D

51.6

2.031

76.0

2.992

PIN TYPE

DETECT

T-#34

T-#68

11.6

.456

GENERAL

POWER

RECOMMENDED HOLE PATTERN

1. Series No.

2. D = Double stack(with logo)

N = Double stack(without logo)

3. T = Through hole

4. Ejection Bar Location

B= Upper stack right ejection bar

Lower stack left ejection bar

5. Contact plating

S = Selective gold flash over 40μ" PdNi

K = Selective 30μ" gold over 50μ" nickel

F = Selective gold flash over 50μ" nickel

J = Selective 15μ" gold over 50μ" nickel

7.00

.276

C

6. An attached table (1) A

7. Special options

8. An attached table (1) B

DIM. L ±

0.10(.004)

3.50(.138)

4.25(.167)

5.00(.197)

(2)

PIN NUMBER

36, 67

ALL OTHER PINS

1,17,34,35,51,68

D

B

T-#01

T-#35

B

A

(H) A=4.0mm

(J) A=5.0mm

(S) A=5.5mm

DIM B = 1.1mm

(0) Voltage 5V

1279*TB*H00

1279*TB*J00

1279*TB*S00

(1)

DIM B = 2.2mm

(V) Voltage 3.3V

1279*TB*H0V

1279*TB*J0V

1279*TB*S0V

DIM C

18.3mm

19.3mm

E

B-#01

B-#35

1.27 ±0.05

.050 ±.002

41.91 ±0.08

1.650 ±.003

B-#34

B-#68

LEOCO CORPORATION

APPROVED:

PART NO.:

C

1.3

5.0

1.3

X

±

XX ±

XXX ±

0.30

.012

0.20

.008

0.10

.004

DATE:

1279*TB**0*

E

GENERAL TOLERANCE

CHECKED:

X

± 2°

DATE:

TITLE:

DOUBLE STACK PC CARD

PLUG AND EJECTOR

DRAWN:

X

± 1°

DRAWING NO.:

XX

± 0.5°

DATE:

1279D4S

UNITS

SCALE

SIZE

SHEET

REV.

XXX ± 0.1°

mm

inch

~

1

2

3

4

5

6

A3

1/1

A

7

8
