1279STLSS0G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1279STLSS0G

1279STLSS0G: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279STLSS0G Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279STLSS0G Parametric

Parameter Name	Attribute value
Objectid	303533727
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/ LOGO, LEFT EJECT BAR, 3.3V
Board mount options	M2 THREADED HOLES
body width	0.445 inch
subject depth	4.669 inch
body length	2.756 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1279
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68

Preview

Download Datasheet

View All

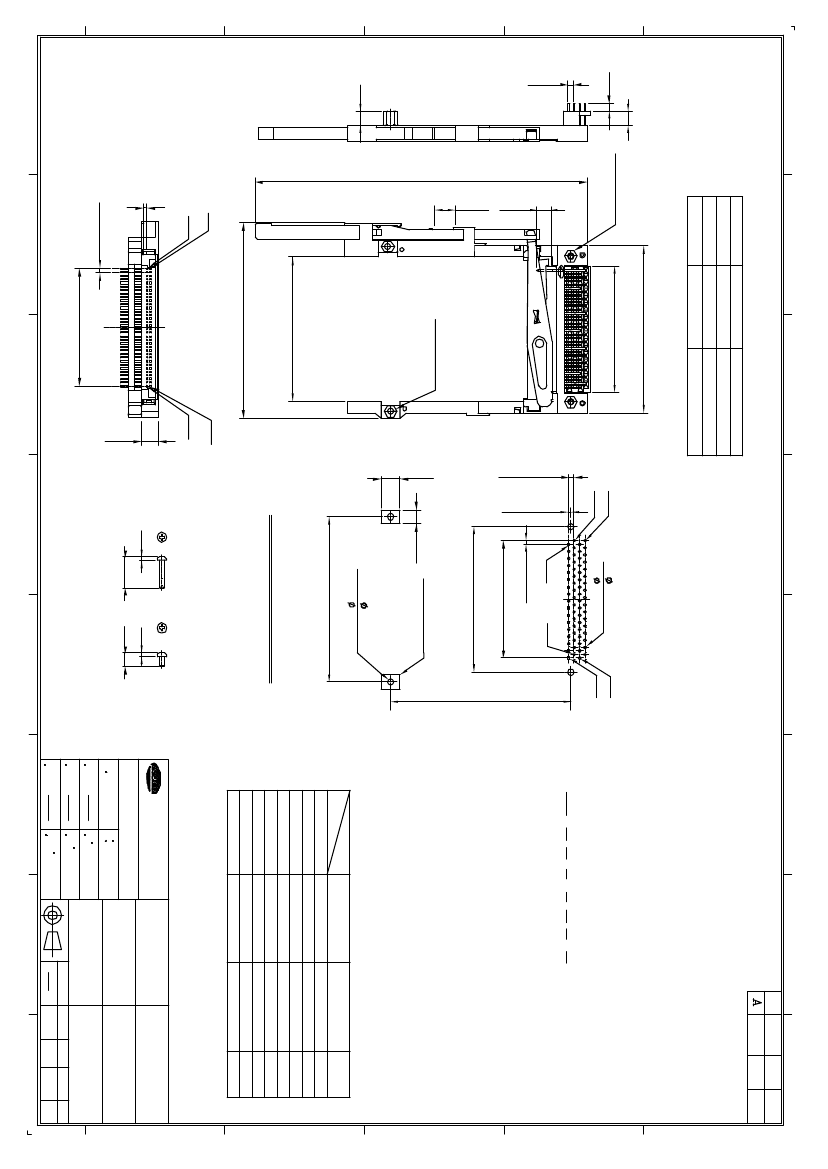

REV. ECO. NO.

CHG

APPD.

DWG REL.

PIN TYPE

DETECT

GENERAL

POWER

DIM. L ±

0.10

3.50

4.25

5.00

(2)

59.8

2.354

45.4

1.787

#35

0.79±0.05

.031±.002

PIN NUMBER

36, 67

ALL OTHER PINS

1, 17, 34, 35, 51, 68

2.6

.102

2-M2 NUTS

#34

#68

* Material:

1. Insulator: UL 94V-0 LCP, PBT

2. Contact: Copper alloy

* Color : Black

* With 4 PCS M2 screws

* Accept PCMCIA Type I,

Type II or Type III card

Features:

1.905

.075

1.905±

0.05

.075±.002

0.70 ±

0.10

.028 ±

.004

#36

1.27±0.05

.050±.002

41.91±

0.08

1.650±

.003

52.07

0.10

2.050

.004

#67

Ordering Information:

1279 * T L * * 0 *

2 3 4

5 6 7

2-M2 NUTS

5.00

.197

7.00

.276

EMI,ESD PAD

4× 2.30±

0.05

4× .091±

.002

59.00±

0.10

2.323±

.004

1. Series No.

2. M = Single stack(without logo)

S = Single stack(with logo)

3. T = Through hole

4. L = Left ejection bar

5. Contact plating

F = Selective gold flash over 50μ" nickel overall

J = Selective 15μ" gold over 50μ" nickel overall

S = Selective gold flash over 40μ" PdNi

K = Selective 30μ" gold over 50μ" nickel

6. An attached table (1) A

7. Special options

8. An attached table (1) B; Long ejector bar

64.50±

0.10

2.539±

.004

118.6

4.669

7.40

.291

L (2)

51.6

2.031

70.0

2.756

#35

#34

#68

RECOMMENDED HOLE PATTERN

(H)A=4.0mm

(J)A=5.0mm

(S)A=5.5mm

(M)A=6.0mm

(N)A=7.0mm

(P)A=8.0mm

(Q)A=9.0mm

(R)A=10.0mm

DIMB=1.1mm

Voltage 5V

1279*TL*H0L

1279*TL*J0L

1279*TL*S0L

1279*TL*M0L

1279*TL*N0L

1279*TL*P0L

1279*TL*Q0L

1279*TL*R0L

DIMB=2.2mm

Voltage 3.3V

1279*TL*H0G

1279*TL*J0G

1279*TL*S0G

1279*TL*M0G

1279*TL*N0G

1279*TL*P0G

1279*TL*Q0G

1279*TL*R0G

DIM"C"

12.3mm

13.3mm

14.3mm

15.3mm

16.3mm

17.3mm

18.3mm

(1)

APPROVED:

1.3

5.8

.228

1.27±0.05

.050±

.002

1.3

5.0

LEOCO CORPORATION

PART NO.:

DATE:

1279*TL**0*

GENERAL TOLERANCE

CHECKED:

TITLE:

± 2°

DATE:

PC CARD PLUG AND

LONG EJECTOR BAR

41.91±

0.08

1.650 ±

.003

XX ±

XXX ±

0.30

.012

0.20

.008

0.10

.004

DRAWN:

± 1°

DRAWING NO.:

± 0.5°

DATE:

1279B0S

UNITS

SCALE

SIZE

SHEET

REV.

XXX ± 0.1°

inch

1/1
