MULTILAYER CERAMIC CHIP CAPACITORS
-
GMC SERIES
-
APPLICATIONS
-
Can be used on surface mount assembly equipment
-
Our fully integrated manufacturing and total quality
control systems ensure unprecedented high standards of
quality and reliability.
FEATURES
-
Large capacitance values in small sizes
-
Excellent high frequency characteristics

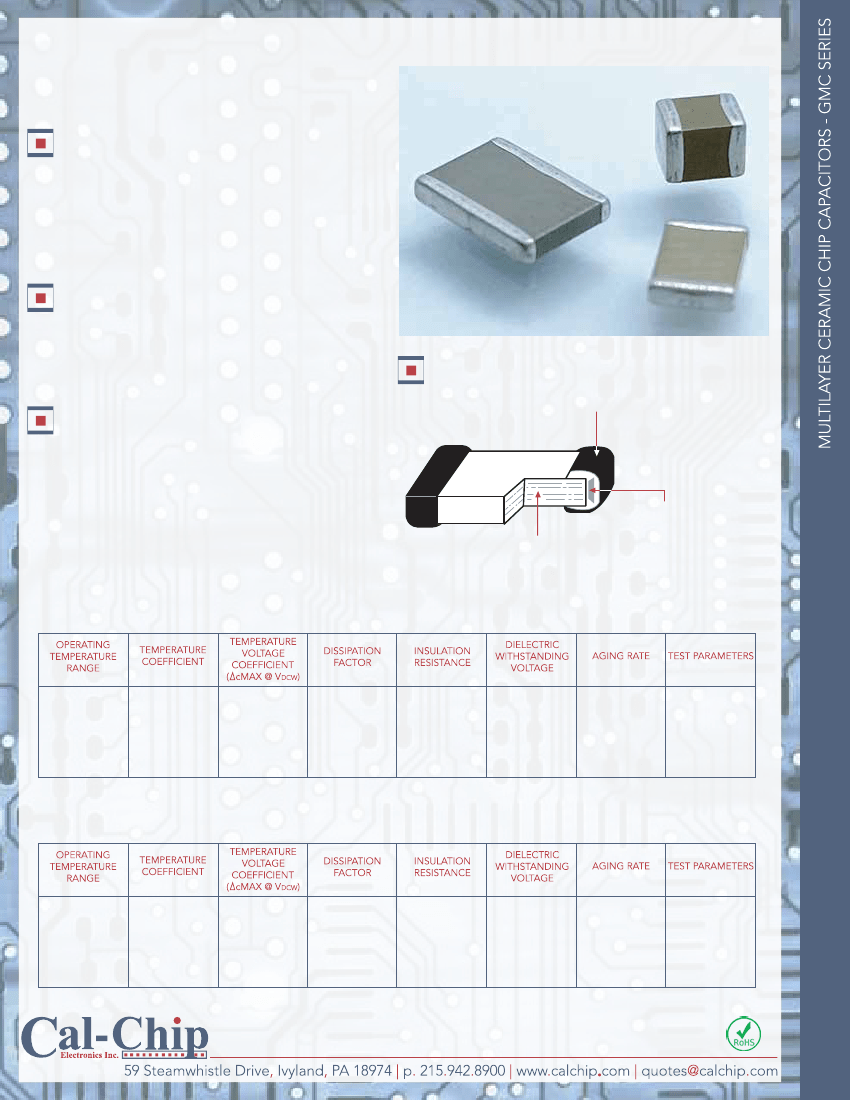

CONSTRUCTION
CHIP CAPACITOR SELECTION
DIELECTRIC TYPE
COG (NPO)
- Capacitance change with temperature is
0-30ppml°C which is less than -0.3%°C from -55°C to
+125°C. Typical capacitance change with life is less than
-0.1 % for NPOs, one-fifth that shown by most other
dielectrics. NPO formulations show no aging characteristics.
Solder plate; 100% matte SN; typical thickness
0.003mm to 0.005mm *(Please see note)
Nickel Barrier Layer
(50 Micro-Inches Electroplated Nickel Min.)
Inner
Electrodes
Ultra stable class I dielectric: linear temperature coefficient, low loss, negligible change of electrical properties with
time, voltage and frequency.
-55°C to° +125 C
0±30ppm°C
0±30ppm/°C
0.1% Max,
0.02% Typlical
whichever is smaller
(Rated voltage
whichever is smaller)
DCW
0% per decade
hour
• C<1000pF
• C>1000pF
Stable class II dielectric
X7R=-55C to+125C
X5R=-55C to+85C
X7S=-55C to+125C
±15%
±22%
X7R/X5R
Not Applicable
Not Applicable
2.5% Max,
1.8% Typical
whichever is smaller
(Rated voltage
whichever is smaller)
DCW
<2% per decade
hour
25°C values> or =
to 10uF
0.5±0.1 volt
1

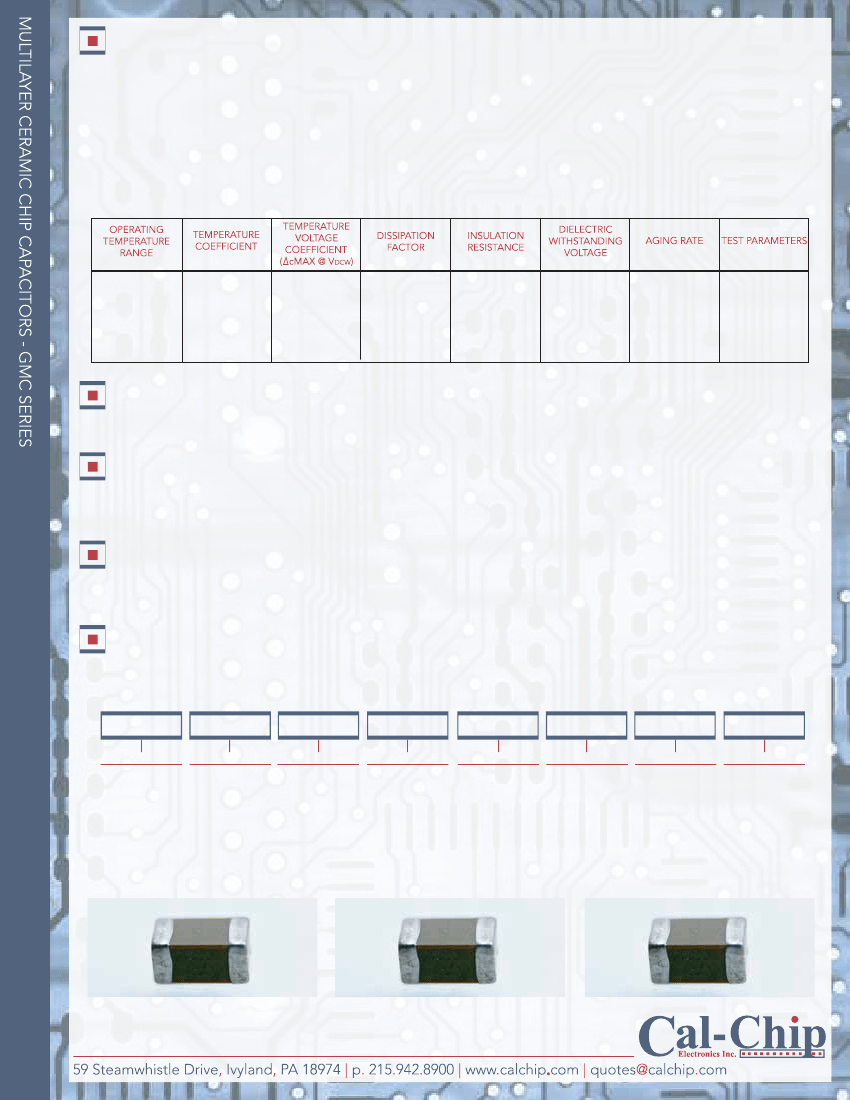

CHIP CAPACITOR SELECTION
Z5U
- Despite their capacitance instability, Z5U formulations are very popular because of their small size, temperature
range low ESL, low ESR and excellent frequency response. These features are particularly important for decoupling
application where only a minimum capacitance value is required.
dielectric constant allows the manufacture of very high capacitance values (up to 22MF) in small physical sizes.
High capacitance per unit volume: general purpose product
-30°C to +85°C
+22%
-82%
N/A
3.0% Max, 2.0%
Typical
whichever is smaller
(Rated voltage
whichever is smaller)
DCW
3.0% per decade
hour
values > or = to
120Hz
Determined by circuit requirements. Note that chip prices decrease with lower capacitance value and looser tolerance.
Determined by circuit requirements.
CAPACITOR SIZE
Select the smallest unit permitted by the circuit constraints that provides the required capacitance and voltage rating.
All Cal-Chip capacitors conform to EIA specifications.
CAPACITOR TERMINATION
Nickel barrier is standard and recommended for units exposed to repeated solder cycles, to minimize leaching of the
termination.
GMC
PRODUCT TYPE
21
DIMENSIONS
01: 01005
02: 0201
04: 0402
21: 0805
32: 1210
40: 1808
43: 1812
45: 1825
55: 2220
57: 2225
CG
DIELECTRIC
CG: COG/NPO
X7R
X5R
Z5U
X7S
102
CAPACITANCE
0R5: 0.5pF
5R0: 5.0pF
R75: 0.75pF
100: 10pF
101: 100pF
102: 1000pF
103: .01uF
104: .1uF
105: 1.0uF
107: 100uF
J
TOLERANCE
A: +/-.05pF
B: +/-.1pF
C: +/-.25pF
D: +/-.5pF
F: +/-1%
G: +/-2%
J: +/-5%
K: +/-10%
M: +/-20%
Z: -20%/+80%
50
NT
TERMINATION
NT: Sn/Ni
PT: Pd/Ag
D
PACKAGING CODE
Blank: 7" reel
..Note: Cal-Chip has completed the Lead-Free transition. All parts shipped will be lead-free. The customer
designator of "LF" is no longer available.Lead-Free material will continue to have a green RoHS symbol on the
label.
2
