430-B2S1SS1BA: DescriptionD Type Connector, 25+9+15 Contact(s), Male/Female, Solder Terminal, #4-40, Plug/receptacle; CategoryThe connector The connector; File Size588KB，2 Pages; ManufacturerAMCO Tec International Inc

Download Datasheet Parametric View All

430-B2S1SS1BA Overview

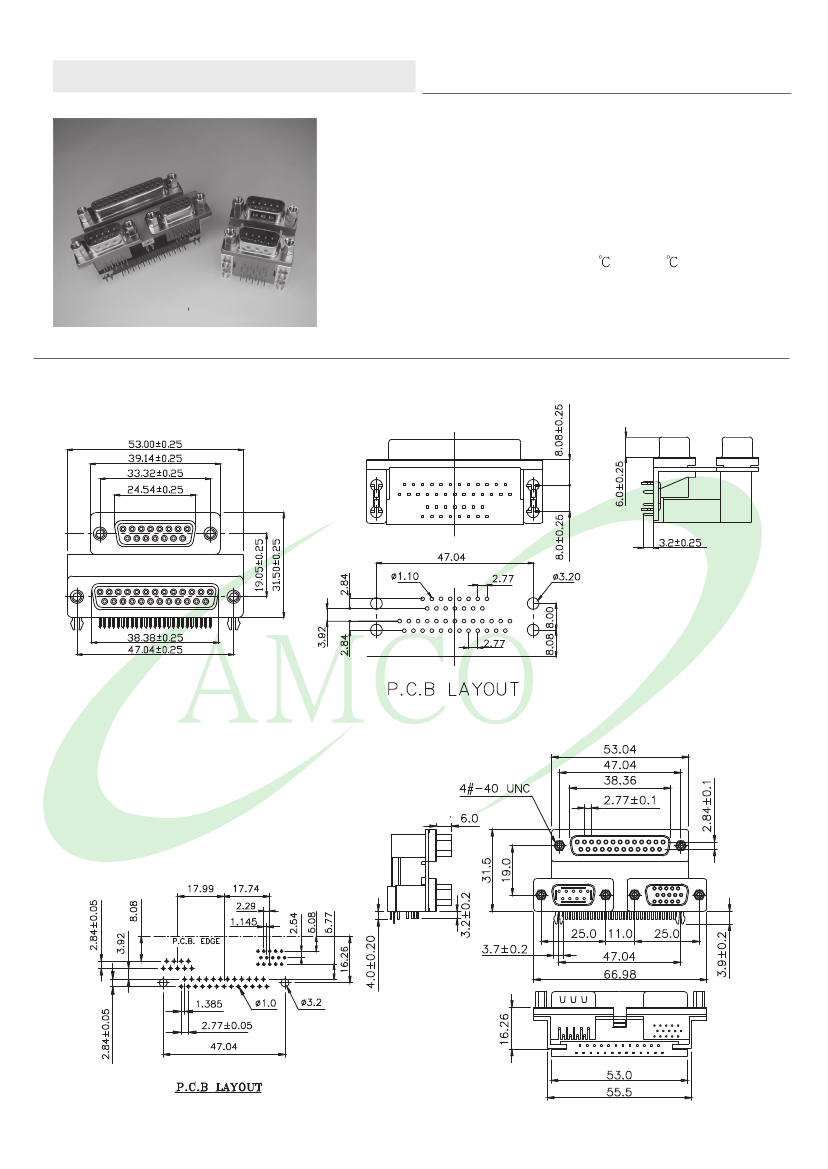

D Type Connector, 25+9+15 Contact(s), Male/Female, Solder Terminal, #4-40, Plug/receptacle

Parameter Name	Attribute value
Objectid	303884547
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH AMCO MARK
body width	1.24 inch
body length	2.088 inch
Body/casing type	PLUG-RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE/FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1	#4-40
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+2+3
Number of rows loaded	2+2+3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	49

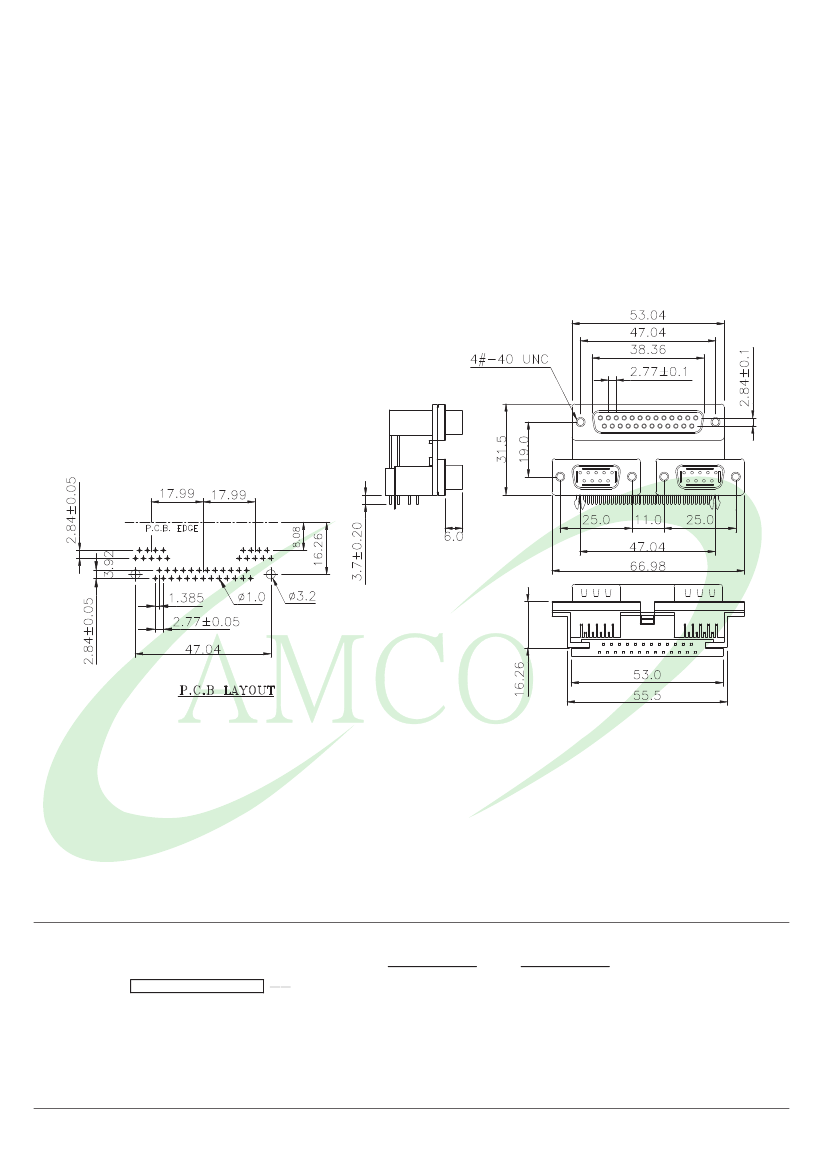

430/D-Sub Dual Port Type

MATERIAL:

1. INSULOTOR : PBT +30% GLASS FIBER (UL 94V-0).

2. CONTACT : BRASS.

3. CONTACT : G/F OVER NICKEL.

4. SHELL : STEEL NICKEL PLATED.

ELECTRICAL SPECIFICATION:

1. CURRENT RATING : 1 AMP.

2. DIELECTRIC WITHSTANDING VOLTAGE : 1000V AC.

3. INSULATION RESISTANCE : 5000 MEGOHMS MIN AT DC 500V.

4. OPERATING TEMPERATURE : -55 TO +105 .

15 Pin Female+25 Pin Female Type

25 Pin Female+9 Pin Male+15 Pin Female Type

49

AMCO TEC INTERNATIONAL INC.
