MSS1X05

Description
Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size152KB,1 Pages
ManufacturerAUK Contractors Co., Ltd.
Download Datasheet Parametric Compare View All

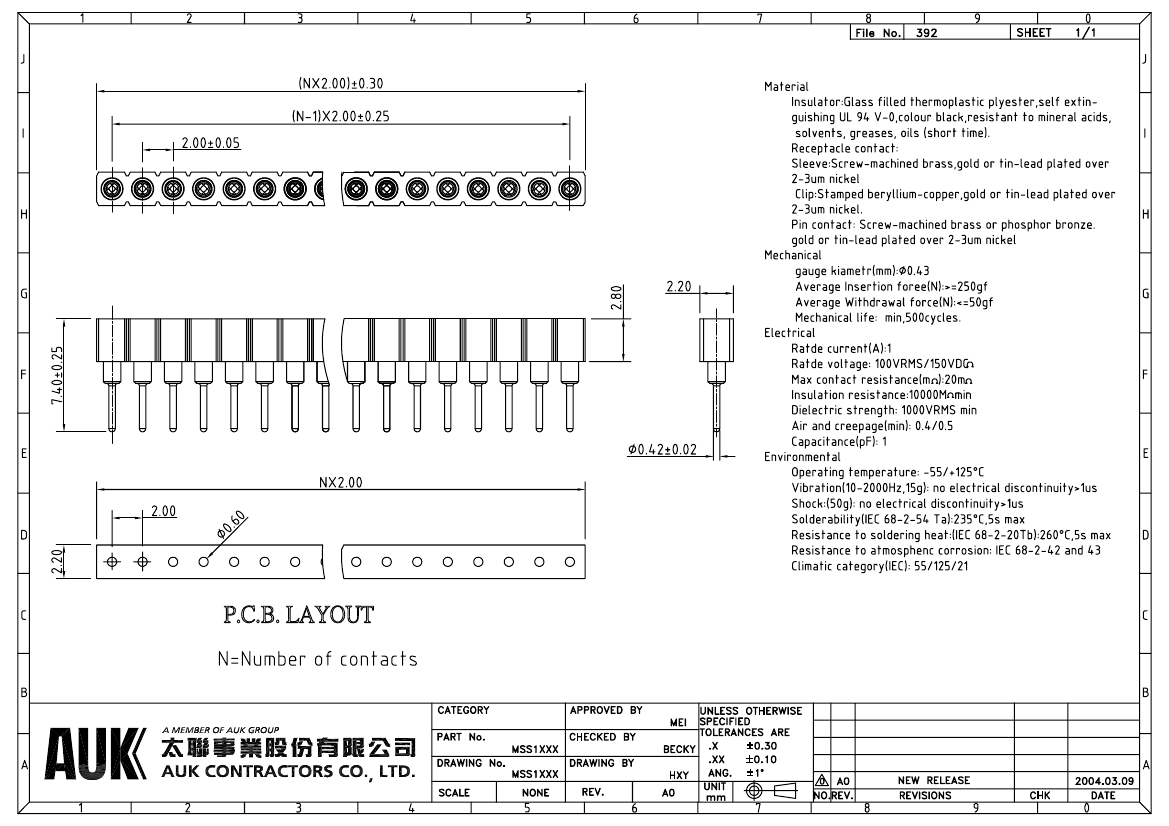

MSS1X05 Overview

Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

MSS1X05 Parametric

Parameter NameAttribute value
Objectid304402372
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.087 inch
body length0.394 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1400VAC V
Durability500 Cycles
maximum insertion force2.4464 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial numberMSS
Plug contact pitch0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts5
Evacuation force-minimum value.4726 N

MSS1X05 Related Products

MSS1X05 MSS1X06
Description Board Connector, 5 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug
Objectid 304402372 304402373
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
body width 0.087 inch 0.087 inch
body length 0.394 inch 0.472 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact point gender FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER
contact mode RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ
Contact style RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1400VAC V 1400VAC V
Durability 500 Cycles 500 Cycles
maximum insertion force 2.4464 N 2.4464 N
Insulation resistance 10000000000 Ω 10000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
Manufacturer's serial number MSS MSS
Plug contact pitch 0.079 inch 0.079 inch
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 1 1
Number of rows loaded 1 1
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
PCB contact pattern RECTANGULAR RECTANGULAR
Rated current (signal) 1 A 1 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 2.0066 mm 2.0066 mm
Termination type SOLDER SOLDER
Total number of contacts 5 6
Evacuation force-minimum value .4726 N .4726 N
