ZSSC3008
Sensor Signal Conditioner with Diagnostics
ZSSC3008
Sensor Signal Conditioner with Diagnostics
Brief Description
The ZSSC3008 is a sensor signal conditioner IC that
is adjustable to nearly all piezo-resistive bridge sen-
sors. Measured and corrected bridge values are pro-
vided at the SIG™ pin, which can be configured as
an analog voltage output or as a one-wire serial dig-
ital output.
The digital one-wire interface (OWI) can be used for
a simple PC-controlled calibration procedure to pro-
gram a set of calibration coefficients into an on-chip
EEPROM. The calibrated ZSSC3008 and a specific
sensor are mated digitally: fast, precise, and without
the cost overhead associated with trimming by exter-
nal devices or laser. Integrated diagnostics functions
make the ZSSC3008 particularly well-suited for auto-
motive applications.*
Benefits
PC-controlled configuration and calibration via
one-wire interface – simple, low cost
High accuracy (±0.1% FSO @ -25 to 85°C;
±0.25% FSO @ -40 to 125°C)
Single-pass calibration – quick and precise
Available Support
Development Kit available
Multi-Unit Calibrator Kit available
Support for industrial mass calibration available
Quick circuit customization possible for large
production volumes
Physical Characteristics
Features
Wide operation temperature: –40°C to +125°C
Supply voltage 2.7 to 5.5V; with external JFET,
5.5 to 30V
Small SOP8 package
Digital compensation of sensor offset, sensitivity,
and non-linearity
Programmable analog gain and digital gain;
accommodates bridges with spans < 1mV/V
and high offset
Many diagnostic features on chip (e.g., EEPROM
signature, bridge connection checks, bridge short
detection, power loss detection)
Independently programmable high and low
clipping levels
24-bit customer ID field for module traceability
Output options: rail-to-rail ratiometric analog
voltage (12-bit resolution), absolute analog
voltage, digital one-wire interface
Fast power-up to data out response; output
available 5ms after power-up
Current consumption depends on programmed
sample rate: 1mA down to 250A (typical)
Fast response time: 1ms (typical)
High voltage protection up to 30V with
external JFET

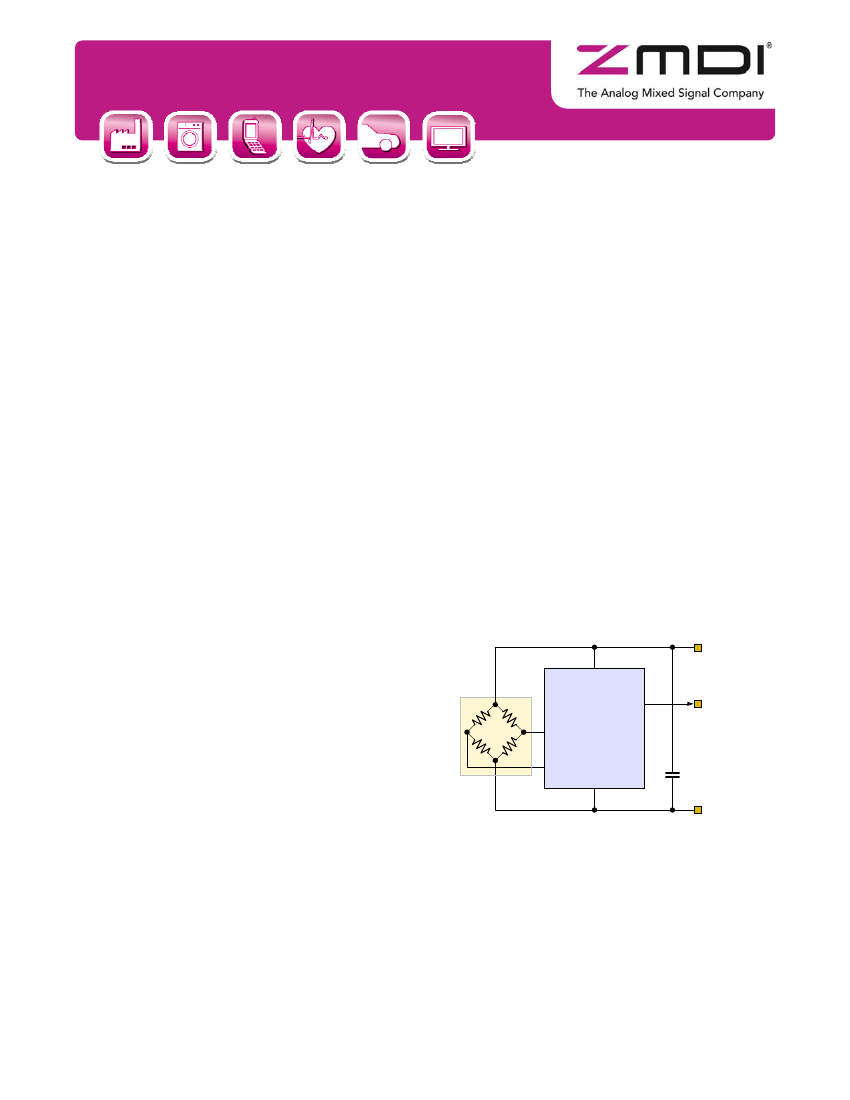

ZSSC3008 Application Circuit
V
supply
+2.7 to +5.5 V
VDD
SIG™
OUT/OWI
ZSSC3008
VBP
Vgate
VBN
VSS
0.1
F
Ground
* Not AEC-Q100-qualified.
© 2011
Zentrum Mikroelektronik Dresden AG
— Rev. 1.11
All rights reserved. The material contained herein may not be reproduced, adapted, merged, translated, stored, or used without the prior written consent of the copyright owner.
The information furnished in this publication is subject to changes without notice.
ZSSC3008
Sensor Signal Conditioner with Diagnostics

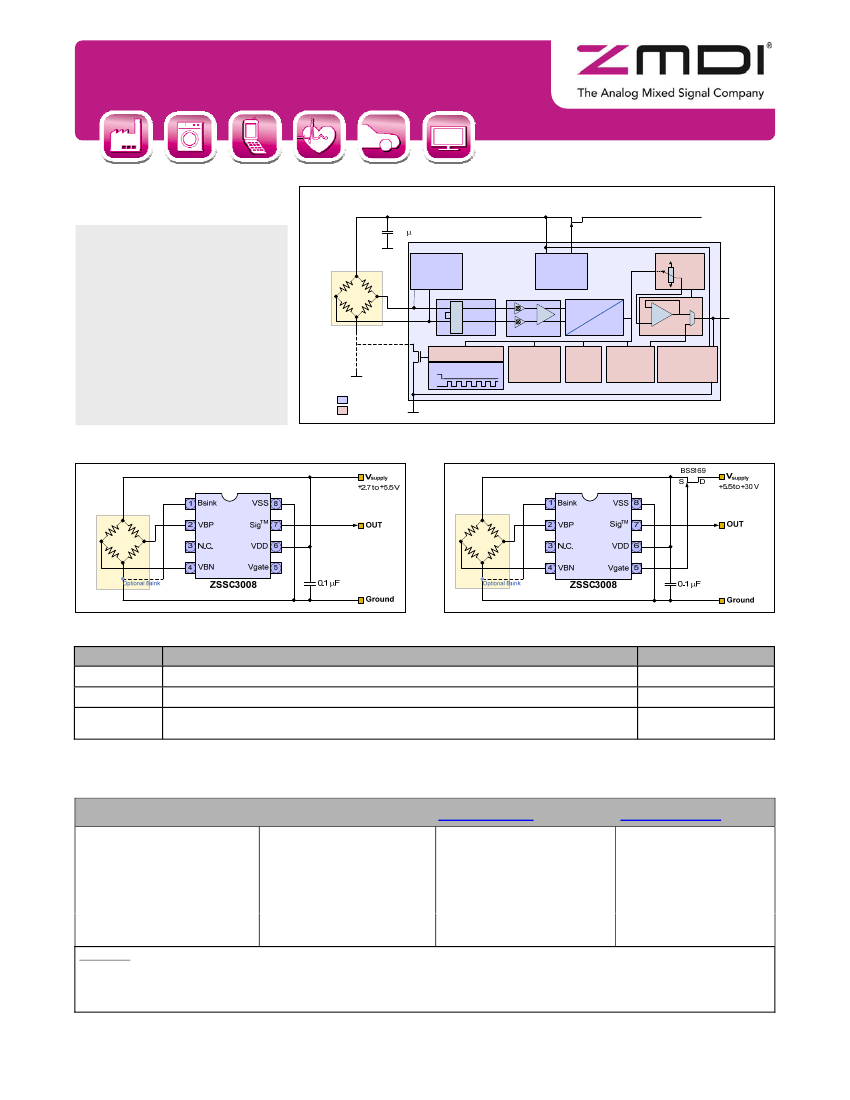

ZSSC3008 Block Diagram
0.1 F
JFET
1
(Optional if supply is 2.7 to 5.5 V)
S
D
5.5 V to 30 V
V
SUPPLY
Highly Versatile Applications
in Many Markets Including
Industrial
Building Automation
Office Automation
White Goods
Automotive *
Portable Devices
Your Innovative Designs
V
DD
(2.7 to 5.5 V)
Vgate
Sensor
Diagnostics
VBP
VBN
VDD
Regulator
ZSSC3008
12-Bit
DAC
A
INMUX
PREAMP
EEPROM
with Charge
Pump
_
D
ZACwire
TM
Interface
SIG
TM
0 V to 1 V
Ratiometric
Rail-to-Rail
OWI/ZACwire
TM
+
14-Bit ADC
OUTBUF1
(Optional)
Bsink
Power Save
POR/Oscillator
Digital
Core
Power Lost
Diagnostic
Analog Block
* Not AEC-Q100-qualified.
Digital Block
VSS
Rail-to-Rail Ratiometric Voltage Output Applications
Absolute Analog Voltage Output Applications
Product Ordering Codes
(Please contact ZMDI Sales for additional options.)
Sales Code
ZSSC3008AA2R
ZSSC3008AA2T
ZSSC3008KIT
Description
ZSSC3008 SOP8 (150 mil) — Temperature range: -40°C to +125°C
ZSSC3008 SOP8 (150 mil) — Temperature range: -40°C to +125°C
ZSSC3008 SSC Evaluation Kit: Communication Board, SSC Board, Sensor Replacement Board,
Evaluation Software, USB Cable, 5 IC Samples
Tube
Kit
Package
Tape and Reel
Sales and Further Information
