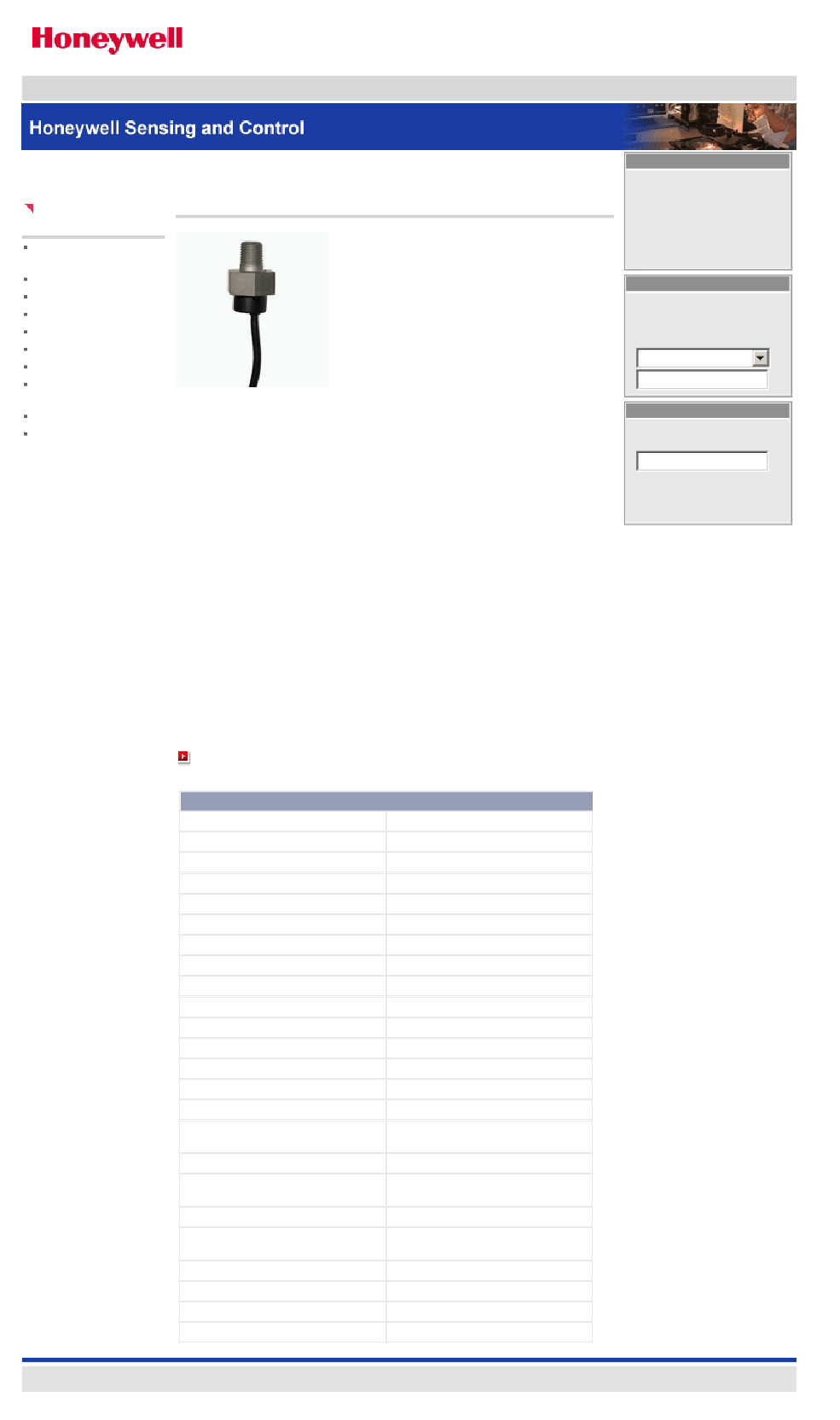

236PC100GW
Pressure Sensors: Measurement
Type: Gage, Vacuum Gage;
Unamplified; Range: ± 100 psi
Keyword Search
Search for product and
support information.
All Sensing and Control
Actual product appearance may vary.
Product Search
Features
Robust package
?
Prewired
?
Temperature compensated for span
over 0 °C to 50 °C [32 °F to 122 °F]
?
Calibrated null and span
?
?
?
?
?
?
?
?
?
?
Potential Applications
Medical
Oxygen and nitrogen gas distribution in
hospitals
Respirators and ventilators
Environmental
Water control valves
Instrumentation
Irrigation equipment
Industrial Instrumentation
Robotics
Pressure valves
Leak detection
Air compressors
Part number search:
Use (*) to expand search
Specification Search
Description
236PC Series pressure sensors provide a millivolt output that is proportional to the
pressure applied. They operate from 0 psi to 5.0 psi and 0 psi to 150 psi using a
single, positive supply voltage ranging from 10.0 Vdc to 16.0 Vdc.
Supporting Documentation
Engineering
Drawing
Product Specifications
Signal Conditioning
Pressure Range
Maximum Overpressure
Supply Voltage
Compensated
Output Calibration
Response Time
Port Style
Package Style
Typical Sensitivity
Full Scale Span
Null Offset
Null Shift over Temperature
Repeatability & Hysteresis Error
Shock
Vibration
Weight
Operating Temperature Range
Compensated Temperature Range
Storage Temperature Range
UNSPSC Code
UNSPSC Commodity
Availability
Series Name
Unamplified
± 100 psi
225 psi
10 Vdc typ., 16.0 Vdc max.
No
Yes
1 ms max.
Threaded 1/4
Honeywell
1 mV/psi
100 mV typ.
0 mV typ.
± 3.0 mV typ.
± 0.25 % span typ.
Qualification tested to 150 g
MIL - STD - 202 Method 213 (150 g
half sine 11 ms)
57 g [2 oz]
- 30 °C to 70 °C [
F]
- 22 °F to 1581 °
- 28 UNF
- 200PC
0 °C to 50 °C [32 °F to 122 °F]
- 40 °C to 105 °C [
F]
411121
411121 Transducers
Global
236PC
- 40 °F to 221 °
