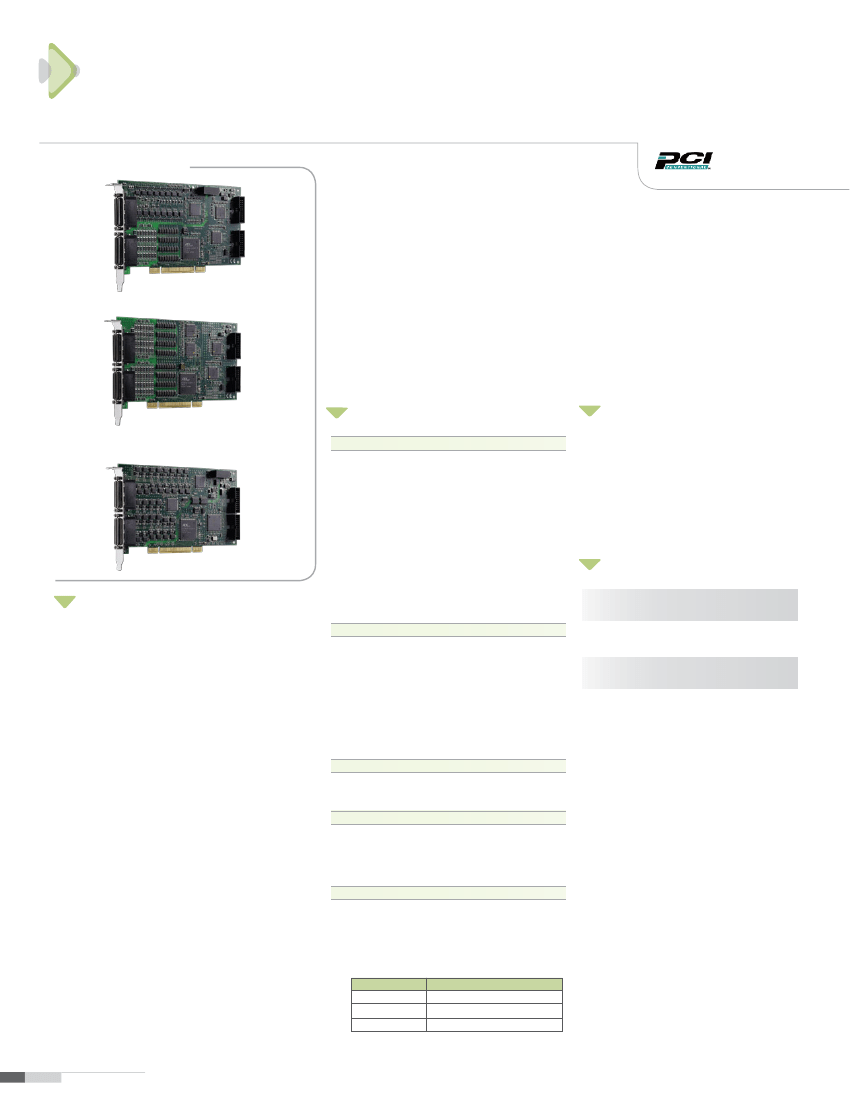

PCI-7442/7443/7444
High-density 128-CH Isolated DIO/DI/DO Cards
Introduction
Responding to the industry’s need for high-density digital input/output modules, the ADLINK PCI-744X DIO
card series delivers up to 128 opto-isolated channels for a wide range of demanding PCI-based applications.
The PCI-744X card series comes with 64 (PCI-7442) or 128 (PCI-7443) opto-isolated digital inputs and 64 (PCI-7442)
or 128 (PCI-7444) opto-isolated digital outputs. With a 1250 V
RMS
(excluding cables) channel-to-system isolation protection,
these cards are shielded from damage caused by accidental contact with external voltage while promoting simple ground
connections. All input channels are identical non-polarity with each line isolated and suited to collect digital inputs even
at high-noise environments. Featuring a Change-of-State (COS) interrupt function, the PCI-7442/PCI-7443 instantly
generates an interrupt request to the PCI controller when it detects a sharp change in the logical state of any of its digital
inputs.
For easy identification in systems with multiple DIO cards installed, the cards are also equipped with a board ID design
that enables fast and convenient card detection and troubleshooting.
PCI-7442
PCI-7443
Specifications
Isolated Digital Input
■
Terminal Boards & Cables
■
DIN-68S-01
T
erminal Board with One 68-pin SCSI-II Connector
and DIN-Rail Mounting (Cables are not included.)
■
ACL-10568D
Dual-68-Pin Head to T 68-Pin SCSI-VHDCI Cable
wo
■
ACL-10568F
68-Pin SCSI-VHDCI Flat Cable
* For more information on mating cables, please refer to P2-61/62.
■
■
■
PCI-7444
■
■
■
Features
Supports universal 32-bit 3.3 V and 5 V PCI bus, plug-and-play
High-density, opto-isolated digital input and/or digital output
• PCI-7442: 64-CH digital input and 64-CH digital output
• PCI-7443: 128-CH digital input
• PCI-7444: 128-CH digital output
■
1250 V
RMS
isolation voltage
■
Programmable Change-of-State (COS) detection for all
digital input channels
■
Voltage protection of up to 28 V for isolated input
■
Dry contact input (PCI-7442 only)
■
Up to 300 mA high-output driving capability for all output
channels
■
250 mA sink current on isolated output channels
■
Digital output status read back function
■
Digital output value retained after hot system reset
■
Programmable power-up DO initial status
■
Programmable safety DO status functions when
WDT interruption occurs
■
Watchdog timer counter prevents system crashes
(PCI-7442/PCI-7444 only)
■
32-CH programmable TTL I/O function
■
Board ID feature
■
■
■
Number of channels
•
64 (PCI-7442)
•
128 (PCI-7443)
Maximum input range: 28 V, non-polarity
Digital logic levels: 0 V to 28 V, non-polarity
•
Input high voltage: 5 V to 28 V
•
Input low voltage: 0 V to 1.5 V
Input resistance: 4.7 kΩ @ 0.5 W
ESD protection CKT switch (forward)
Isolation voltage: 1250 V
RMS
channel-to-system
Interrupt sources: 64/128-channel Change-of-State
(COS)
Data transfer: programmed I/O
Ordering Information
■
PCI-7442
64-CH Isolated DI and 64-CH Isolated DO card
■
PCI-7443
128-CH Isolated DI card
■
PCI-7444
128-CH Isolated DO card
Isolated Digital Output
■
■
■
■
■
■
Number of channels:
•
64 (PCI-7442)
•
128 (PCI-7444)
Output type: open drain Power MOSFET driver
Output range: 5 V to 40 V
Sink current: 250 mA for all channel @ 100% duty
(300 mA max.)
Isolation voltage: 1250 V
RMS
channel-to-system
Data transfer: programmed I/O
Isolation +5 V Power Supply (PCI-7442/7444 only)
■
■
Output Voltage: +5 V
Output Current: 100 mA max. (@ 40˚C)
Safety Functions (PCI-7442/7444 only)
■
■
Programmable power-up DO status
Watchdog timer
•
Base clock available: 10 MHz, fixed
•
Counter width: 32-bit
I/O connector: 68-pin Dual port VHDCI female
Operating temperature: 0˚C to 60˚C
Storage temperature: -20˚C to 80˚C
Relative humidity: 5% to 95%, non-condensing
Power requirements
Device
+5 V
■
Operating Systems
•
Windows 7/Vista/XP/2000/2003 Server
•
Linux
■
Recommended Software
•
AD-Logger
•
VB.NET/VC.NET/VB/VC++/BCB/Delphi
•
DAQBench
■
Driver Support
•
DAQPilot for LabVIEW™
•
DAQ-MTLB for MATLAB
®
•
PCIS-DASK for Windows
•
PCIS-DASK/X for Linux
General Specifications
■
■
■
■
■
PCI-7442
PCI-7443
PCI-7444
■
800 mA typical
550 mA typical
800 mA typical
Dimension: 175 mm x 107 mm
