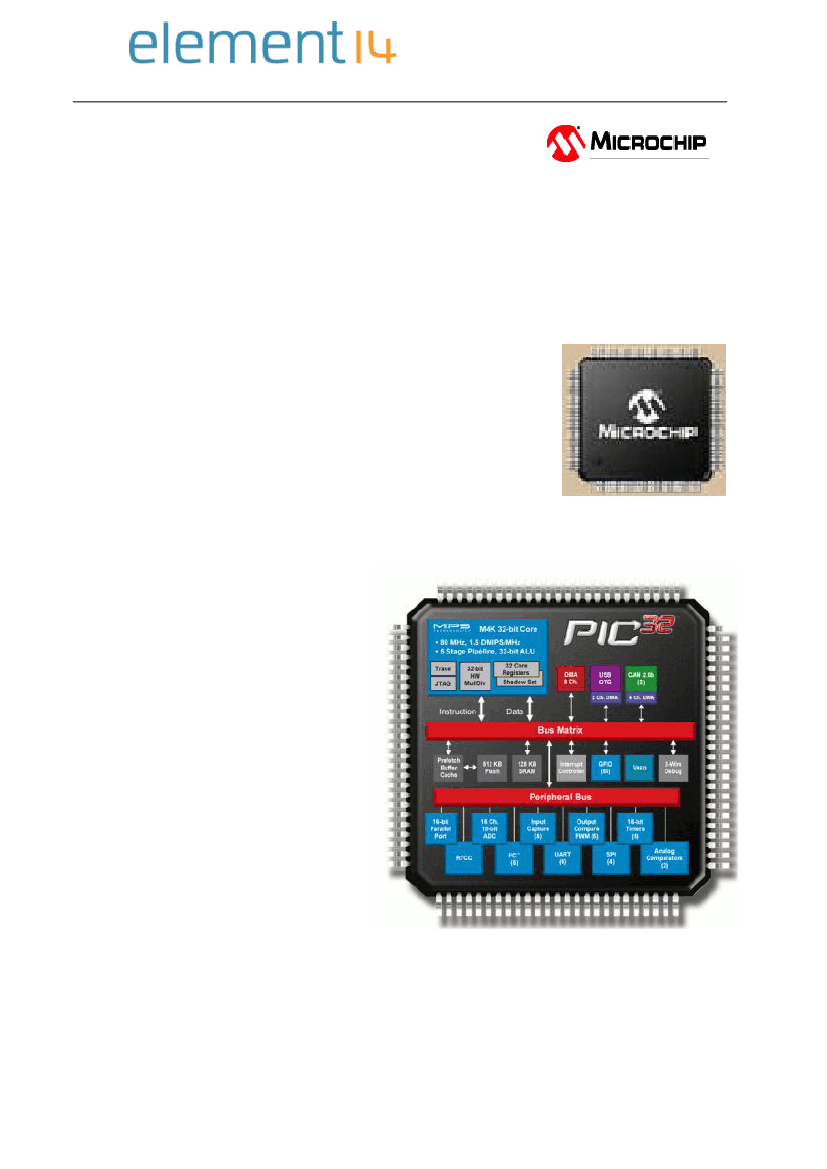

PIC32MX575FXXXX USB, CAN and Ethernet 32-bit Flash
Microcontroller
General Description:
The PIC32MX family processors are complex systems-on-a-chip that
contains many features. PICMX32MX is a high-performance RISC CPU,
which can be programmed in 32-bit and 16-bit modes, and even mixed
modes. The PIC32MX MCU contains a high-performance interrupt controller,
DMA controller, USB controller, in-circuit debugger, high performance
switching matrix for high-speed data accesses to the peripherals, on-chip
data RAM memory, which hides the latency of the Flash,gives zero Wait state
equivalent performance.
Key Features:
Microcontroller:
• Operating voltage range of 2.3V to 3.6V
• 256K to 512K Flash memories (plus an
additional
12 KB of Boot Flash)
• 64K to 128K SRAM memory
• Pin-compatible with most PIC24/dsPIC®
devices
• Multiple power management modes
• Multiple interrupt vectors with individually
programmable priority
• Fail-Safe Clock Monitor mode
• Configurable Watchdog Timer with on-chip
Low-Power RC oscillator for reliable operation
Available
packages
in
SO-8,
PSOP-8
or
LLP-16
Peripheral Features:
• Atomic Set, Clear, and Invert operation on select peripheral registers
• 8-channel hardware DMA with automatic data size detection
• USB 2.0-compliant full-speed device and On-The-Go (OTG) controller:
- Dedicated DMA channels
• 10/100 Mbps Ethernet MAC with MII and RMII interface:
Legal Disclaimer:
The content of the pages of this website is for your general information and use only. It is subject to change without notice. From time to time, this website may
also include links to other websites. These links are provided for your convenience to provide further information. They do not signify that we endorse the website(s). We have no
responsibility for the content of the linked website(s). Your use of any information or materials on this website is entirely at your own risk, for which we shall not be liable. It shall
be your own responsibility to ensure that any products, services or information available through this website meet your specific requirements.
Your Electronic Engineering Resource
- Dedicated DMA channels
• CAN module:
- 2.0B Active with DeviceNet™ addressing support
- Dedicated DMA channels
• 3 MHz to 25 MHz crystal oscillator
• Internal 8 MHz and 32 kHz oscillators
• Six UART modules with:
- RS-232, RS-485 and LIN 1.2 support
- IrDA® with on-chip hardware encoder and decoder
• Up to four SPI modules
• Up to five I2C™ modules
• Separate PLLs for CPU and USB clocks
• Parallel master and slave port (PMP/PSP) with 8-bit and 16-bit data and up to 16 address lines
• Hardware Real-Time Clock/Calendar (RTCC)
• Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
• Five Capture inputs
• Five Compare/PWM outputs
• Five external interrupt pins
• High-speed I/O pins capable of toggling at up to 80 MHz
• High-current sink/source (18 mA/18 mA) on all I/O pins
• Configurable open-drain output on digital I/O pins
Debug Features:
• Two programming and debugging Interfaces:
- 2-wire interface with unintrusive access and real-time data exchange with application
- 4-wire MIPS® standard enhanced JTAG interface
• Unintrusive hardware-based instruction trace
• IEEE Standard 1149.2-compatible (JTAG) boundary scan
Analog Features:
• Up to 16-channel 10-bit Analog-to-Digital Converter:
- 1 Msps conversion rate
- Conversion available during Sleep and Idle
• Two Analog Comparators
• 5V tolerant input pins (digital pins only)
Applications:
Audio & Speech
Graphics
CAN
Ethernet
Automobile
Legal Disclaimer:
The content of the pages of this website is for your general information and use only. It is subject to change without notice. From time to time, this website may
also include links to other websites. These links are provided for your convenience to provide further information. They do not signify that we endorse the website(s). We have no
responsibility for the content of the linked website(s). Your use of any information or materials on this website is entirely at your own risk, for which we shall not be liable. It shall
be your own responsibility to ensure that any products, services or information available through this website meet your specific requirements.
Your Electronic Engineering Resource
Related Products Information:
Mfr Part #
PIC32MX575F256H-80I/MR
PIC32MX575F256H-80I/PT
PIC32MX575F512L-80I/BG
PIC32MX575F512L-80I/PF
PIC32MX575F512L-80I/PT
PIC32MX575F256L-80I/PT
PIC32MX575F256L-80I/BG
PIC32MX575F256L-80I/PF
PIC32MX575F512H-80I/MR
PIC32MX575F512H-80I/PT
Farnell #
1778953
1778494
1778959
1778960
1778962
1778956
1778954
1778955
1778957
1778958
Newark #
25R8378
25R8379
25R8390
53R0306
25R8391
25R8383
25R8382
53R0304
25R8386
25R8387
Description
MCU, 32BIT, 256K FLASH, USB, 64QFN
MCU, 32BIT, 256K FLASH, USB, 64TQFP
MCU, 32BIT, 512K FLASH, USB, 121BGA
MCU, 32BIT, 512K FLASH, USB, 100TQFP
MCU, 32BIT, 512K FLASH, USB, 100TQFP
MCU, 32BIT, 256K FLASH, USB, 100TQFP
MCU, 32BIT, 256K FLASH, USB, 121BGA
MCU, 32BIT, 256K FLASH, USB, 100TQFP
MCU, 32BIT, 512K FLASH, USB, 64QFN
MCU, 32BIT, 512K FLASH, USB, 64TQFP
