TS4K40 thru TS4K80
Taiwan Semiconductor
CREAT BY ART

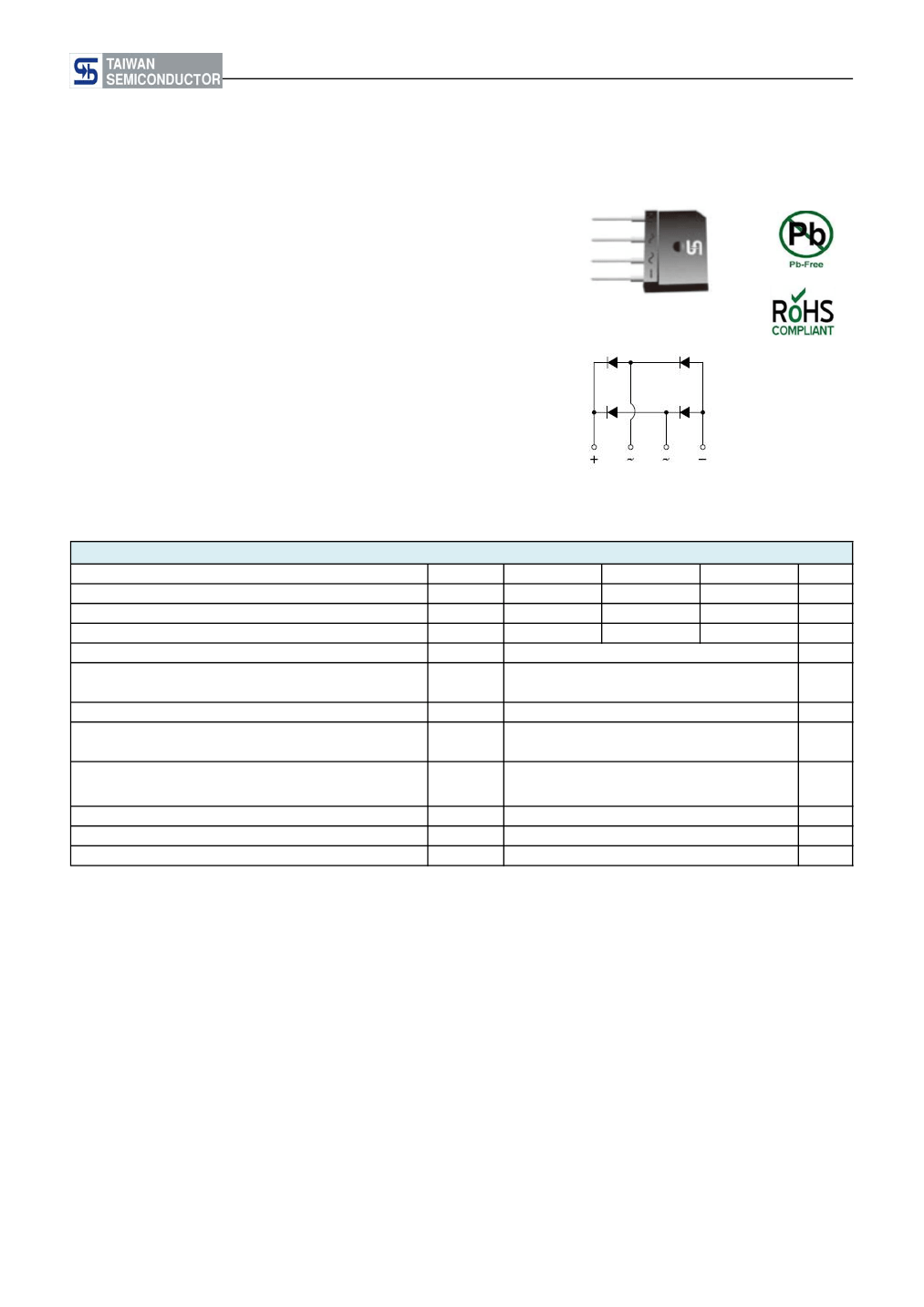

FEATURES
- Glass passivated junction
- Ideal for printed circuit board
- Typical IR less than 0.1μA
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Glass Passivated Bridge Rectifiers
TS4K
MECHANICAL DATA
Case:
TS4K
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
Polarity as marked on the body
Mounting torque:
8.17 in-lbs maximum
Weight:
4 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage
(Note 1)
Maximum DC reverse current
at rated DC blocking voltage
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
I
F
= 2 A
I
F
= 4 A
T
J
=25
℃
T
J
=125℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θJC
T
J
T
STG
TS4K40
400
280
400
TS4K60
600
420
600
4
120
60
1.0
1.1
10
500
5.5
- 55 to +150
- 55 to +150
O
TS4K80
800
560
800
Unit
V
V
V
A
A
A
2
s
V
μA
C/W
O
O
C
C
Document Number: DS_D1311036
Version: D13
TS4K40 thru TS4K80
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
TS4Kxx
(Note 1)
PACKING CODE GREEN COMPOUND
CODE
D3
X0
Suffix "G"
TS4K
TS4K
20 / TUBE
Forming
PACKAGE
PACKING
Note 1: "xx" defines voltage from 400V (TS4K40) to 800V (TS4K80)
EXAMPLE
PREFERRED P/N
TS4K80 D3
TS4K80 D3G
PART NO.
TS4K80
TS4K80
PACKING CODE
D3
D3
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

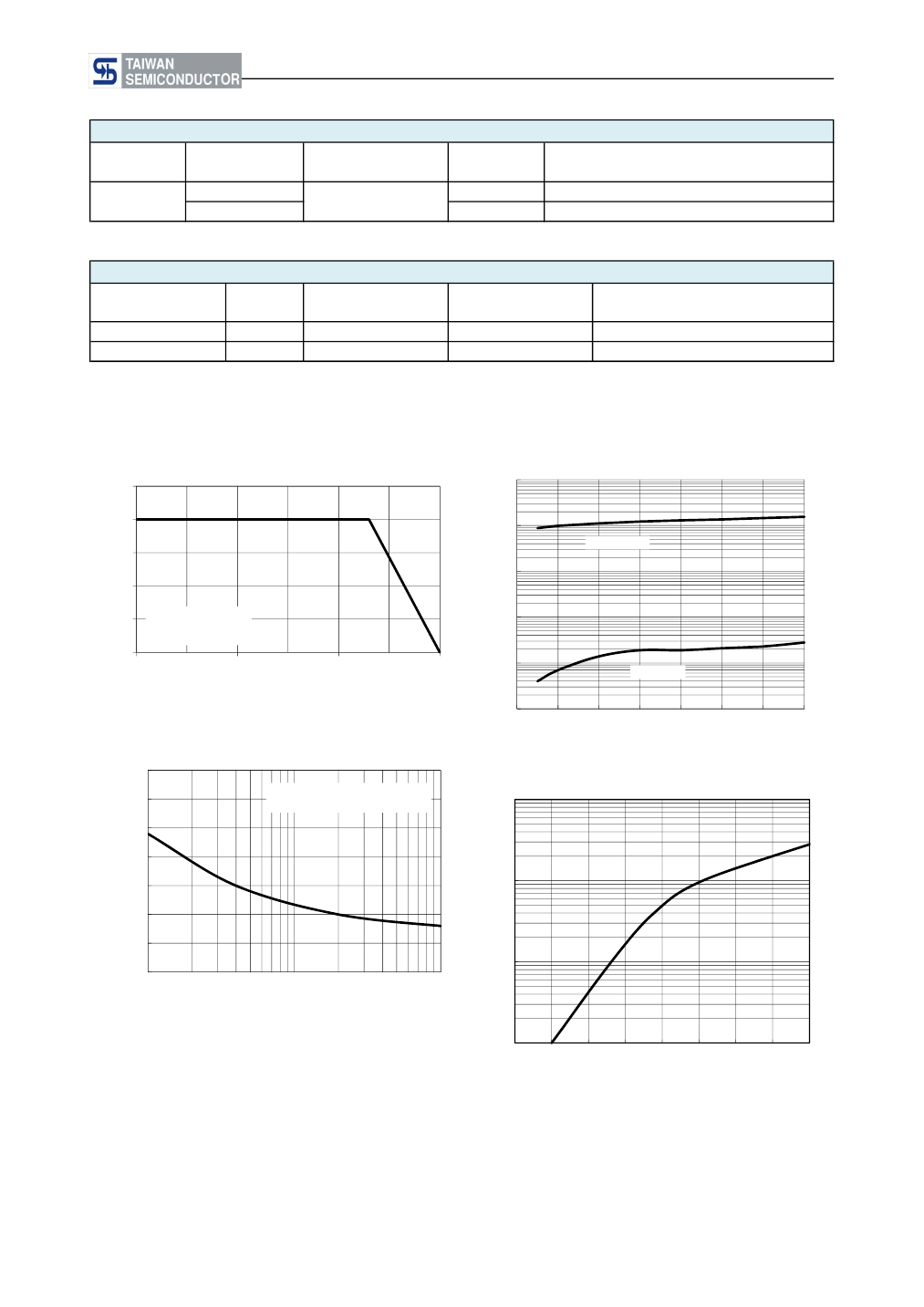

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- MAXIMUM FORWARD CURRENT
DERATING CURVE
5
4
3
2
1
0
0
50
100
150
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
INSTANTANEOUS REVERSE CURRENT (μA)
100
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
AVERAGE FORWARD
A
CURRENT (A)
10
TJ=125℃
1
0.1
0.01
TJ=25℃
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
175
PEAK FORWARD SURGE CURRENT (A)
150
125
100
75
50
25
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
INSTANTANEOUS FORWARD CURRENT (A)
8.3ms Single Half Sine Wave
JEDEC Method
100
FIG. 4- TYPICAL FORWARD CHARACTERISTICS
10
1
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
INSTANTANEOUS FORWARD VOLTAGE (V)
1.4
Document Number: DS_D1311036
Version: D13
TS4K40 thru TS4K80
Taiwan Semiconductor
FIG. 5- TYPICAL JUNCTION CAPACITANCE
300
J UNCTION CAPACITANCE (pF)
A
250
200
150
100
50
0
0.1
1
10
100
REVERSE VOLTAGE (V)
f=1.0MHz
Vsig=50mVp-p

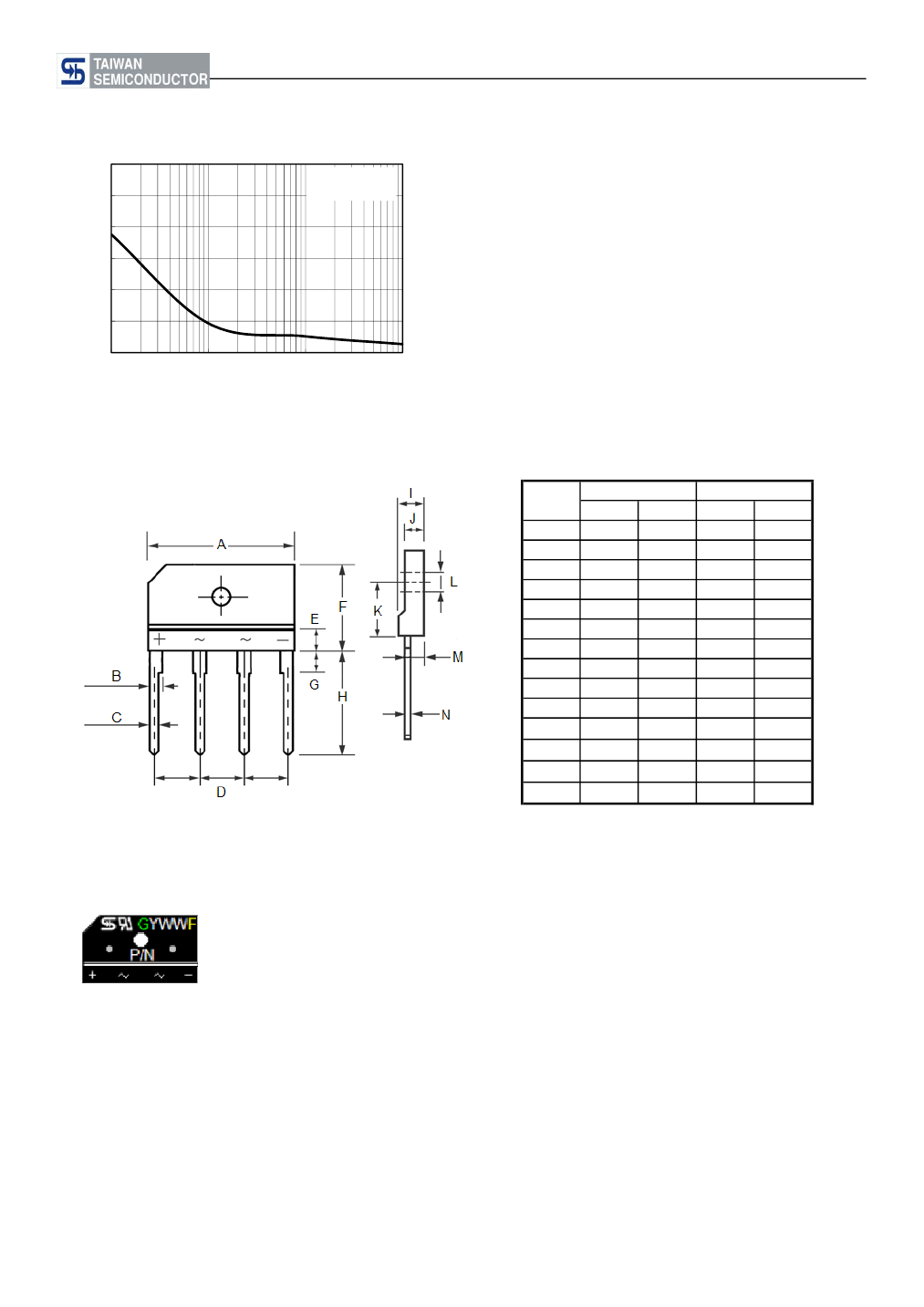

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
24.70
2.00
0.90
7.30
3.00
14.70
3.30
17.00
4.40
3.40
9.30
3.10
3.10
0.50
Max
25.30
2.30
1.10
7.70
5.00
15.30
3.70
18.00
4.80
3.80
9.60
3.60
3.40
0.70
Unit (inch)
Min
0.972
0.079
0.035
0.287
0.118
0.579
0.130
0.669
0.173
0.134
0.366
0.122
0.122
0.020
Max
0.996
0.091
0.043
0.303
0.197
0.602
0.146
0.709
0.189
0.150
0.378
0.142
0.134
0.028
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1311036
Version: D13
TS4K40 thru TS4K80
Taiwan Semiconductor
