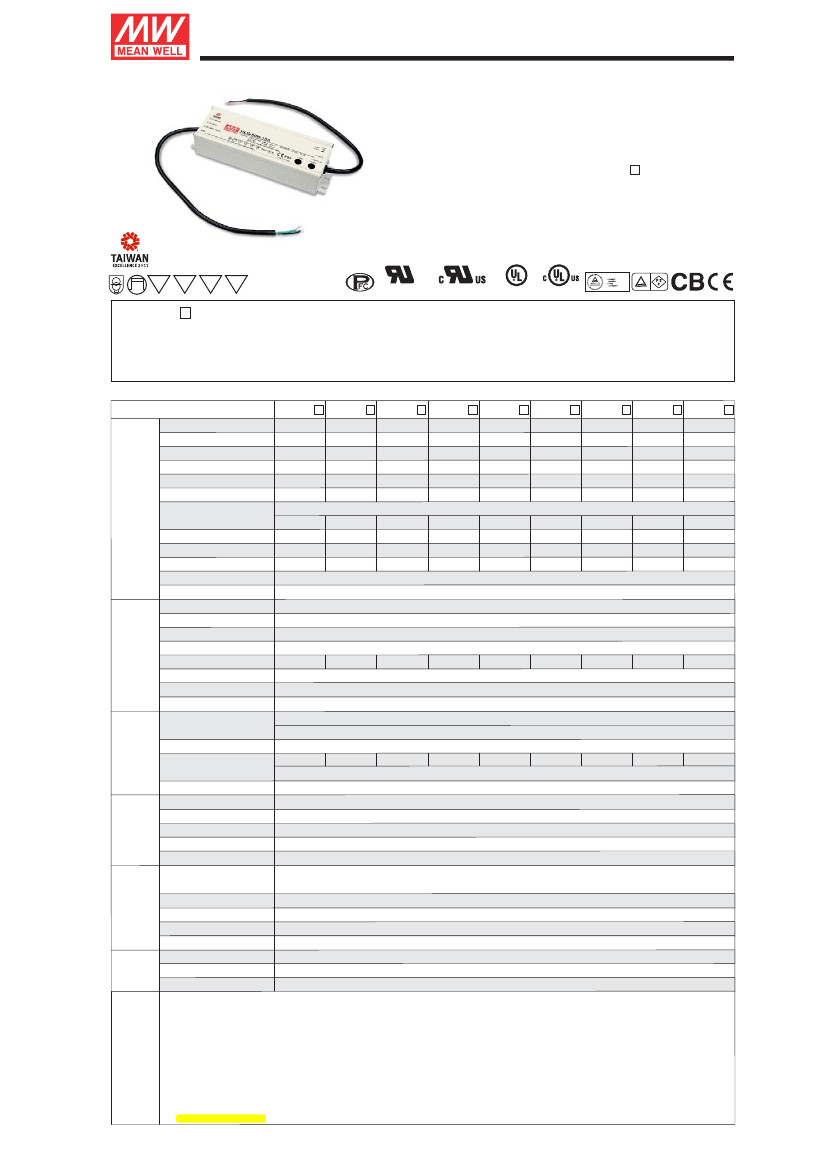

80W Single Output Switching Power Supply
■
Features :
HLG-80H
series
•
Universal AC input / Full range (up to 305VAC)
•
Built-in active PFC function
•
Protections: Short circuit / Over current / Over voltage / Over temperature
•
Cooling by free air convection
•
OCP point adjustable through output cable or internal potentiometer
•
IP67 / IP65 design for indoor or outdoor installations
•
"UL8750 listed" safety approved for HLG-80H- BL
•
Class 2 power unit
•
Three in one dimming function (1~10Vdc or PWM signal or resistance)
•
Suitable for LED lighting and moving sign applications
•
Compliance to worldwide safety regulations for lighting
•
Suitable for dry / damp / wet locations
•
5 years warranty (Note.10)
F
110
M
M
SELV
IP65 IP67
(for HLG-80H-48/54 only) (except for HLG-80H-48/54)
(for HLG-80H-48/54BL only) (for HLG-80H-12~42BL only)
(except for BL type) (except for HLG-80H-48/54BL)
HLG-80H-12 A
Blank : IP67 rated. Cable for I/O connection.
A : IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
B : IP67 rated. Constant current level adjustable through output cable with 1~10Vdc or 10V PWM signal or resistance.
BL
(option)
:
Contact MEAN WELL for details.
D
(option) : IP67 rated. Timer dimming function, contact MEAN WELL for details.
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
RATED POWER
HLG-80H-12
12V
5A
60W
CONSTANT CURRENT REGION
Note.4
7.2 ~12V
HLG-80H-15
15V
9 ~ 15V
5A
75W
150mVp-p
HLG-80H-20
20V
12 ~ 20V
4A
80W
150mVp-p
17 ~ 22V
2.4 ~ 4A
±1.0%
HLG-80H-24
24V
14.4 ~ 24V
3.4A
81.6W
150mVp-p
22 ~ 27V
2.04 ~ 3.4A
±1.0%
HLG-80H-30
30V
18 ~ 30V
2.7A
81W
200mVp-p
27 ~ 33V
1.62 ~ 2.7A
±1.0%
HLG-80H-36
36V
21.6 ~ 36V
2.3A
82.8W
200mVp-p
33 ~ 40V
1.38 ~ 2.3A
±1.0%
HLG-80H-42
42V
25.2 ~ 42V
1.95A
81.9W
200mVp-p
38 ~ 46V
HLG-80H-48
48V
28.8 ~ 48V
1.7A
81.6W
200mVp-p
43 ~ 53V
HLG-80H-54
54V
32.4 ~ 54V
1.5A
81W
200mVp-p
49 ~ 58V
0.9 ~ 1.5A
±1.0%
RIPPLE & NOISE (max.)
Note.2
150mVp-p
OUTPUT
VOLTAGE ADJ. RANGE
Note.6
10.8 ~ 13.5V 13.5 ~ 17V
CURRENT ADJ. RANGE
3 ~ 5A
3 ~ 5A
±2.0%
Can be adjusted by internal potentiometer A type only
1.17 ~ 1.95A 1.02 ~ 1.7A
±1.0%
±1.0%
VOLTAGE TOLERANCE
Note.3
±2.5%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±1.5%
±1.0%
±0.5%
±0.5%
±0.5%
±0.5%
±2.0%
Note.8
1200ms,80ms/115VAC 500ms,80ms/230VAC at full load ; B type 1200ms,200ms/115VAC 500ms,200ms/230VAC at 95% load
16ms at full load
Note.5
90 ~ 305VAC
230VAC /115VAC
127 ~ 431VDC
47 ~ 63Hz
INPUT
POWER FACTOR (Typ.)
PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading
≧
60% at 115VAC/230VAC input and output loading
≧
75% at 277VAC input
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER CURRENT
Note.4
90%
91%
89%
90.5%
0.85A / 115VAC
0.425A / 230VAC
0.4A / 277VAC
μ
COLD START 70A(t
width
=485 s measured at 50% I
peak
) at 230VAC
<0.75mA / 277VAC
95 ~ 108%
88%
91%
91%
91%
91%
PROTECTION
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
Note.7
SAFETY & WITHSTAND VOLTAGE
EMC
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
OTHERS
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Hiccup mode, recovers automatically after fault condition is removed
48 ~ 58V
35 ~ 43V
14 ~ 17V
18 ~ 24V
28 ~ 35V
41 ~ 49V
23 ~ 30V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
-40 ~ +70
℃
(Refer to "Derating Curve")
20 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 60
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
54 ~ 63V
59 ~ 68V
UL8750, CSA C22.2 No. 250.0-08(except for HLG-80H-48/54V & HLG-80H-48/54BL), UL8750 listed for HLG-80H-
□
BL
EN61347-1, EN61347-2-13 independent
, J61347-1, J61347-2-13,
IP65 or IP67
approved ; Design refer to UL60950-1, TUV EN60950-1
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to EN55015, EN61000-3-2 Class C (
≧
60% load) ; EN61000-3-3
NOTE
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
357.8K hrs min. MIL-HDBK-217F (25
℃
)
195.6*61.5*38.8mm (L*W*H)
DIMENSION
0.84Kg; 16pcs/14.4Kg/0.54CUFT
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type only.
7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.
8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. Refer to warranty statement.
11.To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently
connected to the mains.
File Name:HLG-80H-SPEC 2013-12-25
80W Single Output Switching Power Supply
Power Factor Characteristic
Constant Current Mode
1 .0 0
0 .9 8
0 .9 6
0 .9 4
0 .9 2
0 .9 0
0 .8 8
0 .8 6
0 .8 4
0 .8 2
0 .8 0
0 .7 8
50%
60%
70%
80%
90%
100%
(80W)
HLG-80H
series
2 7 7 V ac
2 3 0 V ac
1 1 5 V ac
PF
LOAD

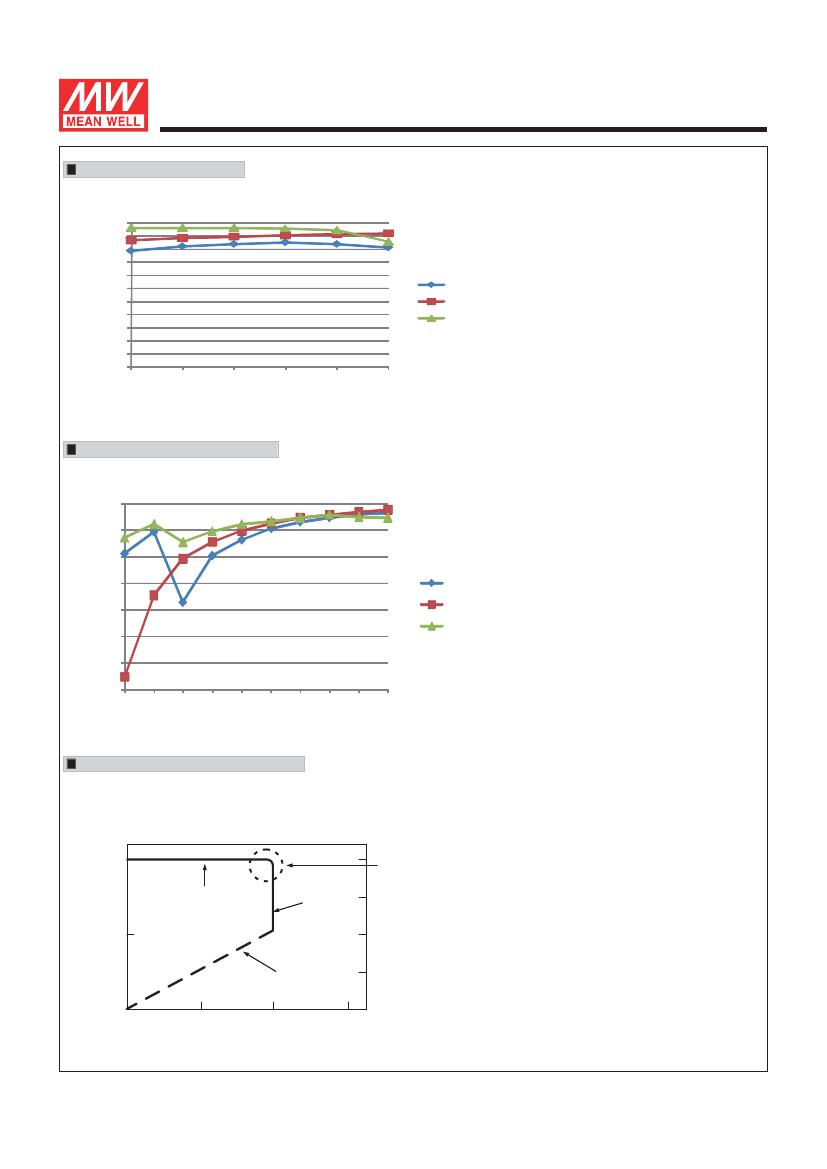

EFFICIENCY vs LOAD (48V Model)
HLG-80H series possess superior working efficiency that up to 91% can be reached in field applications.
92
88
EFFICIENCY (%)
84
80
76
72
68
64
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
LOAD
277Vac
230Vac
115Vac
DRIVING METHODS OF LED MODULE
There are two major kinds of LED drive method "direct drive" and "with LED driver".
A typical LED power supply may either work in "constant voltage mode (CV) or constant current mode (CC)" to drive the LEDs.
Mean Well's LED power supply with CV+ CC characteristic can be operated at both CV mode [with LED driver, at area (A)] and CC mode [direct drive, at area (B)].
100
(A) Constant
Voltage area
(B)
Constant
Current area
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
60
(max.)
(C)
Hiccup
Protection
50
100
Io (%)
Vo(%)
Typical LED power supply I-V curve
File Name:HLG-80H-SPEC 2013-12-25
80W Single Output Switching Power Supply
DIMMING OPERATION
HLG-80H
series
AC/L(Brown)
AC/N(Blue)
FG (Green/Yellow)
HLG-80H
+V(Red)
-V(Black)
DIM+(Blue)
DIM-(White)
※
Built-in 3 in 1 dimming function, IP67 rated. Output constant current level can be adjusted through output cable by connecting a resistance or
1 ~ 10Vdc or 10V PWM signal between DIM+ and DIM-.
※
Please DO NOT connect "DIM-" to "-V".
※
Reference resistance value for output current adjustment (Typical)
Single driver
10KΩ 20KΩ 30KΩ 40KΩ 50KΩ 60KΩ 70KΩ 80KΩ 90KΩ 100KΩ
Resistance
Multiple drivers
value
(N=driver quantity for synchronized
10K
Ω
/N 20K
Ω
/N 30K
Ω
/N 40K
Ω
/N 50K
Ω
/N 60K
Ω
/N 70K
Ω
/N 80K
Ω
/N 90K
Ω
/N 100K
Ω
/N
dimming operation)
OPEN
-----
102%~108%
Percentage of rated current
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
※
1 ~ 10V dimming function for output current adjustment (Typical)
Dimming value
Percentage of rated current
1V
10%
2V
20%
3V
30%
4V
40%
5V
50%
6V
60%
7V
70%
8V
80%
9V
90%
10V
100%
OPEN
102%~108%
※
10V PWM signal for output current adjustment (Typical): Frequency range :100Hz ~ 3KHz
Duty value
Percentage of rated current
10%
10%
20%
20%
30%
30%
40%
40%
50%
50%
60%
60%
70%
70%
80%
80%
90%
90%
100%
100%
OPEN
102%~108%
※Using
the built-in dimming function on B-type model can't turn the lighting fixture totally dark. Please refer to the connection method below to
achieve 0% brightness of the lighting fixture connecting to the LED power supply unit.
※Direct
connecting to LEDs is suggested, but is not suitable for using additional drivers.
Dimming connection diagram for turning the lighting fixture ON/OFF :
N
FG
L
Relay
Switch
Adjuster
0~100K Ohms resistance
1~10V DC Voltage
10V PWM Signal
Green/
Yellow
Brown
Blue
AC/L
AC/N
HLG-80H
B Type
DIM+
DIM-
V(-)
V(+)
Blue
White
Black
Red
LED Lighting Fixture
Using a switch and relay can turn ON/OFF the lighting fixture.
1.Output constant current level can be adjusted through output cable by connecting a resistance or 1~10Vdc or 10V PWM signal between DIM+ and DIM-.
2.The LED lighting fixture can be turned ON/OFF by the switch.
File Name:HLG-80H-SPEC 2013-12-25
