Q5-3X_13: DescriptionHEAT SHRINK MEDIUM / HEAVY WALL - ADHESIVE LINED; File Size642KB，1 Pages; ManufacturerQualtek Electronics Corporation; Websitehttp://www.qualtekusa.com/

Download Datasheet View All

Q5-3X_13 Overview

HEAT SHRINK MEDIUM / HEAVY WALL - ADHESIVE LINED

Preview

Download Datasheet

View All

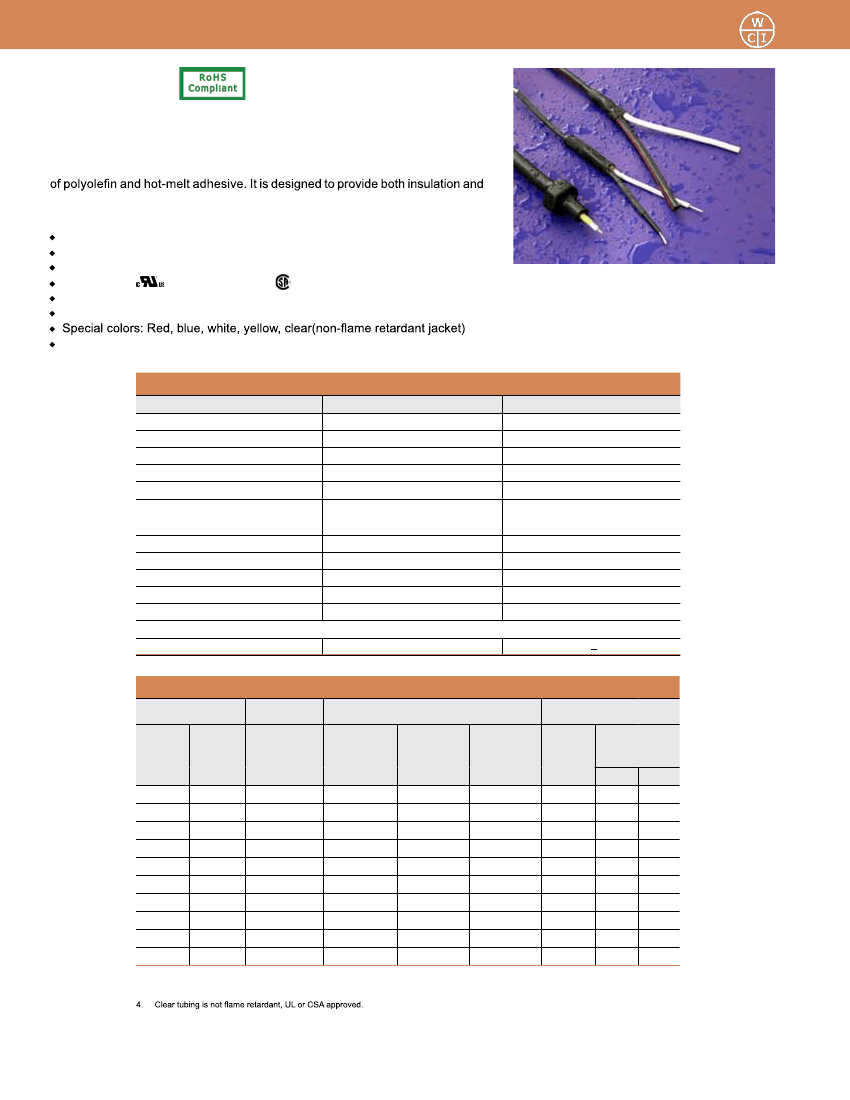

HEAT SHRINK MEDIUM / HEAVY WALL - ADHESIVE LINED

Q5-3X

DUAL WALL, ADHESIVE LINED, FLEXIBLE POLYOLEFIN TUBING

SHRINK RATIO 3:1

Features/Applications

Heat shrinkable dual wall adhesive lined tubing is manufactured by co-extrusion

sealing for protection against water and moisture of auto wires, shipping cables,

metal tubes and bundled wires.

Operating temperature: -55°C to +125°C

Minimum shrink temperature: 80°C

Full recovery temperature: 110°C

Approvals

File No. E236137,

File No. 242540, 125°C, VW-1, 600V

Meets: Sony-SS-00259, SAE-AMS-DTL-23053/4

Standard color: Black

RoHS Compliant

Technical Data

Property

Operating Temperature

Tensile Strength

Ultimate Elongation

Longitudinal Shrinkage

Eccentricity

Heat Aging

Tensile Strength

Ultimate Elongation

Flammability

Voltage Withstand

Volume Resistance

Copper Stability

Copper Corrosion

Property of adhesive

Ring-Ball Soft Point

ASTM E28

95°C + 5°C

Test Method

IEC 216

ASTM D 2671

UL 224

ASTM D 2671

158°C, 168 hrs.

VW-1

ASTM D 2671 / AC2500V. 1 min.

ASTM D 2671

UL 224

Typical Data

-55°C to +125°C

>12 MPa

> 400%

0 ± 10%

< 40%

> 11 MPa

> 350 %

Pass

No Breakdown

>10

Ω.cm

Pass

No Corrosion

Product Dimensions

Size

As Supplied

(mm)

Inside

Diameter

(min.)

3.0

4.8

6.0

9.0

12.0

19.0

24.0

30.0

40.0

50.0

Inside

Diameter

(max.)

1.0

1.5

2.0

3.0

4.0

6.0

8.0

10.0

13.0

19.0

After Recovered

(mm)

Total Wall

Thickness

(min.)

1.00

1.40

1.60

2.15

2.40

Adhesive

Thickness

(nom.)

0.5

0.6

0.8

1.0

Standard

Packaging

Cut to Length

Standard

Pcs.

Spool

*(QB)

*(SS)

Qty per bag

(Meter)

6”

48”

200

100

Inch

1/8

3/16

1/4

3/8

1/2

3/4

1 1/4

1 1/2

3.0/1.0

4.8/1.5

6.0/2.0

9.0/3.0

12.0/4.0

19.0/6.0

24.0/8.0

30.0/10.0

40.0/13.0

50.0/19.0

Notes:

1. * See page 13 - Part Number Guide for standard packaging codes.

2. Cross Reference Guide located on page 3.

3. Special sizes, packaging, colors and cut pieces are available upon request.
