ASL30G
DC-6000MHz MMIC LNA
Features
·
·
·
·
·
Two-stage LNA
30 dB gain & 0.8 dB NF at 1575 MHz
Description
ASL30G is a two-stage LNA for GPS receiver low noise
block. It has a low noise, high gain, and high linearity
over a wide range of frequency up to 6 GHz. It is also
suitable for use in the low noise amplifier block of the
mobile wireless system. The amplifier is available in an
SOT-363 package and passes the stringent DC, RF, and
reliability tests.
Package Style: SOT-363
Unconditionally
Stable
Need only 5 components
3 kV Contact Discharge ESD Rating
achievable with one external L (Refer
to an application circuit at page 6)
Typical Performance
Parameters
Frequency
Gain
S11
S22
S12
Output IP3
1)
Units
MHz
dB
dB
dB
dB
dBm
dB
dBm
mA
V
900
36
-18
-18
-40
22
0.9
11
20
3
1575
30
-20
-16
-38
22
0.8
11
20
3
Typical
1950
23
-20
-18
-34
21
1.1
11
20
3
2400
23
-20
-18
-34
21
1.1
11
20
3
3500
17
-18
-13.5
-28
18
1.6
7.5
22
3
Application Circuit
·900
MHz ( 3 V / 4 V )
·1575
MHz ( 3 V / 4 V / 1.8 V )
·1575
MHz
( Robust ESD /
±
3 kV )
·1950
MHz ( 3 V / 4 V )
·2400
MHz ( 3 V / 4 V )
·3300
~ 3800 MHz ( 3 V / 4 V )
Noise Figure
Output P1dB
Current
Device Voltage
1) OIP3 is measured with two tones at an output power of -3 dBm/tone separated by 1MHz.
Product Specifications*
Parameters
Frequency
Gain
S11
S22
S12
Output IP3
Noise Figure
Output P1dB
Current
Device Voltage
Units
MHz
dB
dB
dB
dB
dBm
dB
dBm
mA
V
Min
Typ
1575
30
-20
-16
-38
22
0.8
11
20
3
Max
* 100% in-house DC & RF testing is done on packaged products before taping.
Absolute Maximum Ratings
Parameters
Operating Case Temperature
Storage Temperature
Device Voltage
Operating Junction Temperature
Input RF Power (CW, 50ohm matched)*
Rating
-40 to
+85°C
-40 to
+150°C
+5 V
+150°C
22 dBm
Pin Configuration
Pin No.
1
2,4,5
3
6
Function
VDD
GND
RF OUT
RF IN
1/15
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2012
ASL30G
DC-6000MHz MMIC LNA

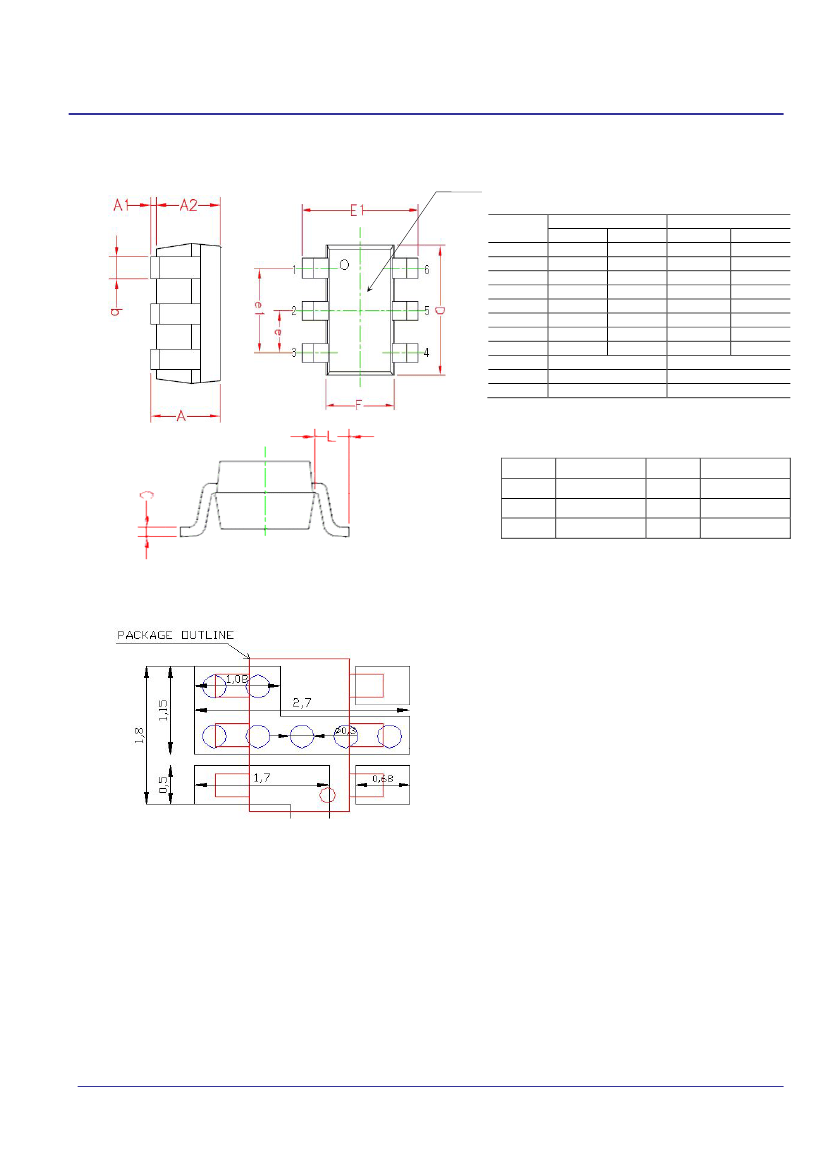

Outline Drawing
Part No.
Symbols
A
A1
A2
b
C
D
E
E1
e
e1
L
Dimensions (In mm)
MIN
MAX
0.90
1.10
0.025
0.10
0.875
1.00
0.20
0.40
0.10
0.15
1.90
2.10
1.15
1.35
2.00
2.20
0.65 BSC.
1.30 BSC.
0.425 REF.
Dimensions (In inch)
MIN
MAX
.036
.044
.001
.004
.035
.040
.008
.016
.004
.006
.076
.084
.046
.054
.080
.088
.026 BSC.
.052 BSC.
.017 REF..
Mounting Recommendation(in mm)
2/15
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
L30
Pin No.
1
2
3
Function
VDD
GND
RF OUT
Pin No.
4
5
6
Function.
GND
GND
RF IN
Note:
1. The number and size of ground via holes in a
circuit board is critical for thermal and RF
grounding considerations.
2. We recommend that the ground via holes be
placed on the bottom of lead pin 2,4 and 5 for
better RF and thermal performance, as
shown in the drawing at the left side.
3. You can download the gerber file of ASL226
from
http://www.asb.co.kr/s-para/ASL226_gerber.zip
September 2012
ASL30G
DC-6000MHz MMIC LNA
Parameter
Power Gain
Noise Figure
Symbol
G
p
NF
RL
in
RL
out
ISO
P
o(1dB)
OIP3
I
cc
V
dd
Test Conditions
F = 900 MHz
F = 900 MHz
F = 900 MHz
F = 900 MHz
F = 900 MHz
F = 900 MHz
F = 900 MHz
F = 900 MHz,
Non-RF
F = 900 MHz,
Non-RF
36
0.9
-18
-18
-40
11
22
20
3
TYP.
37.5
0.9
-20
-14
-40
13.5
25
30
4
Unit
dB
dB
dB
dB
dB
dBm
dBm
mA
V

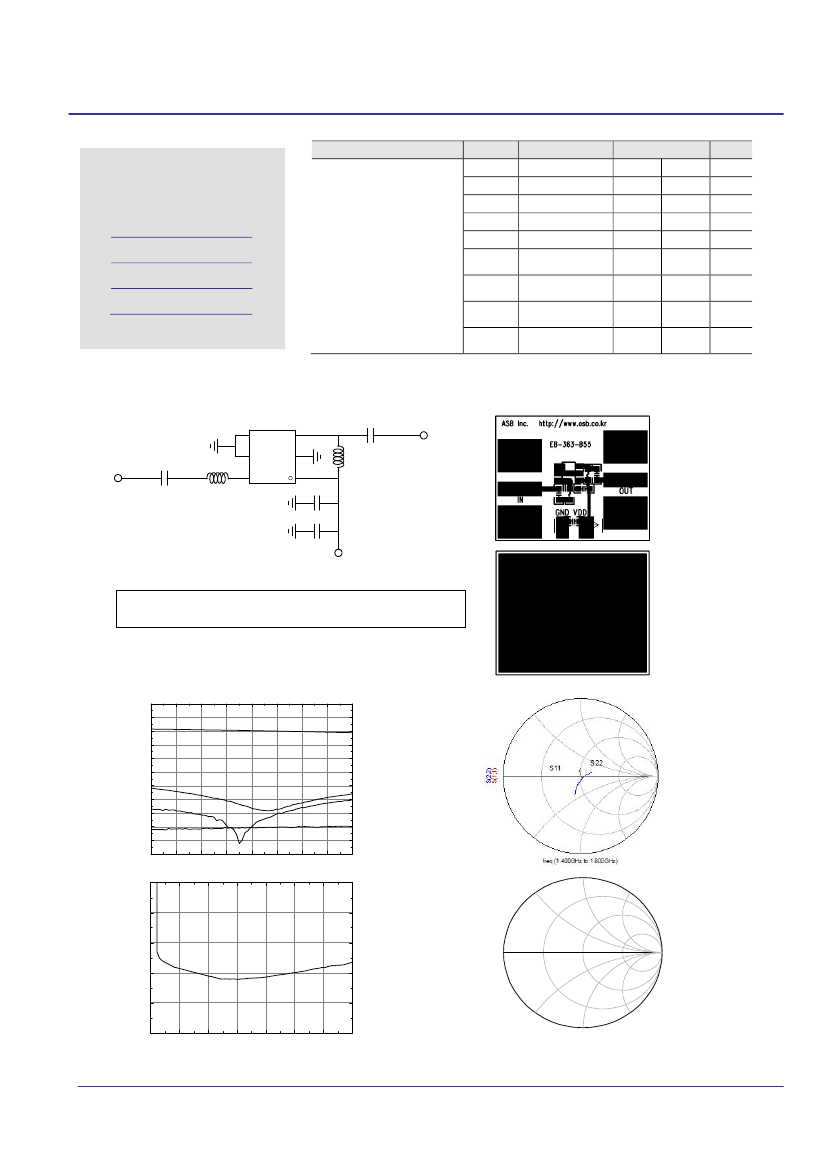

APPLICATION CIRCUIT
Input Return Loss
Output Return Loss
Reverse Isolation
900 MHz
+3 V / +4 V
1 dB Gain Compression
Output Power
rd
3 Intercept Point
1)
Output Power
Current
Device Voltage
1) OIP3 is measured with two tones at an output power of -3 dBm/tone separated by 1MHz.
Schematic
Board Layout (FR4, 14x11.3 mm
2
, 0.8T)
Top
C2=2.4 pF
L1=5.1 nH
ASL30G
L2=12 nH
RF OUT
RF IN
C1=100 pF
C3=1
mF
C4=10
mF
VDD
Bottom
* Note: Gain and current can be reduced by controlling VDD to 2 V.
C3 must be placed as close as possible to the device.
S-parameters & K-factor ( 3 V )
50
40
30
20
5
S21
4
S - parameter [dB]
Stability Factor
10
0
-10
-20
-30
-40
-50
-60
600
3
S22
S11
S12
2
1
0
700
800
900
1000
1100
1200
0
500
1000
1500
2000
2500
3000
3500
Frequency [MHz]
Frequency (MHz)
3/15
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2012
ASL30G
DC-6000MHz MMIC LNA
S-parameters & K-factor ( 4 V )
50
40
30
20
5
S21
4
S - parameter [dB]
Stability Factor
10
0
-10
-20
-30
-40
-50
-60
600
700
800
900
1000
1100
1200
3
S22
S11
S12
2
1
0
0
500
1000
1500
2000
2500
3000
3500
Frequency [MHz]
Frequency (MHz)
4/15
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
September 2012
ASL30G
DC-6000MHz MMIC LNA
Parameter
Power Gain
Noise Figure
Input Return Loss
Output Return Loss
Reverse Isolation
1 dB Gain Compression
Output Power
rd
3 Intercept Point
1)
Output Power
Current
Device Voltage
Symbol
G
p
NF
RL
in
RL
out
ISO
P
o(1dB)
OIP3
I
cc
V
dd
Test Conditions
F = 1575 MHz
F = 1575 MHz
F = 1575 MHz
F = 1575 MHz
F = 1575 MHz
F = 1575 MHz
F = 1575 MHz
F = 1575 MHz,
Non-RF
F = 1575 MHz,
Non-RF
30
0.8
-20
-16
-38
11
22
20
3
TYP.
30.5
0.8
-20
-15
-38
13
26
30
4
Unit
dB
dB
dB
dB
dB
dBm
dBm
mA
V
APPLICATION CIRCUIT
GPS
1575 MHz
+3 V / +4 V
1) OIP3 is measured with two tones at an output power of -3 dBm/tone separated by 1MHz.
Schematic
C2=1.2 pF
RF OUT
Board Layout (FR4, 14x11.3 mm
2
, 0.8T)
Top
RF IN
C1=100 pF
L1=2.2 nH
ASL30G
L2=7.5 nH
C3=1
mF
C4=10
mF
VDD
Bottom
4.2mm
* Note: Gain and current can be reduced by controlling VDD to 2V.
C3 must be placed as close as possible to the device.
S-parameters & K-factor ( 3 V )
50
40
30
20
S21
S - parameter [dB]
10
0
-10
-20
-30
-40
-50
-60
1400
1450
1500
1550
1600
1650
1700
1750
1800
S22
S11
S12
Frequency [MHz]
5
4
3
2
1
0
0
500
1000
1500
2000
2500
3000
3500
Frequency (MHz)
5/15
ASB Inc.
·
sales@asb.co.kr
·
Tel: +82-42-528-7223
Load_stabcir[m1,::]
Source_stabcir[m1,::]
Stability Factor
indep(Source_stabcir[m1,::]) (0.000 to 51.000)
indep(Load_stabcir[m1,::]) (0.000 to 51.000)
