2.5SMCJ7.0 datasheet, PDF - EEWORLD Datasheet

2.5SMCJ7.0: DescriptionTrans Voltage Suppressor Diode, 2500W, 7V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size234KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric View All

2.5SMCJ7.0 Overview

Trans Voltage Suppressor Diode, 2500W, 7V V(RWM), Unidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN

Parameter Name	Attribute value
Parts packaging code	DO-214AB
package instruction	PLASTIC, SMC, 2 PIN
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum breakdown voltage	9.5 V
Minimum breakdown voltage	7.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak reverse power dissipation	2500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	6 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Base Number Matches	1

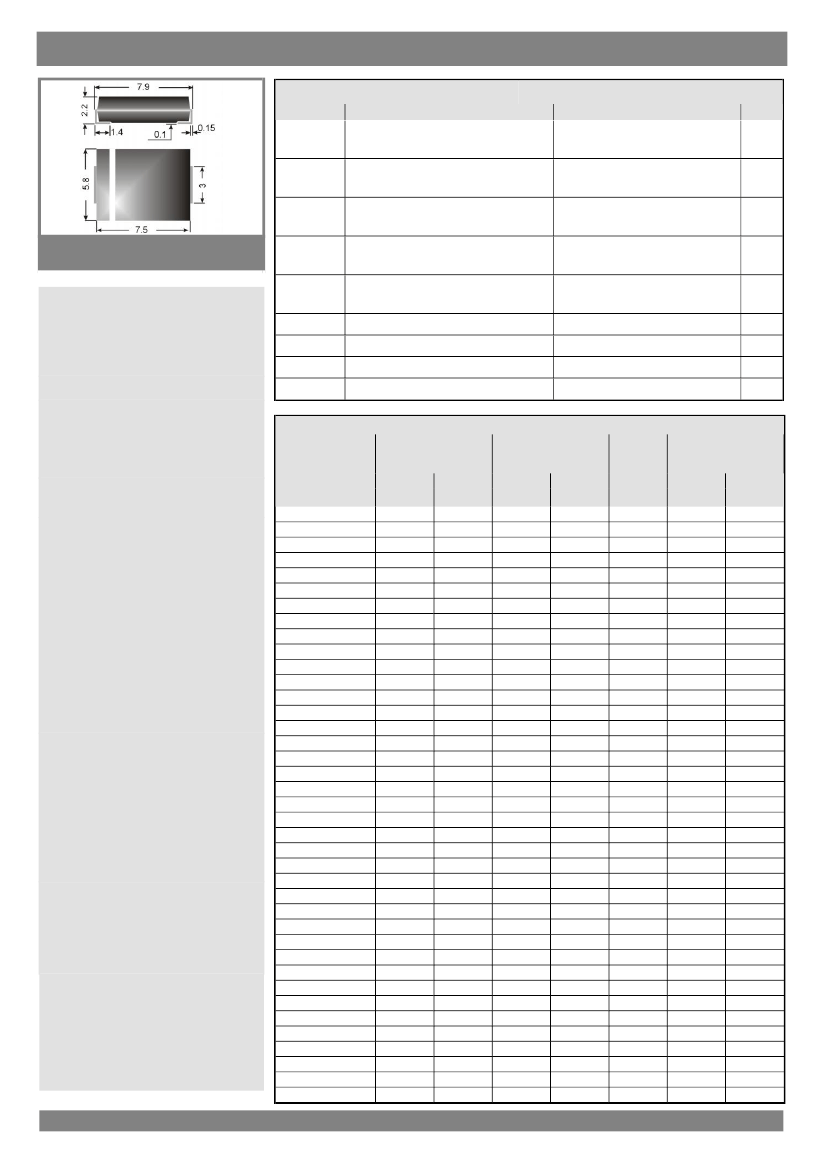

2,5 SMCJ 6,5 ... 2,5 SMCJ 150CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

2,5 SMCJ 6,5 ... 2,5 SMCJ 150CA

Pulse Power

Dissipation: 2500 W

Stand-off

voltage: 6,5 ... 150 V

Features

Mechanical Data

13-02-2009 MAM
