Product Specifications Approval Sheet
Product Description: 169.4 MHz 0.2MHz BW SMD 5.0 x 5.0 mm SAW RF Filter
TST Parts No.:TA1715A
Customer Parts No.:
Company:
Division:
Approved by :
Date:
Checked by:
Approval by:
Date:
Kazuma Lee
Bob Chau
01 / 07 / 2014
1. Customer signed back is required before TST can proceed with sample build and receive orders.
2. Orders received without customer signed back will be regarded as agreement on the specifications.
3. Any specifications changes must be approved upon by both parties and a new revision of specifications
shall be released to reflect the changes.
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
FR-71S03-02
TAI-SAW TECHNOLOGY CO., LTD.
No. 3, Industrial 2nd Rd., Ping-Chen Industrial District,
Taoyuan, 324, Taiwan, R.O.C.
TEL: 886-3-4690038
FAX: 886-3-4697532
E-mail:
tstsales@mail.taisaw.com
Web:
www.taisaw.com
SAW Filter 169.4 MHz
MODEL NO.:TA1715A
A. MAXIMUM RATING:
1. Input Power Level: 10 dBm
2. DC Voltage : 6V
3. Operating Temperature: -40°C to +85°C
4. Storage Temperature: -40°C to +85°C
B. ELECTRICAL CHARACTERISTICS:
Item
Center frequency
3dB BW
Minimum insertion loss
Incl. loss of matching elements
Passband (relative to IL
min
)
*1)
169.3 ~ 169.5 MHz
REV. NO.1
RoHS Compliant
Lead free
Lead-free soldering
Electrostatic Sensitive Device
Unit
Fc
IL(min)
*1)
dB
dB
MHz
MHz
MHz
dB
dB
dB
MHz
KHz
Min.
-
-
-
-
30
15
30
Typ.
169.4
500
2.0
0.4
44
20
37
50
50
Max.
-
-
3.0
3.0
-
-
-
Attenuation (relative to IL
min
)
*1)
10.00 ~165.00
170.6 ~175.00
175.0 ~1000.0
Source Impedance
ohm
Load Impedance
ohm
*1)
：
The matching circuit is real by actual passive components.
0805 Coillcraft CS series chip conductor is used for inductor.
0402 muRata GRM series is used for capacitor.
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
2

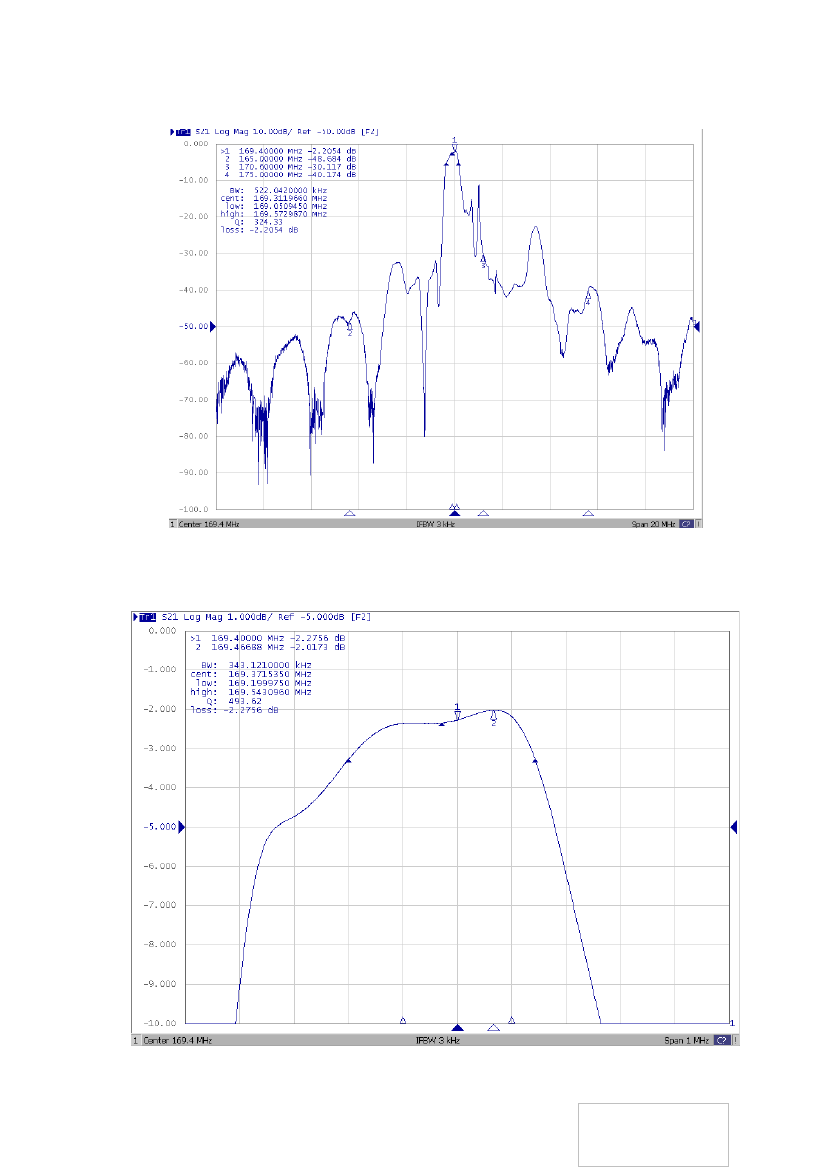

C. Frequency Characteristics :
(1) Wide band Response:
Fig1.
Horizontal: 2MHz/Div
Vertical: 10dB/Div
(2) Pass band Response Response:
Fig2.
Horizontal: 0.1MHz/Div
Vertical: 1dB/Div
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
3

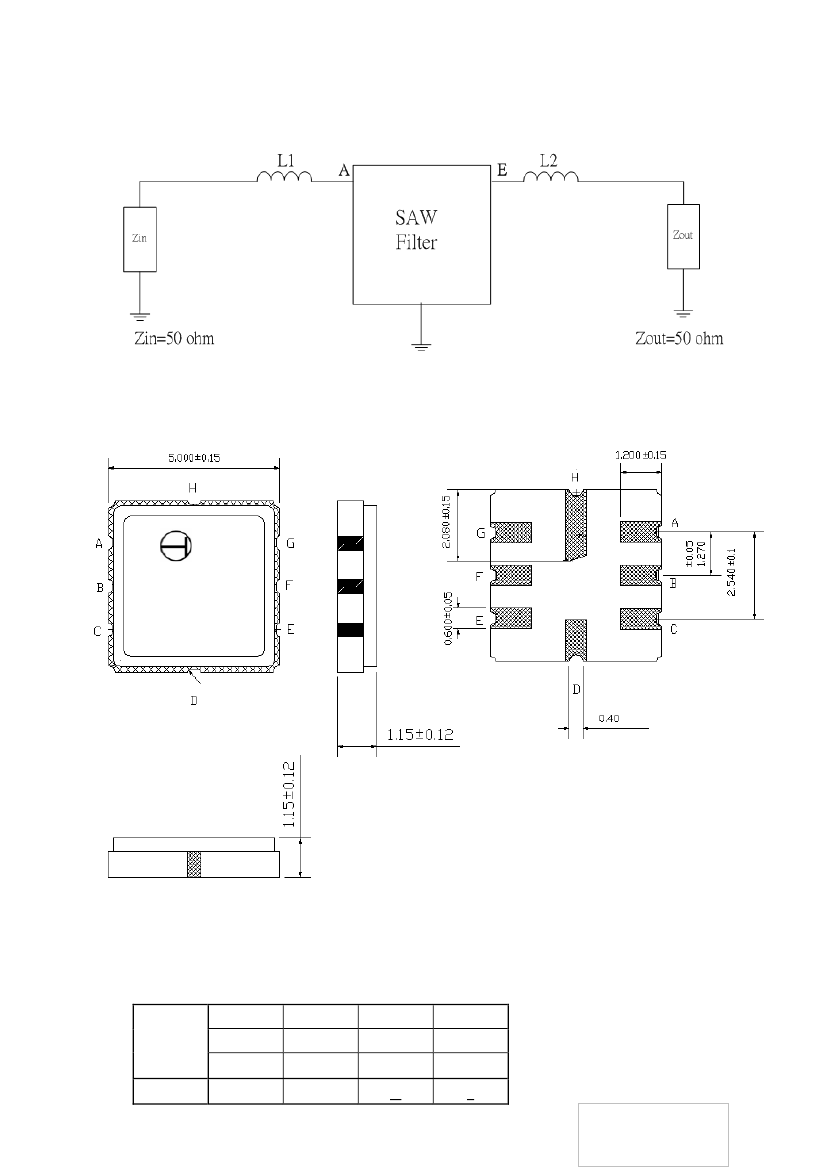

D. MEASUREMENT CIRCUIT:
The matching circuit is real by actual passive components.
L1=270nH L2=270nH
E.OUTLINE DRAWING:
1715
#A：Input ground (recommended) or Input
#B：Input (recommended) or Input ground
#E：Output ground (recommended) or Output
#F:：Output (recommended) or Output ground
#C、#G: To be grounded
#D、#H：Case Ground
Δ：Product
/ Year Code
Year Code
△ □
Year
□
：Week
Code
Unit：mm
2013
2017
2021
A
2014
2018
2022
a
2015
2019
2023
A
2016
2020
2024
a
TST DCC
Release document
4
TAI-SAW TECHNOLOGY CO., LTD.
Week Code Table
WK01 WK02 WK03 WK04 WK05 WK06 WK07 WK08 WK09 WK10 WK11 WK12 WK13
A
N
a
n
B
O
b
o
C
P
c
p
D
Q
d
q
E
R
e
r
F
S
f
s
G
T
g
t
H
U
h
u
I
V
i
v
J
W
j
w
K
X
k
x
L
Y
l
y
M
Z
m
z
WK14 WK15 WK16 WK17 WK18 WK19 WK20 WK21 WK22 WK23 WK24 WK25 WK26
WK27 WK28 WK29 WK30 WK31 WK32 WK33 WK34 WK35 WK36 WK37 WK38 WK39
WK40 WK41 WK42 WK43 WK44 WK45 WK46 WK47 WK48 WK49 WK50 WK51 WK52
F. PCB Footprint:
TAI-SAW TECHNOLOGY CO., LTD.
TST DCC
Release document
5
