2703-7551-004: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, MALE, RF CONNECTOR, CLAMP, JACK; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerApplied Engineering Products (AEP)

Download Datasheet Parametric View All

2703-7551-004 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, MALE, RF CONNECTOR, CLAMP, JACK

2703-7551-004 Parametric

Parameter Name	Attribute value
Objectid	1498485275
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG180; RG195, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	OTHER RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CLAMP

Preview

Download Datasheet

View All

REVISIONS

REV.

A

DESCRIPTION

INITIAL RELEASE

DATE

01/15/20

APPROVED

E.M.

.84

.425

"D" FLAT

.161

5/16-32 UNEF-2A

.375 HEX

.344 HEX

NOTES:

MATERIALS:

1.

2.

3.

INSULATORS = VIRGIN WHITE TEFLON PER ASTM D1710, GRADE 1, TYPE I, CLASS "B".

LOCKWASHER = PHOSPHOR BRONZE.

ALL OTHER METAL PARTS = BRASS PER ASTM B16, ALLOY C36000, TEMPER H02.

FINISHES:

1.

CONTACT = GOLD PLATE PER ASTM B488 OR MIL-DTL-45204, TYPE II, 50µin MIN, GRADE C,

OVER 100 TO 200µin SULFAMATE OR ELECTROLYTIC NICKEL PER AMS-QQ-N-290.

ALL OTHER METAL PARTS = NICKEL PLATE PER AMS-QQ-N-290, CLASS 1, GRADE G,

EXCEPT 100 TO 200µin THICK OVER 50 TO 100µin THICK COPPER PER AMS 2418.

2.

2703-7551-004

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ON

DWN:

DATE

Property of Radiall

This document cannot be reproduced or

communicated to a third party without prior

a RADIALL company

written permission of RADIALL.

E.M.

CHKD:

01/15/20

DATE

DECIMAL

ANGLE

J.S.

APVD:

01/15/20

DATE

J.M.

REFERENCE:

01/15/20

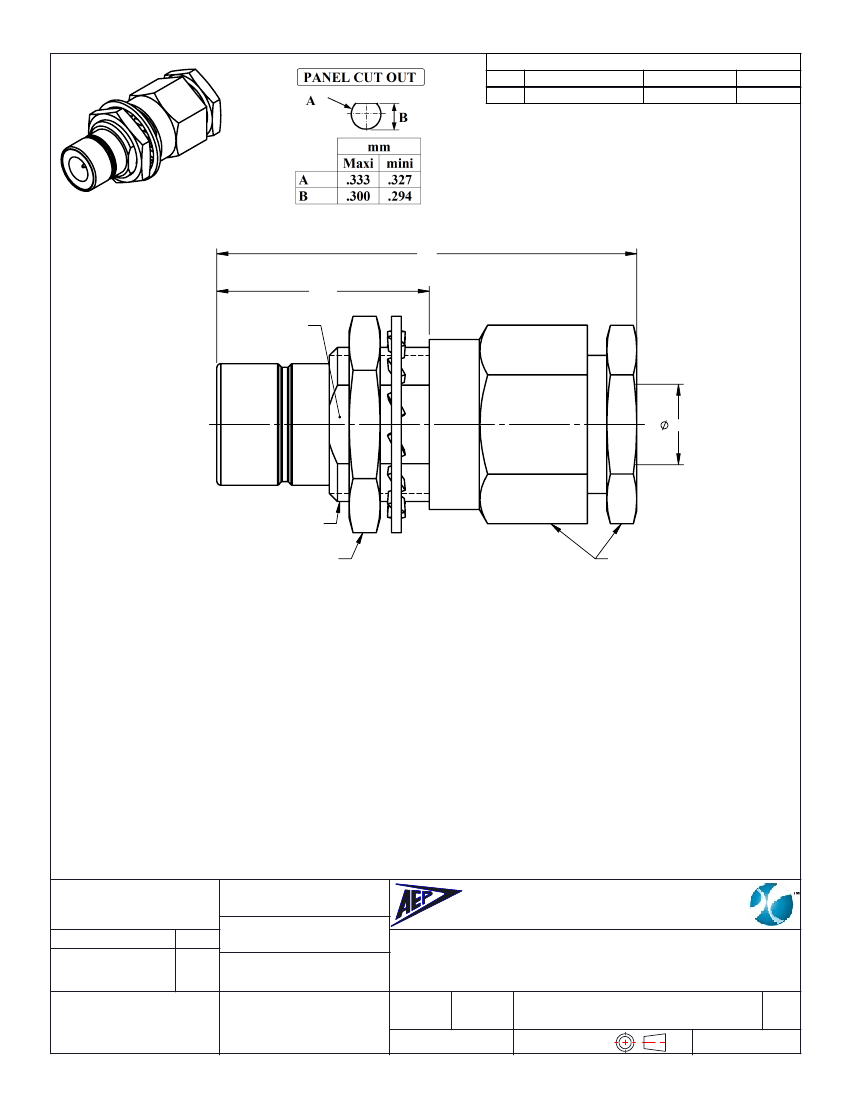

75 OHM SNAP-ON STRAIGHT MALE JACK

BULKHEAD MOUNT CLAMP TYPE

FOR RG-180 & SIMILAR CABLES

SIZE

MATERIALS & FINISHES:

ORIGINATED: E.M.

DATE: 01/15/20

SEE NOTES

A

FSCM NO.

DWG NO.

19505

5:1

2703-7551-004

THIRD ANGLE

PROJECTION

REV

A

SCALE

SHEET 1 OF 1
