2703-7571-003: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, MALE, RF CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerApplied Engineering Products (AEP)

Download Datasheet Parametric View All

2703-7571-003 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, MALE, RF CONNECTOR, CRIMP, JACK

2703-7571-003 Parametric

Parameter Name	Attribute value
Objectid	1498485290
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG179, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.3 dB
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	NO
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Maximum operating frequency	2 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP

Preview

Download Datasheet

View All

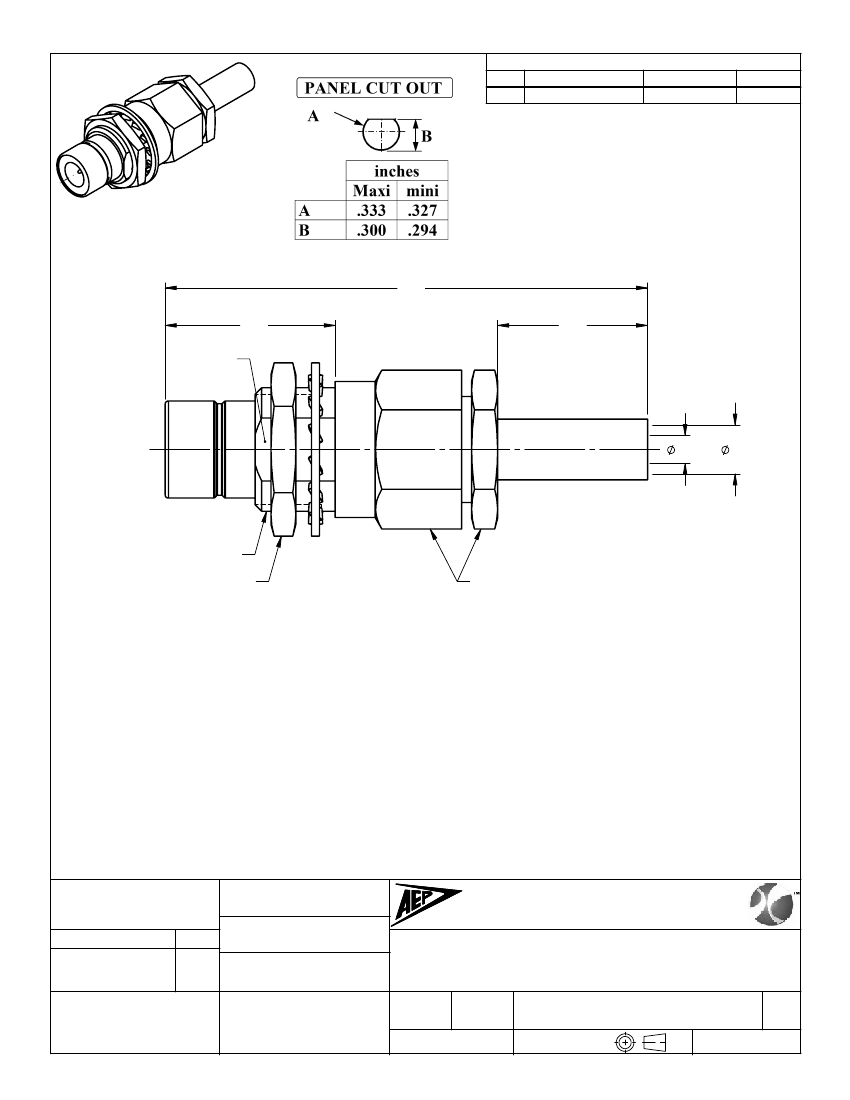

REVISIONS

REV.

A

DESCRIPTION

INITIAL RELEASE

DATE

04/11/18

APPROVED

C.E.

1.21

.425

"D" FLAT

.375

.070

.122

5/16-32 UNF-2A

.375 HEX

.344 HEX

NOTES:

MATERIALS:

1.

2.

3.

4.

INSULATORS = VIRGIN WHITE TEFLON PER ASTM D1710, GRADE 1, TYPE I, CLASS "B".

CRIMP SLEEVE = SEAMLESS LOWLEAD BRASS TUBE, ALLOY 330, SOFT ANNEAL TEMPER,

.025/.060 GRAIN SIZE OR SEAMLESS COPPER TUBE PER ASTM B75, TYPE C12000, TEMPER:

LIGHT ANNEAL O50 EXCEPT YIELD STRENGTH.

LOCKWASHER = PHOSPHOR BRONZE PER ASTM B139, COPPER ALLOY C53400, TEMPER H04.

ALL OTHER METAL PARTS = BRASS PER ASTM B16, ALLOY C36000, TEMPER H02.

FINISHES:

1.

2.

CONTACT = GOLD PLATE PER ASTM B488-11, TYPE II, 50µin MIN, GRADE C, OVER

100 TO 200µin STRESS FREE SULFAMATE NICKEL PER AMS-QQ-N-290.

ALL OTHER METAL PARTS = NICKEL PLATE PER AMS-QQ-N-290, CLASS 1, GRADE G, EXCEPT

100 TO 200µin THICK OVER 50 TO 100µin THICK COPPER PER AMS 2418.

2703-7571-003

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN INCHES

TOLERANCES ON

DWN:

DATE

Property of Radiall

This document cannot be reproduced or

communicated to a third party without prior

a RADIALL company

written permission of RADIALL.

C.E.

CHKD:

04/11/18

DATE

DECIMAL

ANGLE

D.N.

APVD:

04/11/18

DATE

J.M.

REFERENCE:

04/11/18

75 OHM STR SNAP-ON MALE JACK

BULKHEAD MOUNT CRIMP TYPE

FOR RG-316 & SIMILAR CABLES

SIZE

MATERIALS & FINISHES:

ORIGINATED: C.E.

DATE: 04/11/18

SEE NOTES

A

FSCM NO.

DWG NO.

19505

4:1

2703-7571-003

THIRD ANGLE

PROJECTION

REV

A

SCALE

SHEET 1 OF 1
