ACSP-2579PC3: DescriptionLinear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, HERMETIC SEALED, CASE C3; CategoryWireless rf/communication Radio frequency and microwave; File Size268KB，2 Pages; ManufacturerAeroflex; Websitehttp://www.aeroflex.com/

Download Datasheet Parametric Compare View All

ACSP-2579PC3 Overview

Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, HERMETIC SEALED, CASE C3

ACSP-2579PC3 Parametric

Parameter Name	Attribute value
Objectid	1056541758
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M
structure	COAXIAL
Maximum input power (CW)	23 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	POSITIVE
Minimum output voltage sensitivity	0.2 mV/mW
RF/Microwave Device Types	LINEAR DETECTOR

Preview

Download Datasheet

View All

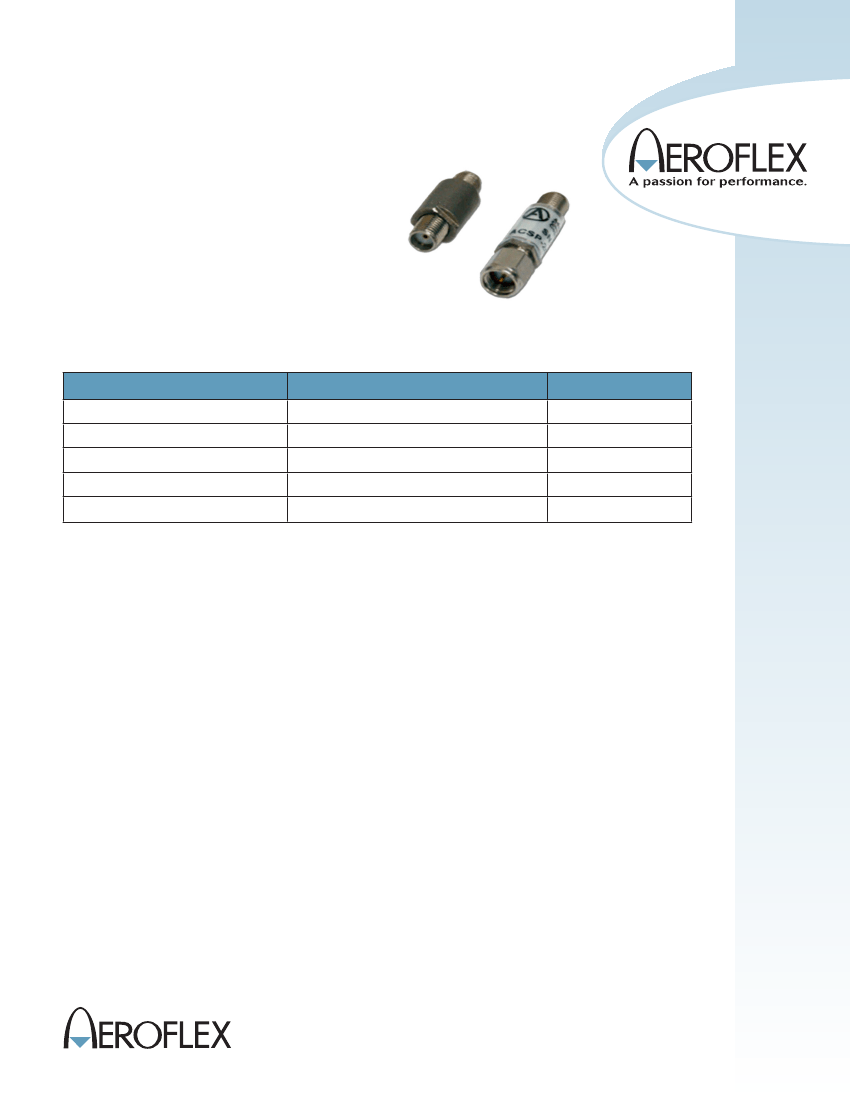

ACSP-2579

Padded Zero

Bias

Schottky Detector

Features:

•

Contains hermetically sealed modules, inter-

nal RF matching, DC return, and RF

Bypass

capacitor.

The video port is protected from static or

transient charges.

Input impedance matching.

Models may

chosen for

BroadBand

performance of for optimized narrow

Bands

•

Specifications:

Parameter

Frequency Range (min)

Flatness vs. Frequency (max)

Typical TSS

Internal Attenuation

Sensitivity (min)

Specification

Units

GHz

±dB

dBm

mV/mW

2– 4

0.2

-45

500

Notes:

Maximum input power: +23 dBm

Sensitivity is measured into an open circuit load

(>10k ohm).

The temperature performance of the zero

Bias

schottky is poor when operating at low input power

levels.

OPTIONAL HIGH-REL SCREENING

(Ref MIL-PRF-38534):

StaBilization

Bake

per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883, Method

2001

Burn-in

per MIL-STD-883, Method 1015

Leak Test per MIL-STD-883, Method 1014

External Visual per MIL-STD-883, Method 2009

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

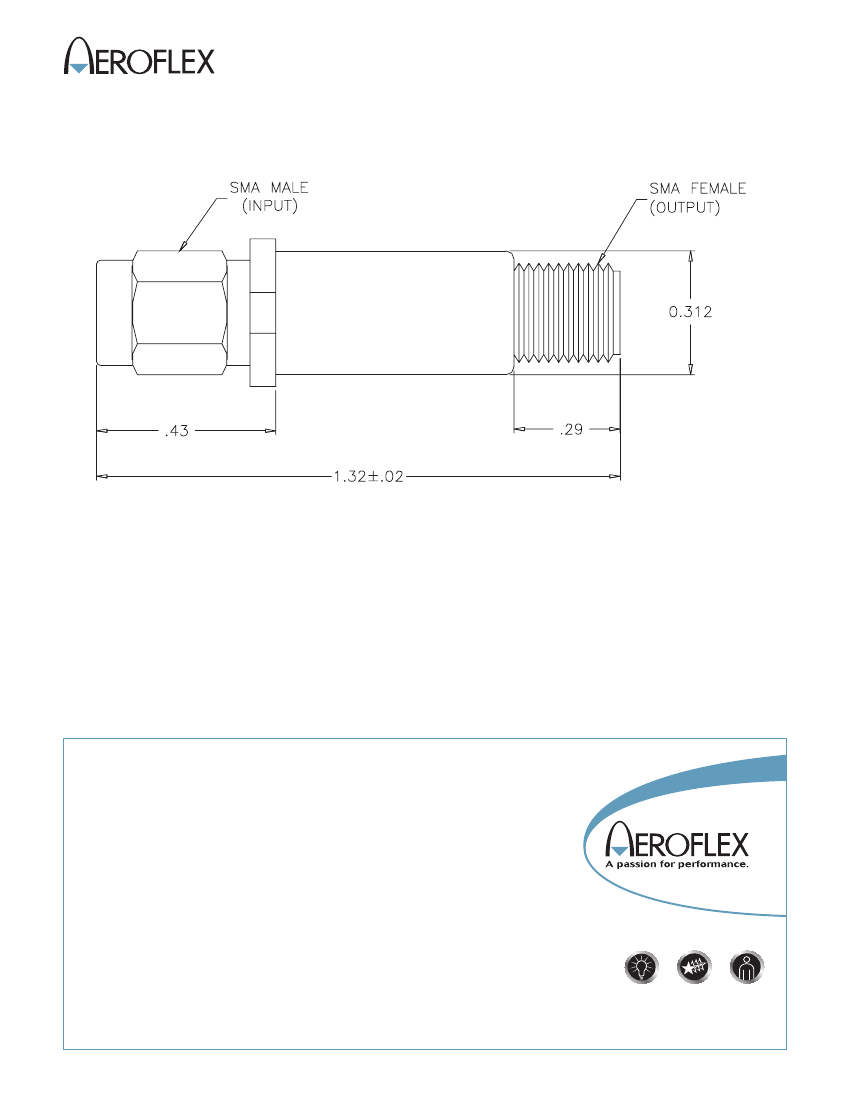

SIGNAL & CONTROL SOLUTIONS

Revision Date: 10/6/2013

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com

ACSP-2579PC3 Related Products

	ACSP-2579PC3	ACSP-2579NZC3-RC	ACSP-2579PZC3-RC	ACSP2579NZC3	ACSP-2579NZC3	ACSP-2579PZC3	ACSP-2579NC3-RC	ACSP-2579PC3-RC
Description	Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, HERMETIC SEALED, CASE C3	Threshold Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, ROHS COMPLIANT, CASE C3	Threshold Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, ROHS COMPLIANT, CASE C3	Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, CASE C3	Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, HERMETIC SEALED, CASE C3	Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, HERMETIC SEALED, CASE C3	Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, ROHS COMPLIANT, HERMETIC SEALED, CASE C3	Linear Detector, 2000MHz Min, 4000MHz Max, 23dBm Input Power-Max, ROHS COMPLIANT, HERMETIC SEALED, CASE C3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M	SMA-F; SMA-M
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum input power (CW)	23 dBm	23 dBm	23 dBm	23 dBm	23 dBm	23 dBm	23 dBm	23 dBm
Maximum operating frequency	4000 MHz	4000 MHz	4000 MHz	4000 MHz	4000 MHz	4000 MHz	4000 MHz	4000 MHz
Minimum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	100 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-65 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	POSITIVE	NEGATIVE	POSITIVE	NEGATIVE	NEGATIVE	POSITIVE	NEGATIVE	POSITIVE
Minimum output voltage sensitivity	0.2 mV/mW	500 mV/mW	500 mV/mW	500 mV/mW	0.2 mV/mW	0.2 mV/mW	0.2 mV/mW	0.2 mV/mW
RF/Microwave Device Types	LINEAR DETECTOR	THRESHOLD DETECTOR	THRESHOLD DETECTOR	LINEAR DETECTOR	LINEAR DETECTOR	LINEAR DETECTOR	LINEAR DETECTOR	LINEAR DETECTOR
Base Number Matches	-	1	1	1	1	1	-	-
