PXI-3980
3U Intel
®
Core™ i7-2715QE 2.1 GHz Quad-Core Processor-based PXI Controller
Introduction
The ADLINK PXI-3980 PXI embedded controller, based on the second generation Intel
®
Core™ i7 processor is specifically
designed for hybrid PXI based testing systems, delivering a rugged yet stable platform for a wide variety of testing and
measurement applications.
Combining state-of-the-art 2.1 GHz quad-core Intel
®
Core™ i7-2715QE processors (3.0 GHz maximum in single-core,
Turbo Boost mode), and up to 16 GB of 1333 MHz DDR3 memory, the PXI-3980 utilizes four separate computing engines
on a single processor, enabling execution of numerous independent tasks simultaneously.
The ADLINK PXI-3980 provides ample interface flexibility, including dual USB 3.0 connections for high speed peripheral
devices, dual Gigabit Ethernet ports, with one for LAN connection and the other for controlling LXI instruments, four USB
2.0 ports for peripheral devices and USB instrument control, and a Micro-D GPIB connector for GPIB instrument connec-
tion, for hybrid PXI-based testing systems control.
Features
PXI-1 Hardware Specification Rev. 2.2 compliant
Superior computing power
•Intel
®
Core™ i7-2715QE 2.1 GHz processor, 3.0 GHz
maximum in single-core, Turbo Boost mode
■
Supports dual display with VGA + DVI
■
Dual channel DDR3 SODIMM
•Up to 16 GB 1333 MHz
■
Maximum system throughput 132 MB/s
■
Integrated SATA storage
•500 GB (or greater) HDD or 120 GB (or
greater) SSD
■
Integrated I/O
•Dual USB 3.0 ports and four USB 2.0 ports
•Dual Gigabit Ethernet ports
•Built-in GPIB (IEEE488) controller
•Trigger I/O for advanced PXI™ trigger functions
■
Programmable watchdog timer
■
■
Trigger I/O to route trigger to/
from PXI trigger bus
Dual GbE ports (one for LAN
connectivity and one for LXI
instrument control)
DVI-I connector for DVI
(digital) or CRT (analog)
display
Dual USB 3.0 connections for
high speed peripheral devices
Micro-D GPIB connector for
GPIB instrument control
Four USB 2.0 ports for
peripheral devices and USB
instrument control

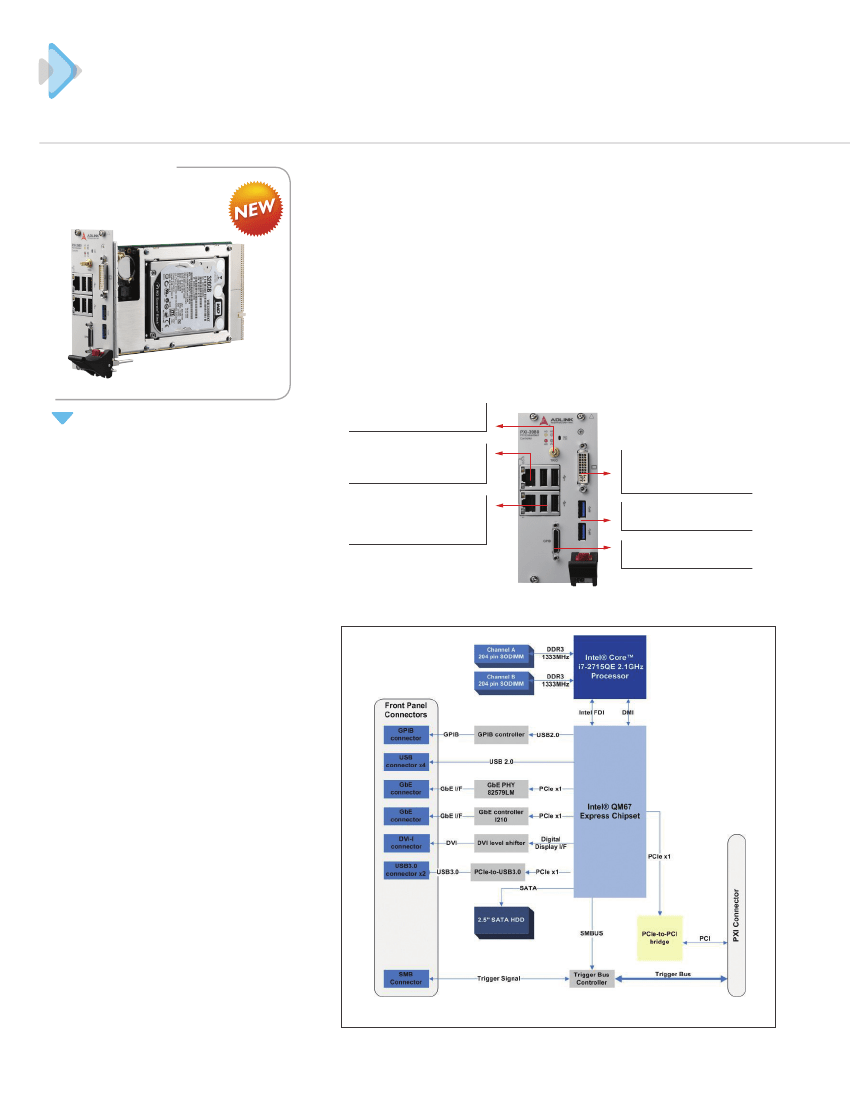

PXI-3980 Front Panel
■ OS
Information
• Windows
XP x32, Windows 7 x32/x64
PXI-3980 Block Diagram
PXI Controller
Specifications
Model Name
Core Features
CPU
DMI
Chipset
Memory
Display
DVI
VGA
I/O Connectivity
Ethernet
USB
GPIB
Trigger I/O
Storage
HDD
SSD
Mechanical and Environmental
Dimensions
Slot Requirements
Weight
Operating Temp.
Storage Temp.
Relative Humidity
Shock
Vibration
60.5 mm x 128.7 mm x 213.2 mm (2.35” x 5.01” x 8.31”)
1 system slot plus 2 controller expansion slots
1.1 kg (2.3 lbs)
0 to 50°C (32˚F to 122˚F) (w/ HDD)
0 to 55°C (32˚F to 131˚F) (w/ SSD)
-20 to 70°C (-4˚F to 158˚F )
5 to 95%, non-condensing
30 G, half-sine, 11 ms pulse duration
Operating: 5 to 500 Hz, 0.21 Grms, 3 axes (w/HDD)
5 to 500 Hz, 0.3 Grms, 3 axes (w/SSD)
Non-operating: 5 to 500 Hz, 2.46 Grms, 3 axes (w/ both HDD & SSD)
Emissions Compliance
CE Compliance
Note1. Depends on model ordered
EN 61326-1, FCC Class A
Immunity: EN 61326-1
500 GB (or greater) SATA hard drive
120 GB MLC
One Intel
®
82579LM Gigabit Ethernet PHY and One Intel
®
I210 Gigabit Ethernet Controller
Two RJ-45 connectors with speed/link/active LED on the faceplate
2 x USB 3.0 and 4 x USB 2.0 on the faceplate
On-board IEEE488 GPIB controller
Micro-D 25-pin connector on the faceplate (ACL-IEEE488-MD1-A cable required)
SMB connector on the faceplate to route an external trigger signal to/from PXI trigger bus
DVI output provides up to 1920 x 1200 bpp at 60Hz resolution or up to 2048 x 1536 bpp at 75Hz
Analog VGA output provides up to 1920 x 1200 bpp at 60Hz resolution or up to 2048 x 1536 bpp at 75Hz
®
PXI-3980
Intel
®
Core™ i7-2715QE 2.1 GHz
5 GT/s
Intel QM67 Express chipset
Up to 16 GB SO-DIMM memory
Supports dual-channel DDR3 SDRAM, 1066/1333 MHz
Ordering Information
■
PXI-3980
3U PXI Intel
®
Core™ i7-2715QE 2.1 GHz system
controller with 4 GB memory & 500 GB HDD
■
PXI-3980/M8G
3U PXI Intel
®
Core™ i7-2715QE 2.1 GHz system
controller with 8 GB memory & 500 GB HDD
■
PXI-3980/SSD
3U PXI Intel
®
Core™ i7-2715QE 2.1 GHz system
controller with 4 GB memory & 120 GB SSD
■
PXI-3980/M8G/SSD
3U PXI Intel
®
Core™ i7-2715QE 2.1 GHz system
controller with 8 GB memory & 120 GB SSD
NOTE: 16 GB memory configuration available on request, please contact
ADLINK Sales
Cable Accessory
■ ACL-IEEE488-MD1-A
25-pin Micro-D to GPIB Cable, 1 Meter Length
Updated May 27, 2013. ©2013 ADLINK Technology, Inc. All Rights Reserved. All specifications are subject to change without further notice.
