NDTM226K35F1TB datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> NDTM226K35F1TB

Preview

NDTM226K35F1TB: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 35V, 22uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size100KB，3 Pages; ManufacturerNIC Components Corp

Download Datasheet Parametric View All

NDTM226K35F1TB Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 35V, 22uF, THROUGH HOLE MOUNT

NDTM226K35F1TB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	2007234218
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e0
leakage current	0.0061 mA
Manufacturer's serial number	NDTM
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	35 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

NDTM226K35F1TB Preview

Resin Dipped, Solid Tantalum Capacitors

LEADED

FEATURES

• FLUIDIZED BED PROCESS

• NEW REDUCED SIZES

• FLAME RETARDANT COATING

• LOW LEAKAGE CURRENT AND IMPEDANCE

• EXCEPTIONAL TEMPERATURE STABILITY

SPECIFICATIONS

Capacitance Range:

Capacitance Tolerance:

Rated Voltage (VDC):

Surge Voltage (VDC):

Temperature Range:

6.3

8

10

13

0.1µF ~ 330µF

+ 20% (M), + 10% (K)

16

20

26

25

36

35

46

50

65

NDTM Series

-55°C ~ +85°C (+125°C with Derating)

Capacitance Range

Tan

δ

Dissipation Factor:

(120hz, +25

o

C)

Tan

δ

Reliability:

0.1 ~ 1.5µF

Less than 4%

2.2 ~ 6.8µF

Less than 6%

10 ~ 68µF

Less than 8%

100 ~ 330µF

Less than 10%

1% per 1000 hrs. at 85°C with 0.1Ω/V

series impedance, 60% confidence leve

DERATED VOLTAGE AND SURGE VOLTAGE

Rated Voltage (VDC)

Derated Voltage (VDC)

Surge Voltage (VDC)

Derated Surge Voltage (VDC)

+85

o

C:

+125 C:

+85

o

C:

+125 C:

o

6.3

4

8

5

10

6.3

13

9

16

10

20

12

20

13

26

16

25

16

33

21

35

23

46

28

50

33

65

40

Maximum Leakage Current (µA) @ 25°C After 3 minutes

Cap

(µF)

0.1

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

®

Max. ESR (ohm) @ 100Khz and 25°C

Cap

Rated Voltage (VDC)

6.3V

10V

16V

20V

25V

35V

26.0

21.0

17.0

15.0

13.0

10.0

13.0

10.0

8.0

6.0

5.0

3.7

3.0

2.0

1.8

1.6

0.9

0.7

10.0

8.0

6.0

5.0

3.7

2.7

2.1

1.7

1.3

1.0

0.8

0.6

8.0

6.0

5.0

4.0

3.2

2.5

2.0

1.6

1.3

1.0

0.8

0.6

0.5

9.0

7.0

5.5

4.5

3.6

2.9

2.3

1.8

1.4

1.2

0.9

0.6

10.0

8.0

6.0

5.0

4.0

3.1

2.5

2.0

1.5

1.2

1.0

0.8

8.0

6.0

5.0

4.0

3.0

2.5

2.0

1.6

1.3

1.0

0.8

50V

26.0

21.0

17.0

15.0

13.0

10.0

8.0

5.0

3.5

3.0

2.5

2.0

1.6

1.2

1.0

(µF)

0.1

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

Rated Voltage (VDC)

6.3V

10V

16V

20V

25V

35V

0.5

0.7

1.1

1.6

2.3

3.4

5.0

7.5

11.0

16.6

0.5

0.8

1.2

1.7

2.6

3.7

5.4

8.0

12.0

17.6

0.5

0.6

0.8

1.2

1.9

2.8

4.2

6.0

8.7

12.8

19.2

20.0

0.5

0.7

1.0

1.6

2.4

3.5

5.2

7.5

10.8

16.0

0.5

0.6

0.9

1.3

2.0

3.0

4.4

6.6

9.4

13.6

0.5

0.6

0.9

1.3

1.9

2.8

4.2

6.1

9.2

10.0

50V

0.5

0.6

0.8

1.3

1.8

2.7

4.0

6.0

8.8

78

NIC COMPONENTS CORPORATION

70 Maxess Rd., Melville, New York 11747 • (631) 396-7500 FAX (631)396-7575

Resin Dipped, Solid Tantalum Capacitors

DIMENSIONS (mm)

Diameter

4.5 ~ 7.0

8.0 ~ 10.0

Figure And Part No.

1

Standard

2

Optional (F2) Style

1

Standard

Lead Spacings

2.5±0.5

5.0±1.0

Lead Length

16±4

Lead Diameter (d)

0.5±0.05

NDTM Series

OUTLINE DRAWINGS

AND DIMENSIONS

MARKING:

(Note:

µ

represents decimal

point for values below 1µF)

LEADED

Front

16

L

D

+

2(0.08)

max.

S

d

D

+

S

d

Rear

K

H

L

2.0mm

min.

H

L

2.0mm

min.

STANDARD PRODUCTS AND CASE SIZE TABLE Dφ X H (mm)

φ

Cap

(µF)

0.1

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

6.8

10

15

22

33

47

68

100

150

220

330

Code

104

154

224

334

474

684

105

155

225

335

475

685

106

156

226

336

476

686

107

157

227

337

4.5x7.0

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

6.5x10.0

7.0x10.5

8.5x14.0

9.0x14.5

10.0x17.0

4.5x7.0

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

6.5x10.0

7.0x10.5

8.5x14.0

9.0x16.0

10.0x17.0

10.0x18.5

4.5x7.0

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

6.0x10.0*

8.0x13.0*

9.0x14.0

9.0x16.0

10.0x18.5

*AVAILABLE IN BOTH 2.5 AND 5mm LEAD SPACING

4.5x7.0

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

7.0x10.5

8.0x13.0

8.5x14.0

9.0x16.0

4.7x7.0

4.5x7.0

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

7.0x10.5

8.0x13.0

9.0x14.5

9.0x16.0

Rated Voltage (Vdc)

6.3

10

16

20

25

35

4.5x7.0

4.5x7.5

5.0x8.5

5.5x9.0

6.0x10.0

7.0x10.5

8.5x14.0

9.0x14.5

9.0x16.0

50

4.5x7.0

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

6.5x10.0

7.0x10.5

8.0x13.0*

8.5x14.0

9.0x14.0

FIG. 1

FIG. 2

PART NUMBERING SYSTEM

NDTM 106 K 16 F1 TR

Tape and Reel (optional)

Special Lead Forming

Working Voltage

Tolerance Code M=20%, K=10%

Capacitance Code in pF, first 2 digits are

significant, third digit is no. of zeros

Series

®

NIC COMPONENTS CORPORATION

70 Maxess Rd., Melville, New York 11747 • (631) 396-7500 FAX (631)396-7575

+

33µ

79

Resin Dipped Solid Tantalum Capacitors

LEADED

F2TR, F2TB (UNDER 8.0mm DIAMETER)

5.0mm lead spacing.

p

2

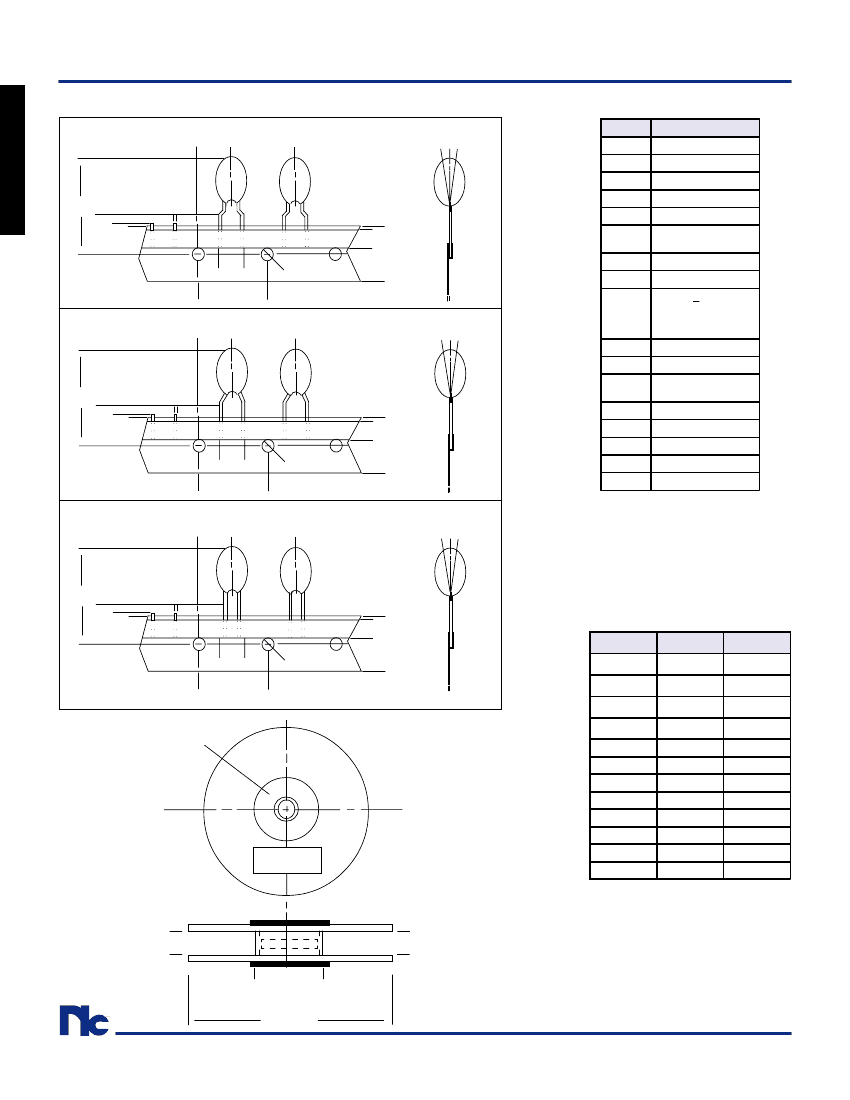

Taping Specifications

TAPING DIMENSIONS (mm)

Code

P

P1

P2

σ

Dimensions

12.7±0.3

5.50±1.0

6.35±0.4

±1.0

0.5±0.05

F2TR,F2TB=5.0

F1TR,F1TB=2.5

±2.0

4.0±0.2

+ 1.0

18............

- 0.5

6.0 min.

1.0 max.

16±0.5

19±1.0

9.0±0.5

18.0

32.25

11.0 max.

0.7±0.2

¦ ¦¦

v

p

¦

vh

¦ ¦

F2TR, F2TB (8.0mm AND OVER)

5.0mm lead spacing.

F1TR, F1TB

2.5mm lead spacing.

REEL DIMENSIONS (mm)

Diameter

30 max.

360 max.

80

NIC COMPONENTS CORPORATION

70 Maxess Rd., Melville, New York 11747 • (631) 396-7500 FAX (631)396-7575

¦

H

3

d

¦¦

¦

R

¦

P

¦

¦ ¦¦

p

2

v

p

W

2

P

¦

¦ ¦

¦

¦ ¦

¦

¦ ¦

d

S

∆h

D

T

¦ ¦

¦

¦ ¦

¦

H

¦ ¦

®

L H

1

S

D

W

1

W

¦

¦¦

¦ ¦

W

vh

¦

W1

W2

¦

H

3

d

¦¦

¦

R

¦

P

¦

¦ ¦¦

p

2

∆p

S

D

W

2

H

H1

H2

H3

L

T

¦

¦¦

¦

¦ ¦

¦

¦¦

¦

¦¦

¦ ¦

¦

¦ ¦

¦

H

¦ ¦

L H

1

W

1

W

¦

¦¦

¦ ¦

T

¦

∆h

Parts with diameters up to

9.0mm are available packaged

on tape. Larger diameter parts

are bulk only.

¦

H

3

d

¦¦

¦

R

¦

P

¦

S

D

W

2

¦

¦ ¦

¦

¦ ¦

¦

¦ ¦

¦

¦ ¦

¦

H

¦ ¦

¦

L H

1

W

1

PACKAGING QUANTITIES

Case Size

4.5x7.0

T

W

Reel

1000-1500

1000-1250

1000

750

500

Ammo

3000

2500

2000

-----------------

¦

¦¦

4.5x7.5

5.0x8.5

5.0x9.0

5.5x9.0

6.0x10.0

6.5x10.0

7.0x10.5

8.0x13.0

8.5x14.0

9.0x14.0

9.0x14.5

¦

53 max.

¦

45 max.

40 min.

¦
