NMC1206X5R225M16TRP

Description
CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 2.2uF, SURFACE MOUNT, 1206, CHIP
CategoryPassive components    capacitor
File Size63KB,4 Pages
ManufacturerNIC Components Corp
Download Datasheet Parametric View All

NMC1206X5R225M16TRP Overview

CAPACITOR, CERAMIC, MULTILAYER, 16V, X5R, 2.2uF, SURFACE MOUNT, 1206, CHIP

NMC1206X5R225M16TRP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1968797900
package instruction, 1206
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance2.2 µF
Capacitor typeCERAMIC CAPACITOR
Custom functionsConsult Factory For Other Cap Values
dielectric materialsCERAMIC
high1.9 mm
JESD-609 codee0
length3.2 mm
Manufacturer's serial numberNMC
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, PAPER
positive tolerance20%
Rated (DC) voltage (URdc)16 V
series1206(X5R,16V)
size code1206
surface mountYES
Temperature characteristic codeX5R
Temperature Coefficient15% ppm/°C
Terminal surfaceTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width1.6 mm

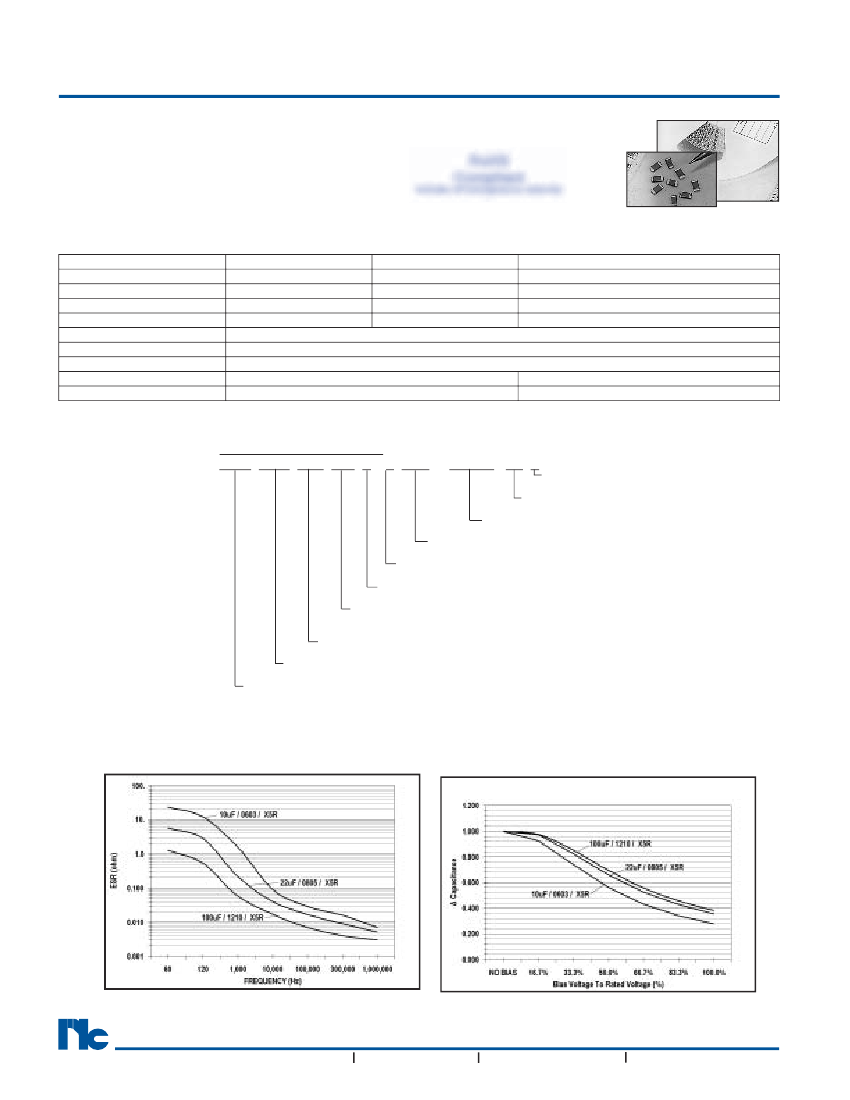

Multilayer Ceramic Chip Capacitors
FEATURES
• X7R, X5R AND Y5V DIELECTRICS
• HIGH CAPACITANCE DENSITY
• ULTRA LOW ESR & ESL
• EXCELLENT MECHANICAL STRENGTH
• NICKEL BARRIER TERMINATIONS
• RoHS COMPLIANT
• SAC SOLDER COMPATIBLE*
RoHS
Compliant
includes all homogeneous materials
NMC High CV Series
*See Part Number System for Details
Temperature Coefficient
X7R
X5R
Y5V
Capacitance Range
1.0µF ~ 22µF
1.0µF ~ 100µF
1.0µF ~ 100µF
Capacitance Tolerance
10% (K) & 20% (M)
10% (K) & 20% (M)
+80%/-20% (Z)
Operating Temperature Range
-55°C ~ +125°C
-55°C ~ +85°C
-30°C ~ +85°C
Temperature Characteristics
±15%
Cap.
±15%
Cap.
+22%, -82%
Cap.
Rated Voltages
4Vdc, 6.3Vdc, 16Vdc, 25Vdc, 50Vdc & 100Vdc
Dissipation Factor
See Sizes & Values Tables
insulation Resistance
100Megohm/µF minimum @ +25°C
Dielectric Withstanding Voltage
250% of Rated Voltage for 5 ±1 sec., 50mA max.
150% of Rated Voltage for 5 ±1 sec., 50mA max.
Test Conditions (EIA-198-2E)
1KHz, 0.5V ±0.2Vrms (ALC on)
1KHz, 1.0V ±0.2Vrms (ALC on)
*Reflow soldering is recommended. Contact NIC regarding the use of other soldering methods.
PART NUMBER SYSTEM
NMC 0603 Y5V 105 Z 25 TRP or TRPLP 3K F
RoHS Compliant
Optional Reel Qty (3K = 3,000pcs)
Tape & Reel (Embossed Plastic Carrier)
Tape & Reel (Paper carrier)
Voltage (Vdc)
Capacitance Tolerance Code (see chart)
Capacitance Code, expressed in pF, first 2 digits are
significant, 3rd digit is no. of zeros
Temperature Characteristic (X7R, X5R OR Y5V)
Size Code (see chart)
Series
Typical ESR versus Frequency
Typical Capacitance versus Bias Voltage
®
NIC COMPONENTS CORP.
NMC-HC rev. 002
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
