Thick Film Chip Resistors
FEATURES
• EIA STANDARD SIZING
01005(1/32W),
0201(1/20W), 0402(1/16W),
0402...H(1/8W),
0603(1/10W), 0805(1/8W), 1206(1/4W), 1210(1/3W), 2010(3/4W) AND 2512(1W)
•
AEC-Q200 QUALIFIED (EXCEPT 01005 CASE SIZE)
NRC Series
• GLASS OVERCOAT ASSURES STRONG MECHANICAL CONTRUCTION
includes all homogeneous materials
AND LONG LIFE, NICKEL BARRIER PREVENTS LEACHING
*See Part Number System for Details
• BOTH FLOW SOLDER AND REFLOW SOLDERING ARE APPLICABLE
• ZERO OHM (JUMPER) CHIP AND TRIMMABLE TYPE ARE AVAILABLE *4
Max.*1 Max.*2 Resistance Temperature
Resistance
Operating
EIA Power Rating
Resistance
Type
Working Overload Tolerance
Coefficient
Range
Temperature
Size
at 70°C
Value
Voltage Voltage
(Code)
(ppm/°C)
(Ω)
Range (°C)
±1% (F)
±300
10 ~ 91
E-24,E-96
±1% (F)
±200
100 ~ 1.62M
E-24,E-96
NRC01
01005 1/32 (0.031) W
15V
30V
±5% (J)
+600/-200
1.0 ~ 9.1
E-24
-55 ~ +125
±5% (J)
±300
10 ~ 91
E-24
±5% (J)
±200
100 ~ 10M
E-24
±1% (F)
+600/-200
1.0 ~ 9.76
E-24,E-96
±1% (F)
±200
10 ~ 10M
E-24,E-96
-55 ~ +155
±5% (J)
+600/-200
1.0 ~ 9.1
E-24
NRC02
0201 1/20 (0.05) W
25V
50V
(Effective
DC1944)
±5% (J)
E-24
±200
10 ~ 10M
±10% (K)
E-12
±1% (F)
+500/-200
1.0 ~ 9.76
E-24,E-96
±1% (F)
±100
10 ~ 1M
E-24,E-96
NRC04
0402 1/16 (0.063) W
50V
100V
±1% (F)
±300
1.02M ~ 10M
E-24,E-96
-55 ~ +155
±5% (J)
±200
10 ~ 1M
E-24
±5% (J)
±350
1.0 ~ 9.1 & 1.1M ~ 10M *3
E-24
±1% (F)
+500/-200
1.0 ~ 9.76
E-24,E-96
±1% (F)
±100
100 ~ 1M
E-24,E-96
NRC04...H 0402 1/8 (0.125) W
50V
100V
±1% (F)
±200
10 ~ 97.6
E-24,E-96
-55 ~ +155
±5% (J)
±200
10 ~ 1M
E-24
±5% (J)
+500/-200
1.0 ~ 9.1
E-24
±1% (F)
±400
1.0 ~ 9.76
E-24,E-96
±1% (F)
±100
33.2 ~ 1M
E-24,E-96
NRC06
0603 1/10 (0.10) W
50V
100V
±1% (F)
±200
10 ~ 32.4 & 1.1M ~ 10M *3
E-24,E-96
-55 ~ +155
±5% (J)
±200
10 ~ 1M
E-24
±5% (J)
±350
1.0 ~ 9.1 & 1.1M ~ 22M *3
E-24
±1% (F)
±400
1.0 ~ 9.76
E-24,E-96
±1% (F)
±100
33.2 ~ 1M
E-24,E-96
NRC10
0805 1/8 (0.125) W
150V
300V
±1% (F)
±200
10 ~ 32.4 & 1.1M ~ 10M *3
E-24,E-96
±5% (J)
±200
10 ~ 1M
E-24
±5% (J)
±350
1.0 ~ 9.1 & 1.1M ~ 22M *3
E-24
±1% (F)
±400
1.0 ~ 9.76
E-24,E-96
±1% (F)
±100
33.2 ~ 1M
E-24,E-96
NRC12
1206 1/4 (0.250) W
200V
400V
±1% (F)
±200
10 ~ 32.4 & 1.1M ~ 10M *3
E-24,E-96
±5% (J)
±200
10 ~ 1M
E-24
±5% (J)
±350
1.0 ~ 9.1 & 1.1M ~ 22M *3
E-24
±1% (F)
±100
E-24,E-96
-55 ~ +155
10 ~ 1M
NRC25
1210 1/3 (0.33) W
200V
400V
±5% (J)
±200
E-24
±5% (J)
±350
1.0 ~ 9.1 & 1.1M ~ 22M *3
E-24
±1% (F)
±100
E-24,E-96
10 ~ 1M
NRC50
2010 3/4 (0.75) W
200V
400V
±250
E-24
±5% (J)
±350
1.0 ~ 9.1 & 1.1M ~ 22M *3
E-24
±100
10 ~ 1M
±1% (F)
±250
2.0 ~ 9.76 *3
E-24,E-96
NRC100
2512
1W
200V
400V
±350
1.0 ~ 1.96 *3
±250
10 ~ 1M
±5% (J)
E-24
±350
1.0 ~ 9.1 & 1.1M ~ 22M *3
RoHS
Compliant
*Notes on page 2
1
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Thick Film Chip Resistors
Type
EIA
Size
Resistance
Rated Current
Rated Current 0.5A (0.05Ω max. DC Resistance)
Rated Current 0.5A (0.05Ω max. DC Resistance)
Rated Current 1.0A (0.05Ω max. DC Resistance)
Rated Current 1.0A (0.05Ω max. DC Resistance)
Rated Current 2.0A (0.05Ω max. DC Resistance)
Rated Current 2.0A (0.05Ω max. DC Resistance)
Rated Current 2.0A (0.05Ω max. DC Resistance)
Rated Current 2.0A (0.05Ω max. DC Resistance)
Rated Current 2.0A (0.05Ω max. DC Resistance)
NRC01ZO 01005
NRC02ZO 0201
NRC04ZO 0402
NRC06ZO 0603
NRC10ZO 0805
NRC12ZO 1206
NRC25ZO 1210
NRC50ZO 2010
NRC100ZO 2512
Operating
Temperature
Range (°C)
-55 ~ +125
NRC Series
Zero Ohm Jumper
-55 ~ +155
Note *1
- Maximum allowable continuous Working Voltage
for all resistors is the lower of the two values:
“Maximum Working Voltage” as specified above
(or)
Power rating (Watts) x Resistance (Ohms)
Power Derating Curve:
For operation above 70
°
C,
power rating must be derated according to the following chart:
100
80
RATE (%)
60
40
20
0
-20
20
60
100
140 160
125 155
o
Note *2
- Maximum allowable Overload voltage is two times the
Maximum Working Voltage (see Note *1 above).
Note *3 - Made to order. Contact NIC for leadtime.
Note *4 - Please contact NIC for availability of laser trimmable
versions of 0805 and 1206 sizes parts.
Note *5 - Please note, NIC’s NRC series products are capable
of meeting the following specifications: JIS-C 5202,
EIAJ RC-2690, EIA575, EIA PDP-100, MIL-R-5542D
and UL94V-0.
C
0402/0603/0805/1206/1210/2010/2512
0201
DIMENSIONS (mm)
Type
NRC01
NRC02
NRC04
NRC04...H
NRC06
NRC10
NRC12
NRC25
NRC50
NRC100
NRC01ZO
NRC02ZO
NRC04ZO
NRC06ZO
NRC10ZO
NRC12ZO
NRC25ZO
NRC50ZO
NRC100ZO
Power
Rating
1/32W
1/20W
1/16W
1/8W
1/10W
1/8W
1/4W
1/3W
3/4W
1W
JUMPER
JUMPER
JUMPER
JUMPER
JUMPER
JUMPER
JUMPER
JUMPER
JUMPER
EIA
Size
01005
0201
0402
0402
0603
0805
1206
1210
2010
2512
01005
0201
0402
0603
0805
1206
1210
2010
2512
L
0.40 ± 0.02
0.6 ± 0.03
1.0
+0.1/-0.05
1.0
+0.1/-0.05
1.6 ± 0.15
2.0 ± 0.20
3.1 ± 0.15
3.1 ± 0.15
5.0 ± 0.20
6.3 ± 0.20
W
H
T
t
0.10 ± 0.03
0.15 ± 0.05
0.25 ± 0.1
0.25 ± 0.1
0.3 ± 0.15
0.35 ± 0.15
0.35 ± 0.15
0.50 ± 0.25
0.50 ± 0.30
0.70 ± 0.30
0.20 ± 0.02 0.13 ± 0.02 0.10 ± 0.03
0.3 ± 0.03 0.25 ± 0.05 0.1 ± 0.05
0.5
+0.1/-0.05
0.3 ± 0.10
0.2 ± 0.1
0.5
+0.1/-0.05
0.32 ± 0.05 0.20 ± 0.1
0.8 ± 0.15 0.45 ± 0.1 0.3 ± 0.15
1.25 ± 0.10 0.5 ± 0.10 0.35 ± 0.20
1.55 ± 0.15 0.55 ± 0.10 0.45 ± 0.20
2.50 ± 0.20 0.55 ± 0.10 0.50 ± 0.20
2.50 ± 0.15 0.60 ± 0.10 0.60 ± 0.20
3.20 ± 0.20 0.60 ± 0.10 0.70 ± 0.20
Same as NRC01
Same as NRC02
Same as NRC04
Same as NRC06
Same as NRC10
Same as NRC12
Same as NRC25
Same as NRC50
Same as NRC100
2
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE

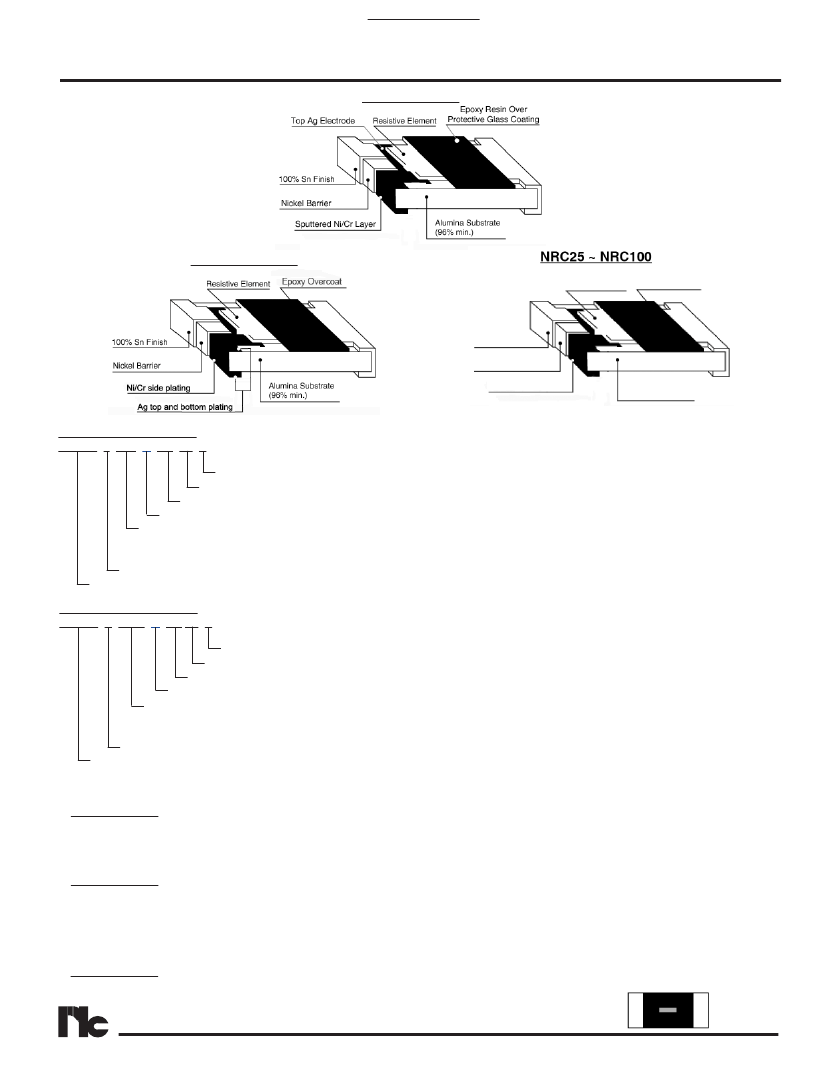

CONSTRUCTION
Thick Film Chip Resistors
NRC01 (01005)
NRC Series
NRC02 ~ NRC12
Resistive Element
Protective
Resin Overcoat
100% Sn Finish
Nickel Barrier
Ag & Resin or
NiCr Film
Alumina Substrate
(96% min.)
PART NUMBER SYSTEM (E-24 VALUES)
NRC12 J 103
H
TR 10 F
RoHS compliant
Optional 10,000 piece reel
Tape & Reel Packaging
H = 1/10W for 0402 case size
Resistance Code: First 2 figures are significant,
3rd digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: J=5% (Std), G=2% (Optional)
Series and Size
PART NUMBER SYSTEM (E-96 VALUES)
NRC10 F 1003
H
TR 10 F
Examples of Resistance Code: 4R7 = 4.7 ohms 103 = 10K ohms
100 = 10 ohms 104 = 100K ohms
101 = 100 ohms 105 = 1 meg ohms
102 = 1K ohms 106 = 10meg ohms
Marking
RoHS compliant
Optional 10,000 piece reel
Tape & Reel Packaging
H = 1/8W for 0402 Case Size
Resistance Code: First 3 figures are significant,
4th digit is the multiplier, “R”
indicates a decimal point.
Tolerance Code: F=1% (Std)
Series and Size
Examples of Resistance Code: 10R0 = 10 ohms 1004 = 1meg ohms
47R5 = 47.5 ohms 1050 = 105 ohms
1000 = 100 ohms
1501 = 1.5K ohms
1001 = 1K ohms
1052 = 10.5K ohms
1002 = 10K ohms 1153 = 115K ohms
1003 = 100K ohms 1214 = 1.21meg ohms
1. For
E-12 & E-24
Series (±1%=F, ±2% = G,
±5% = J, (STD) Tolerance In 0603, 0805, 1206, 1210, 2010 and 2512 sizes:
3 DIGIT SYSTEM - First two digits are significant and third digit is multiplier, “R” indicates decimal on values under 10 ohms.
Examples: R10 = .10 ohms 1R0 = 1.0 ohms
103 = 10k ohms 101 = 100 ohms
102 = 1k ohms 470 = 47 ohms
104 = 100k ohms 105 = 1 megohms
2. For
E-96
Series (±1%-F Tolerance) in 0805, 1206 and 1210 sizes:
4 DIGIT SYSTEM - First 3 digits are significant and fourth digit is multiplier, “R” indicates decimal on values under 100 ohms.
Examples: 0R10 = .10 ohms 1R00 = 1.0 ohms 10R0 = 10 ohms 1003 = 100 kohms
1000 = 100 ohms
1004 = 1 megohms 1001 = 1k ohms
2213 = 221k ohms
1052 = 10.5k ohms 1002 = 10k ohms
3. For
E-96
Series (±1% -F Tolerance) in 0603 size
3 DIGIT SYSTEM (Due to space restrictions)
4. No marking on 01005, 0201 or 0402 parts with the exception of a "-" to denote NRC04...H 1/8 watt parts
NRC04...H Marking
3
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Thick Film Chip Resistors
E-12
Value
10
12
15
18
22
27
33
39
47
56
68
82
E-24
Value
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
Value Code
100
01
110
05
121
09
133
13
147
17
162
21
178
25
196
29
215
33
237
37
261
41
287
45
316
49
348
53
383
57
422
61
464
65
511
69
562
73
619
77
681
81
750
85
825
89
909
93
Value Code
102
02
113
06
124
10
137
14
150
18
165
22
182
26
200
30
221
34
243
38
267
42
294
46
324
50
357
54
392
58
432
62
475
66
523
70
576
74
634
78
698
82
768
86
845
90
931
94
E-96
Value Code
105
03
115
07
127
11
140
15
154
19
169
23
187
27
205
31
226
35
249
39
274
43
301
47
332
51
365
55
402
59
442
63
487
67
536
71
590
75
649
79
715
83
787
87
866
91
953
95
Value Code
107
04
118
08
130
12
143
16
158
20
174
24
191
28
210
32
232
36
255
40
280
44
309
48
340
52
374
56
412
60
453
64
499
68
549
72
604
76
665
80
732
84
806
88
887
92
976
96
NRC Series
Note: 0603 1% resistor values that are exclusive to E-12 or E-24 (ex. 12K) are marked with the three character 5% tolerance code
STANDARD E-12, E-24, E-96 VALUES AND 0603 1% TOLERANCE RESISTANCE CODES
MULTIPLIER CODE
Code
A B,b C D,d E
F
G H
X
Y
Z
0
1
2
3
4
5
6
7
-1
-2
Multiplier 10 10 10 10 10 10 10 10 10 10 10
-3
CODING FORMULA
XX
X
Multiplier Code
Resistance Code
Example: 10.2kΩ
= 102 x 10
2
Ω
= 02C
02 C
33.2
Ω
= 332 x 10
-1
= 51X
51 X
TAPING SPECIFICATIONS
(1) Availability
Type
NRC01
NRC02
NRC04
NRC04...H
NRC06
NRC10
NRC12
NRC25
NRC04ZO
NRC06ZO
NRC10ZO
NRC12ZO
NRC25ZO
Power
Rating
1/32W
1/20W
1/16W
1/8W
1/10W
1/8W
1/4W
1/3W
Jumper
Jumper
Jumper
Jumper
Jumper
EIA
Size
01005
0201
0402
0402
0603
0805
1206
1210
0402
0603
0805
1206
1210
Fig.
A
A
A
A
A
A
A
A
A
A
A
A
A
Carrier Tape
Material
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Paper
Width (mm)
8
8
8
8
8
8
8
8
8
8
8
8
8
Qty per
7" Reel
20,000
10,000
10,000
10,000
5,000
5,000
5,000
5,000
10,000
5,000
5,000
5,000
5,000
MARKING EXAMPLES
10Ω = 01X
7.5k
Ω
= 85B or 85b
150k
Ω
= 18D or 18d
1 MegΩ = 01E
0603 1% E-12/E-24 Values
160Ω = 161
12KΩ = 123
8.2MΩ = 825
Qty per
10" Reel
N/A
N/A
20,000/30,000
20,000/30,000
10,000
10,000
10.000
N/A
N/A
10,000
10,000
10.000
N/A
Qty per
13" Reel
N/A
50,000
50,000
50,000
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
4
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Thick Film Chip Resistors
(2) PAPER TAPE DIMENSIONS (mm)
FIG. A
Type
NRC01*
NRC02*
NRC04*
NRC04..H
NRC06*
NRC10*
NRC12*
NRC25*
EIA Size
01005
0201
0402
0402
0603
0805
1206
1210
A
0.25 ± 0.05
0.41 ±0.1
0.70 ± 0.05
0.70 ± 0.05
1.135 ± 0.05
1.65 ±0.2
2.0 ±0.2
2.85 ± 0.2
B
0.45 ± 0.05
0.71 ±0.1
1.20 ± 0.05
1.20 ± 0.05
1.95 ± 0.05
2.4 ±0.2
3.6 ±0.2
3.50 ± 0.2
D
E
F
P
o
P
1
2.0 ± 0.05
2.0 ± 0.1
2.0 ± 0.05
2.0 ± 0.05
N/A
P
2
N/A
P
3
2.0 ± 0.05
2.0 ± 0.1
2.0 ± 0.05
2.0 ± 0.05
4.0 ± 0.05
1.4 max.
T
1
0.39 max.
1.0 max.
NRC Series
T
2
0.31 ± 0.03
0.5 max.
W
1.5 1.75 3.5
4.0
+ 0.1 ± 0.1 ± 0.05 ± 0.1
1.1 max.
4.0
± 0.05
1.0 max.
8.0
± 0.2
* Same for JUMPER (ZO) types.
T2
P
0
P
3
D
E
Cover tape
F W
B
A
T1
P
1
P
2
(3) EMBOSSED PLASTIC TAPE SPECIFICATION
FIG. B.
Type
NRC50*
NRC100*
EIA Size
2010
2512
A
2.9 ± 0.1
3.6 ± 0.1
B
5.4 ± 0.1
6.9 ± 0.1
D
1.50 ± 0.10
E
1.5 ± 0.10
F
P
0
4.0 ± 0.10
P
1
4.0 ± 0.05
W
12.0 ± 0.10
Qty per 7" Reel
4,000
4,000
5.65 ± 0.05
* Same for JUMPER (ZO) types.
0.2 ±0.05
P
0
D
E
Cover tape
F W
B
A
1.1 Max.
P
1
(4)
REEL SPECIFICATIONS
FIG. C.
2.0
±
0.5
178∅, 254∅ or 330∅ ±2
60∅,80∅ or 100∅
±2
1. Leader tape : Approximately 250
m/m (160mm for 0201 case size)
leader shall be provided at each end
of the tape.
2. Accumulative tolerance of feeding
hole and chip pocket shall not exceed
0.2mm over 10 pitches.
Type
NRC01*
NRC02*
NRC04*
NRC06*
NRC10*
NRC12*
NRC25
NRC50
NRC100*
EIA Size
01005
0201
0402
0603
0805
1206
1210
2010
2512
±
2
±
.0
0.
5
21
0.
8
L (mm)
178 & 254
330
9.0 ± 0.3
N/A
10.0 ±1.5 9.0 ±1.0
10.0 ±1.5 9.0 ±1.0
10.0 ±1.5
N/A
10.0 ±1.5
N/A
10.0 ±1.5
N/A
10.0 ±1.5
N/A
13.5 ±1.5
N/A
13.5 ±1.5
N/A
*13∅
±0.5
* Same for JUMPER (ZO) types.
L
*13.5 ±0.5 for 330mm reels
5
NIC COMPONENTS CORP.
www.niccomp.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Embedded System
京公网安备 11010802033920号
EEWORLD
