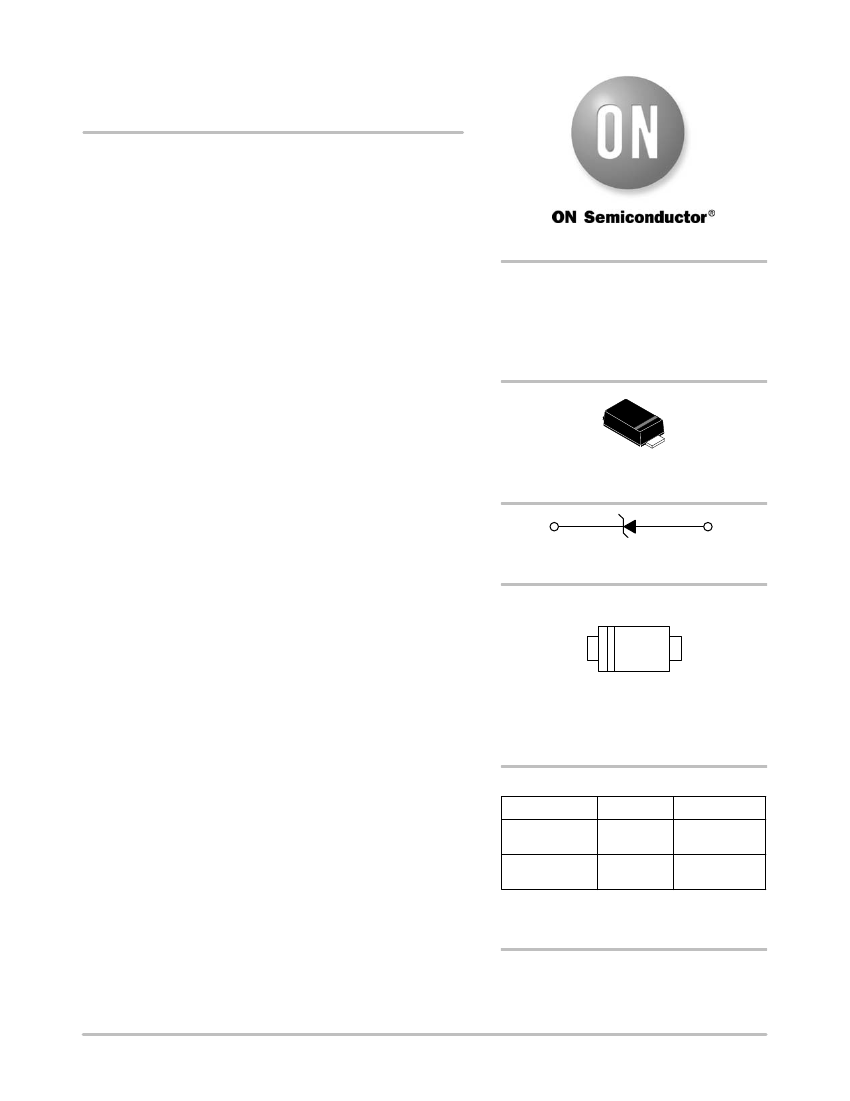

SMF5.0AT1G Series,
SZSMF5.0AT1G Series
200 W Transient
Voltage Suppressor
SOD-123 Flat Lead Package
The SMF5.0AT1G Series is designed to protect voltage sensitive
components from high voltage, high energy transients. Excellent
clamping capability, high surge capability, low zener impedance and
fast response time. Because of its small size, it is ideal for use in
cellular phones, portable devices, business machines, power supplies
and many other industrial/consumer applications.
Features
http://onsemi.com
PLASTIC SURFACE MOUNT
ZENER OVERVOLTAGE
TRANSIENT SUPPRESSOR
5
−
58 VOLTS
200 WATT PEAK POWER
•
•
•
•
•
•
•
•
•
•
•
•
•
Stand−off Voltage: 5
−
58 Volts
Peak Power
−
200 Watts @ 1 ms (SMF5.0A
−
SMF58A)
Low Leakage
Response Time is Typically < 1 ns
ESD Rating of Class 3 (> 16 kV) per Human Body Model
ESD Rating of Level 4 (8 kV Contact Discharge) per IEC61000−4−2
EFT (Electrical Fast Transients) Rating of 40 A per IEC61000−4−4
Low Profile
−
Maximum Height of 1.0 mm
Small Footprint
−
Footprint Area of 8.45 mm
2
Supplied in 8 mm Tape and Reel
−
3,000 Units per Reel
Cathode Indicated by Polarity Band
Lead Orientation in Tape: Cathode Lead to Sprocket Holes
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
•
These Devices are Pb−Free and are RoHS Compliant*
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic
SOD−123FL
CASE 498
1
1: CATHODE
2: ANODE
2
MARKING DIAGRAM
1
CATHODE
xx
M
G
xx M
G
G
2
ANODE
Epoxy Meets UL 94 V−0
LEAD FINISH:
100% Matte Sn (Tin)
MOUNTING POSITION:
Any
QUALIFIED MAX REFLOW TEMPERATURE:
260°C
= Device Code (Refer to page 3)
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
SMFxxxAT1G
SZSMFxxxAT1G
Package
SOD−123FL
(Pb−Free)
SOD−123FL
(Pb−Free)
Shipping
†
3,000 /
Tape & Reel
3,000 /
Tape & Reel
Device Meets MSL 1 Requirements
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
DEVICE MARKING INFORMATION
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2013
See specific marking information in the device marking
column of the Electrical Characteristics table on page 3 of
this data sheet.
May, 2013
−
Rev. 7
1
Publication Order Number:
SMF5.0AT1/D
SMF5.0AT1G Series, SZSMF5.0AT1G Series
MAXIMUM RATINGS
Rating
Maximum P
pk
Dissipation (PW−10/1000
ms)
(Note 1) SMF5.0A
−
SMF58A
Maximum P
pk
Dissipation @ T
A
= 25°C, (PW−8/20
ms)
(Note 2)
DC Power Dissipation
@ T
A
= 25°C (Note 3)
Derate above 25°C
Thermal Resistance, Junction−to−Ambient (Note 3)
Thermal Resistance, Junction−to−Lead (Note 3)
Operating and Storage Temperature Range
Symbol
P
pk
P
pk
°P
D
°
R
qJA
R
qJcathode
T
J
, T
stg
Value
200
1000
385
4.0
325
26
−55
to +150
Unit
W
W
°mW
mW/°C
°C/W
°C/W
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
1. Non−repetitive current pulse at T
A
= 25°C, per waveform of Figure 2.
2. Non−repetitive current pulse at T
A
= 25°C, per waveform of Figure 3.
3. Mounted with recommended minimum pad size, DC board FR−4.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless
otherwise noted, V
F
= 3.5 V Max. @ I
F
(Note 4) = 12 A)
Symbol
I
PP
V
C
V
RWM
I
R
V
BR
I
T
I
F
V
F
Parameter
Maximum Reverse Peak Pulse Current
Clamping Voltage @ I
PP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current @ V
RWM
Breakdown Voltage @ I
T
Test Current
Forward Current
Forward Voltage @ I
F
V
C
V
BR
V
RWM
I
F
I
I
R
V
F
I
T
V
I
PP
4. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms,
duty cycle = 4 pulses per minute maximum.
Uni−Directional TVS
http://onsemi.com
2
SMF5.0AT1G Series, SZSMF5.0AT1G Series
ELECTRICAL CHARACTERISTICS
(T
L
= 30°C unless otherwise noted, V
F
= 1.25 Volts @ 200 mA)
V
RWM
(V)
Device*
SMF5.0AG
SMF6.0AG
SMF6.5AG
SMF7.0AG
SMF7.5AG
SMF8.0AG
SMF9.0AG
SMF10AG
SMF11AG
SMF12AG
SMF13AG
SMF14AG
SMF15AG
SMF18AG
SMF20AG
SMF22AG
SMF24AG
SMF26AG
SMF28AG
SMF30AG
SMF33AG
SMF36AG
SMF48AG
SMF51AG
SMF58AG
Marking
KE
KG
KK
KM
KP
KR
KV
KX
KZ
LE
LG
LK
LM
LT
LV
LX
LZ
ME
MG
MK
MM
MP
MX
MZ
NG
(Note 5)
5
6
6.5
7
7.5
8
9
10
11
12
13
14
15
18
20
22
24
26
28
30
33
36
48
51
58
V
BR
@ I
T
(V)
(Note 6)
Min
6.4
6.67
7.22
7.78
8.33
8.89
10
11.1
12.2
13.3
14.4
15.6
16.7
20
22.2
24.4
26.7
28.9
31.1
33.3
36.7
40
53.3
56.7
64.4
Nom
6.7
7.02
7.6
8.2
8.77
9.36
10.55
11.7
12.85
14
15.15
16.4
17.6
21
23.35
25.6
28.1
30.4
32.8
35.1
38.7
42.1
56.1
59.7
67.8
Max
7
7.37
7.98
8.6
9.21
9.83
11.1
12.3
13.5
14.7
15.9
17.2
18.5
22.1
24.5
26.9
29.5
31.9
34.4
36.8
40.6
44.2
58.9
62.7
71.2
I
T
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
I
R
@ V
RWM
(mA)
400
400
250
100
50
25
5
2.5
2.5
2.5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
V
C(Max)
(V)
9.2
10.3
11.2
12
12.9
13.6
15.4
17
18.2
19.9
21.5
23.2
24.4
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
77.4
82.4
93.6
I
PP(Max)
(A)
(Note 7)
21.7
19.4
17.9
16.7
15.5
14.7
13.0
11.8
11.0
10.1
9.3
8.6
8.2
6.8
6.2
5.6
5.1
4.8
4.4
4.1
3.8
3.4
2.6
2.4
2.1
5. A transient suppressor is normally selected according to the Working Peak Reverse Voltage (V
RWM
) which should be equal to or greater
than the DC or continuous peak operating voltage level.
6. V
BR
measured at pulse test current I
T
at ambient temperature of 25°C.
7. Surge current waveform per Figure 2 and derate per Figure 3.
*Include SZ-prefix devices where applicable.
http://onsemi.com
3
SMF5.0AT1G Series, SZSMF5.0AT1G Series
TYPICAL PROTECTION CIRCUIT
Z
in
V
in
LOAD
V
L
10,000
P
P
, PEAK POWER (WATTS)
VALUE (%)
1000
100
PULSE WIDTH (t
P
) IS DEFINED
AS THAT POINT WHERE THE PEAK
t
r
CURRENT DECAYS TO 50%
OF I
RSM
.
t
r
≤
10
ms
PEAK VALUE
−
I
RSM
100
50
t
P
I
HALF VALUE
−
RSM
2
10
1.0
10
100
t
P
, PULSE WIDTH (ms)
1000
10,000
0
0
1
2
3
4
t, TIME (ms)
Figure 1. Pulse Rating Curve
Figure 2. 10 X 1000
ms
Pulse Waveform
100
% OF PEAK PULSE CURRENT
90
80
70
60
50
40
30
20
10
0
0
t
r
PEAK VALUE I
RSM
@ 8
ms
PULSE WIDTH (t
P
) IS DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8
ms
HALF VALUE I
RSM
/2 @ 20
ms
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT @ T
A
= 25°C
160
140
120
100
80
60
40
20
0
0
25
50
75
100
125
150
t
P
20
40
t, TIME (ms)
60
80
T
A
, AMBIENT TEMPERATURE (°C)
Figure 3. 8 X 20
ms
Pulse Waveform
Figure 4. Pulse Derating Curve
http://onsemi.com
4
SMF5.0AT1G Series, SZSMF5.0AT1G Series
P D , MAXIMUM POWER DISSIPATION (mW
1
0.7
0.5
DERATING FACTOR
0.3
0.2
0.1
0.07
0.05
0.03
0.02
0.01
10
ms
0.1 0.2
0.5
1
2
5
10
20
50 100
PULSE WIDTH
10 ms
400
350
300
250
200
150
100
50
0
0
25
50
75
100
125
150
175
T, TEMPERATURE (°C)
1 ms
100
ms
D, DUTY CYCLE (%)
Figure 5. Typical Derating Factor for Duty Cycle
Figure 6. Steady State Power Derating
V F, TYPICAL FORWARD VOLTAGE (VOLTS)
1.2
1.0
0.8
0.6
0.4
0.2
0
1000
C, CAPACITANCE (pF)
MEASURED @ ZERO BIAS
100
MEASURED @ 50% V
RWM
10
−55
25
85
150
1
1
10
100
1000
T, TEMPERATURE (°C)
WORKING PEAK REVERSE VOLTAGE (VOLTS)
Figure 7. Forward Voltage
Figure 8. Capacitance versus Working Peak
Reverse Voltage
http://onsemi.com
5
