SPECIFICATION
Patent Pending
FXP.810 2.4/4.9-6GHz Dual-band Dipole Antenna
Part No.
Product Name
Feature
:
:
:
FXP.810.09.0100C

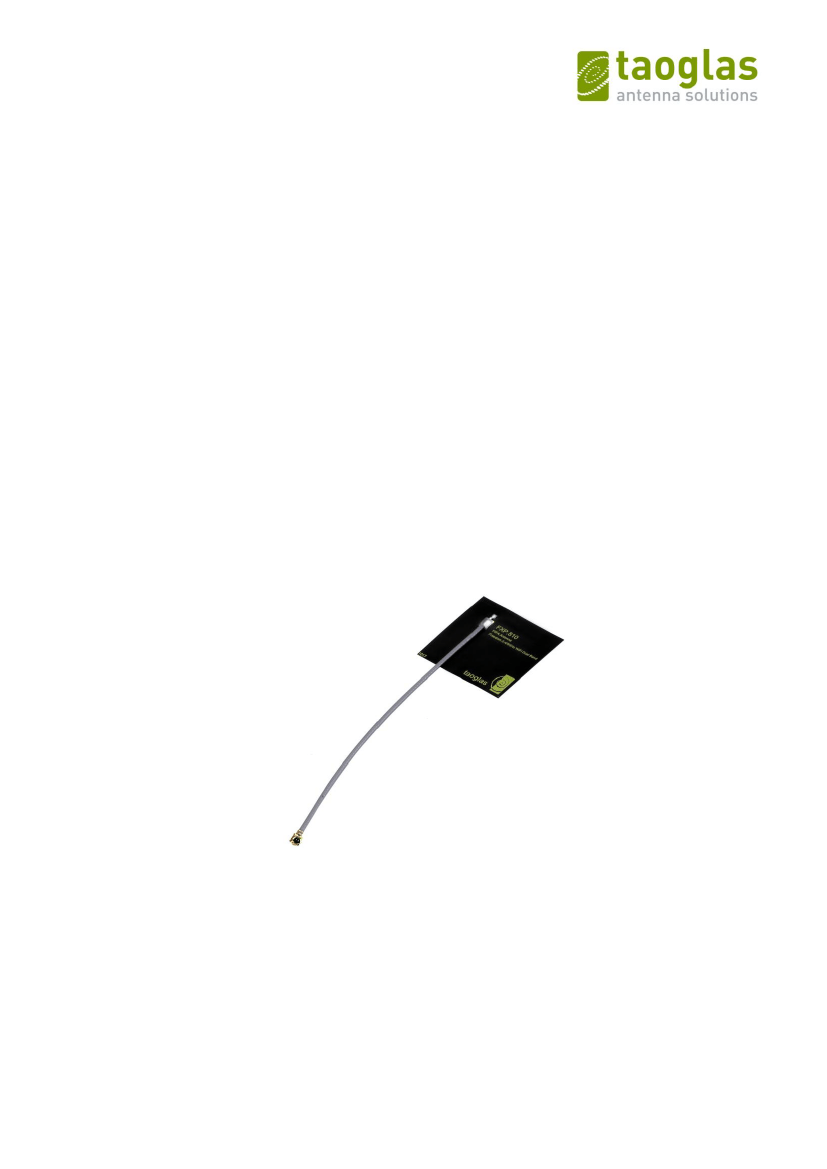

FXP.810 Freedom WIFI 2.4/4.9-6GHz Series
Dipole Antenna
Very High Efficiency
Ground-plane Independent
MMCX(M)RA Connector
1.37mm Diameter Micro Cable - 100 mm
31mm*31mm*0.1 mm
RoHS Compliant
SPE-11-8-051/A
26-July-11
Page 1 of 7
Introduction
The FXP810 has a peak gain of 1.5dBi at 2.4GHz and efficiencies of 60-70%, increasing
to 5dBi and 80-90% along bands 4.9GHz to 6GHz.
At 31*31*0.1mm in size this antenna is uniquely valuable for small tag type mobile
devices in that it can slip between the battery and the main PCB ground of small devices
to get increased performance from the ground coupling effect. Only the top 6.5mm
radiating element needs to protrude out from the side of the main board, allowing such
devices to have the highest possible performance at smallest possible dimensions, it
accomplishes this because it does not need clearance or footprint space on the device
board itself that all on-board chip, loop and patch antennas need.
I. Specification
ELECTRICAL
Frequency
Peak Gain (free space)
Peak Gain (on plastic*)
Average Gain (free space)
Average Gain (on plastic)
Efficiency (free space)
Efficiency (on plastic)
VSWR
Impedance
Polarization
Radiation Pattern
Input Power
MECHANICAL
Dimensions
Antenna Body Material
Cable
Connector
Temperature Range
Humidity
31mm*31mm*0.1mm
Polymer
Gray 100mm 1.37 co-axial
MMCX(M)RA
ENVIRONMENTAL
-40°C to 85°C
Non-condensing 65°C 95% RH
2.4 ~ 2.5GHz,
1.5dBi
2.4dBi
-2.6dBi
-1.2dBi
56%
76%
≦1.7
: 1
50 Ohms
Linear
Omni
2W max.
4.9 ~ 5.8GHz
5.1dBi
5.0dBi
-1.1dBi
-0.8dBI
78%
84%
* On ABS Plastic 4mm
SPE-11-8-051/A
26-July-11
Page 2 of 7
