Blizzard
29
28
26
30
1
2
3
6
8
B1
11
12
13
14
16 15
10
27
25

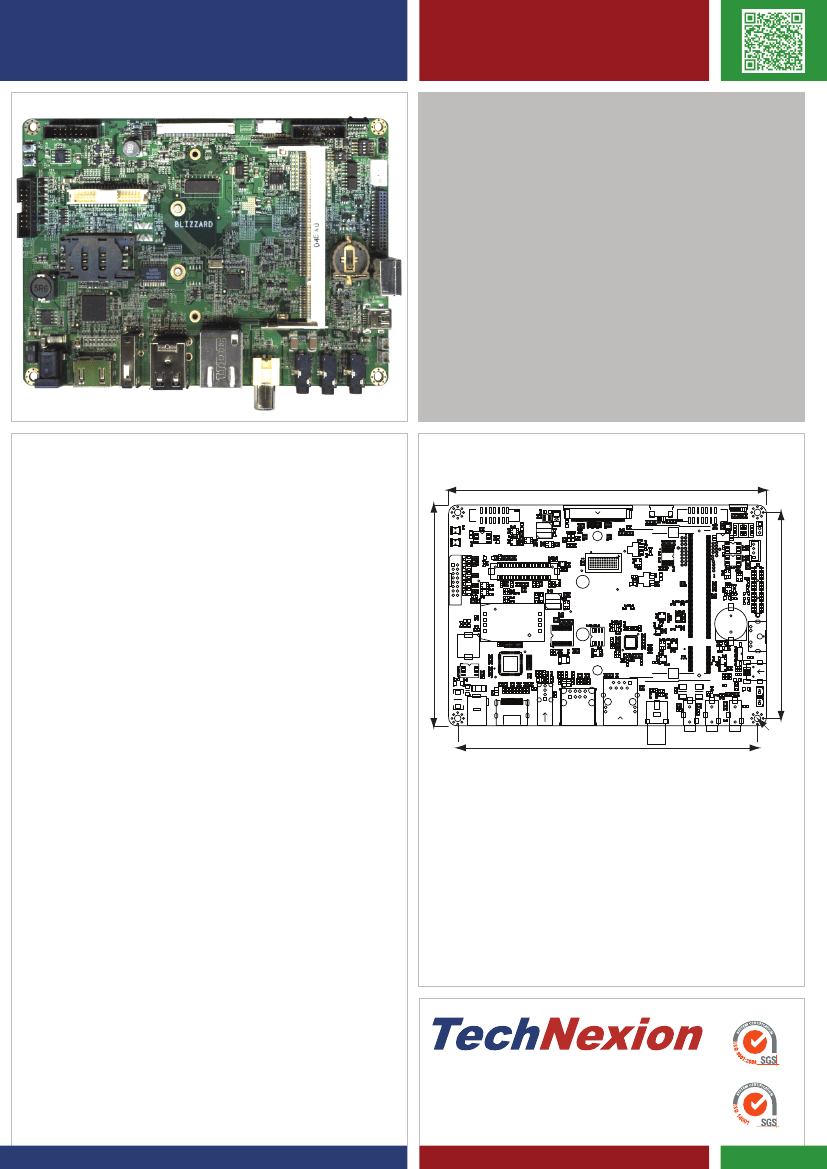

Interface Base Board
for TDM-3730 Series
Complete TDM-3730 multimedia development
board compatible with any display through
LVDS, TTL, HDMI, VGA, S-Video interfaces.
Expand storage options with USB, SATA and
micro-SD card slot.
Record and play back audio and video easily
over the Composite, S-video interfaces, audio
jacks and speakers and Camera expansion
interface.
Communicate over LAN, RS-232, RS-422/485,
SPI, I
2
C to control remote or external devices
or connect over a 3G data module to the outside
world.
24
23
22
21
20
19
18 17
System
RTC
System on module
Compatible with TDM-3730 by a
200 pin SO-DIMM connector (B1)
with backup battery (11)
Dimensions
units in mm
147
Interfaces
Connectors
Blizzard
Base board for TDM-3730 series
ARM Expansion Modules
TCM-500A
5 MP camera module
Power
Input power
12 VDC
Development kits available
Environmental and Mechanical
Temperature
Humidity
Dimensions
Weight
Shock
Vibration
Commercial: 0° to 50° C
10-90%
147 x 102 mm (5¾ x 4 inch)
92 grams
50G / 25ms
20G / 0-600 Hz
Phone: +886-2-8227-3585
E-mail: sales@technexion.com
Web:
http://www.technexion.com
2012-01. All specifications are subject to change without notice.
Expansion header
3 standard-USB hosts (21,
22)
1 mini-USB device/ OTG (13)
RJ-45 LAN connector (20)
micro-SD card slot (bottom)
Stereo audio in/out 3.5 mm (17,18)
Microphone 3.5 mm (16)
2W amplified speaker (14,
15)
18 bit LVDS and touchpanel (27)
TTL & touchpanel for 4.3” LCD
TTL & touchpanel for 7” LCD (1)
RCA composite in (19)
S-video out (12)
HDMI connector (23)
MiniPCIe slot (bottom) +
SIM card (25) for 3G module slot
(bottom)
VGA by pinheader (26), Camera
expansion (10), keypad (30),
SPI (3), RS-232 (6), UART,
RS-422/485 (8), I
2
C, GPIO
95.2
Order Information
102
138.5
M3
