20IMX7-05-7D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 20IMX7-05-7D

20IMX7-05-7D: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 6W, Hybrid; CategoryPower/power management The power supply circuit; File Size339KB，15 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric View All

20IMX7-05-7D Overview

DC-DC Regulated Power Supply Module, 1 Output, 6W, Hybrid

20IMX7-05-7D Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	MODULE
package instruction	,
Contacts	9
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	8.4 V
Nominal input voltage	20 V
JESD-30 code	R-XDFM-P9
JESD-609 code	e0
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	5.13 V
Minimum output voltage	5.07 V
Nominal output voltage	5.1 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	6.1 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Rugged Environment

DC-DC Converters <40 Watt

IMX 7 Series

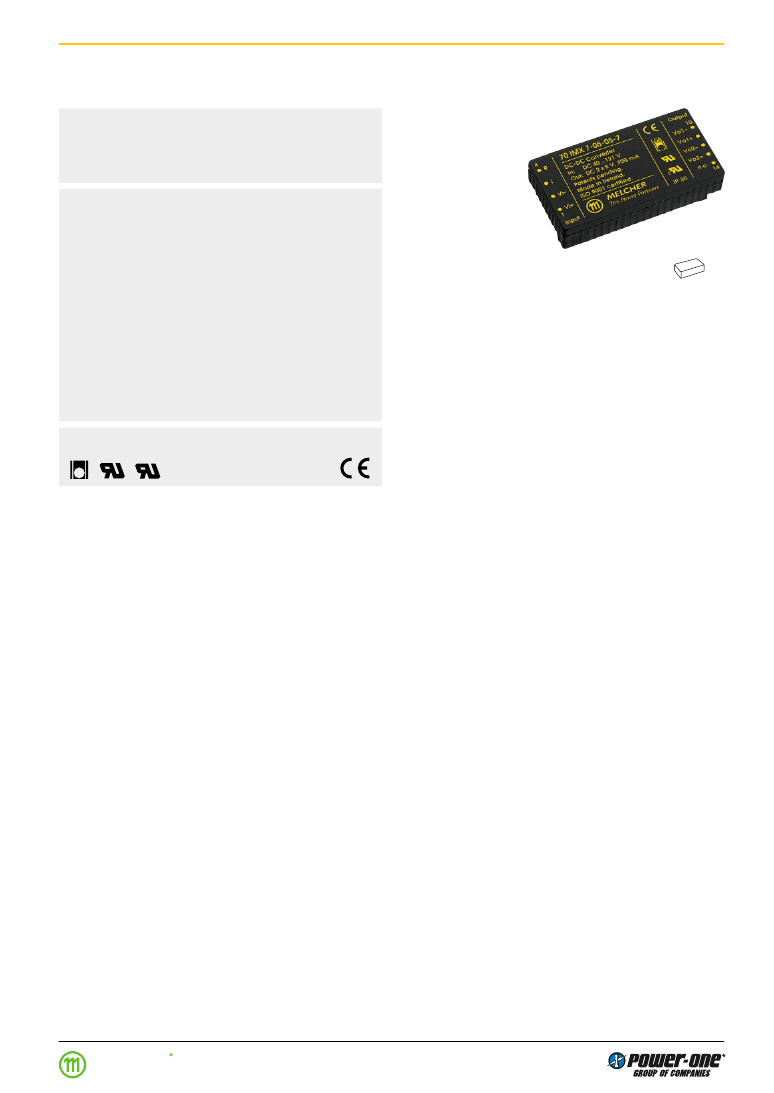

7 Watt DC-DC Converters

Input to output electric strength test up to 2.5 kV DC

Input voltage ranges:

8.4...36, 16.8...75, 40...121 and 60...150 V DC

Single, double outputs of 3.3, 5, 12, 15 and 24 V DC

• Extremely wide input voltage ranges

• Electrical isolation, also between outputs

• Emissions below EN 55 022 level B.

• Immunity to IEC/EN 61000-4-2, -3, -4, -5 and -6

• High efficiency (typ. 84%)

• Inhibit input, output voltage adjustable

• Flex power: flexible load distribution on outputs

• Outputs no-load, overload and short-circuit proof

• Operating ambient temperature up to –40...85°C

• High reliability and no derating

• 2"

1" case with 10.5 mm profile

• Supplementary insulation

Safety according to IEC/EN 60950, UL 1950

LGA

IMX 7 Series

25.4

1.0"

10.5

0.42"

50.8

2.0"

For 70/110 IMX types

Summary

The IMX 7 series of board mountable 7 Watt DC-DC con-

verters has been designed according to the latest industry

requirements and standards. The converters are particularly

suitable for use in mobile or stationary applications in trans-

port, railways, industry or telecommunications where vari-

able input voltages or high transient voltages are prevalent.

Covering a total input voltage range from 8.4 V DC up to

150 V DC with four different types the units are available

with single and electrically isolated double outputs allowing

the configuration of output voltages from 3.3 V DC up to

48 V DC externally adjustable, with flexible load distribution

on double output units. An inhibit input allows remote con-

verter on/off.

Features include efficient input and output filtering with un-

surpassed transient and surge protection, low output ripple

and noise, consistently high efficiency over the entire input

voltage range, high reliability as well as excellent dynamic

response to load and line changes.

The converters provide supplementary insulation with

SELV outputs as e.g. required in battery supported sys-

tems where the bus voltage may exceed the SELV limit of

60 V DC. They are designed and built according to the inter-

national safety standards IEC/EN 60950, UL 1950, CAN/

CSA C22.2 No.950-95 and are LGA and UL marked. The

70 IMX 7 and 110 IMX 7 types are CE marked.

The circuit comprises of integrated planar magnetics and

all components are automatically assembled and solidly

soldered onto a single PCB without any wire connections.

Magnetic feedback ensures maximum reliability and re-

peatability in the control loop over all operating conditions.

Careful considerations of possible thermal stresses ensure

the absence of hot spots providing long life in environments

where temperature cycles are a reality. The thermal design

allows operation at full load up to an ambient temperature

of 85°C in free air without using any potting material. For

extremely high vibration environments the case has holes

for screw mounting.

Various options as e.g. extended temperature range

–40...85°C, industrial C pinout or SMD pinout provide a

high level of application specific engineering and design-in

flexibility.

Table of Contents

Page

Auxiliary Functions ........................................................... 8

Electromagnetic Compatibility (EMC) ............................ 10

Immunity to Environmental Conditions ........................... 11

Mechanical Data ............................................................ 12

Safety and Installation Instructions ................................ 13

Description of Options .................................................... 14

Summary .......................................................................... 1

Type Survey and Key Data .............................................. 2

Type Ke ............................................................................ 2

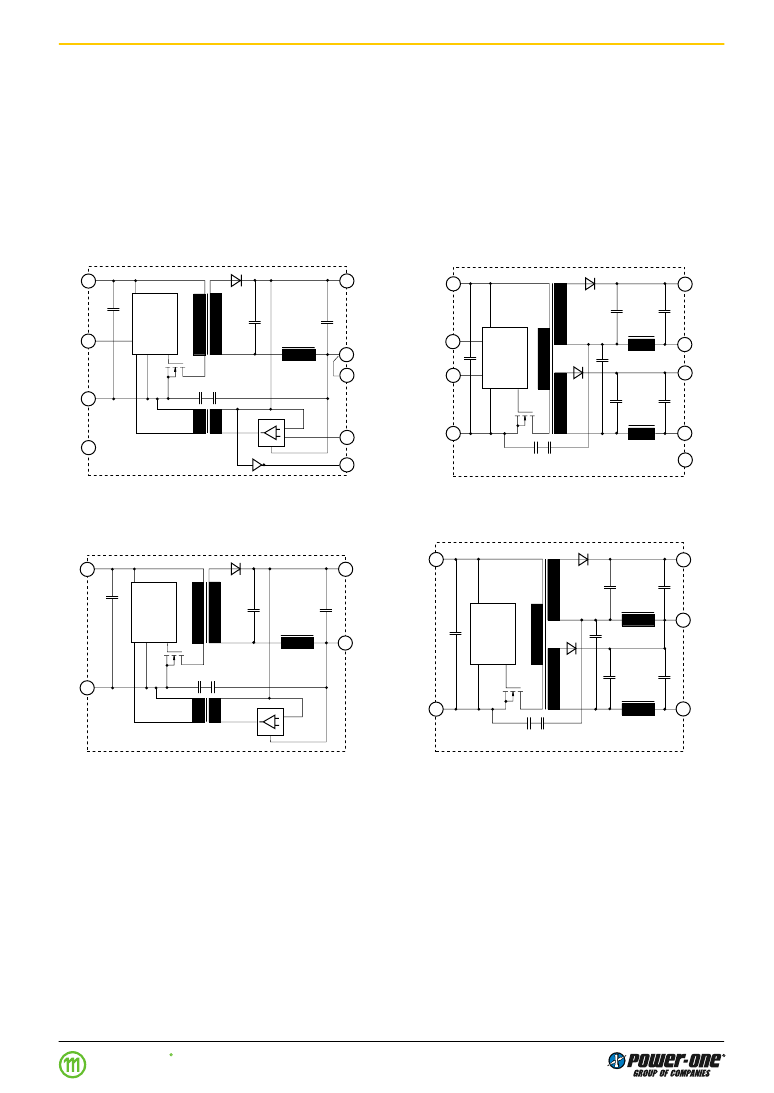

Functional Description ...................................................... 3

Electrical Input Data ......................................................... 4

Electrical Output Data ...................................................... 6

MELCHER

The Power Partners.

Edition 5/9.99

1/15
