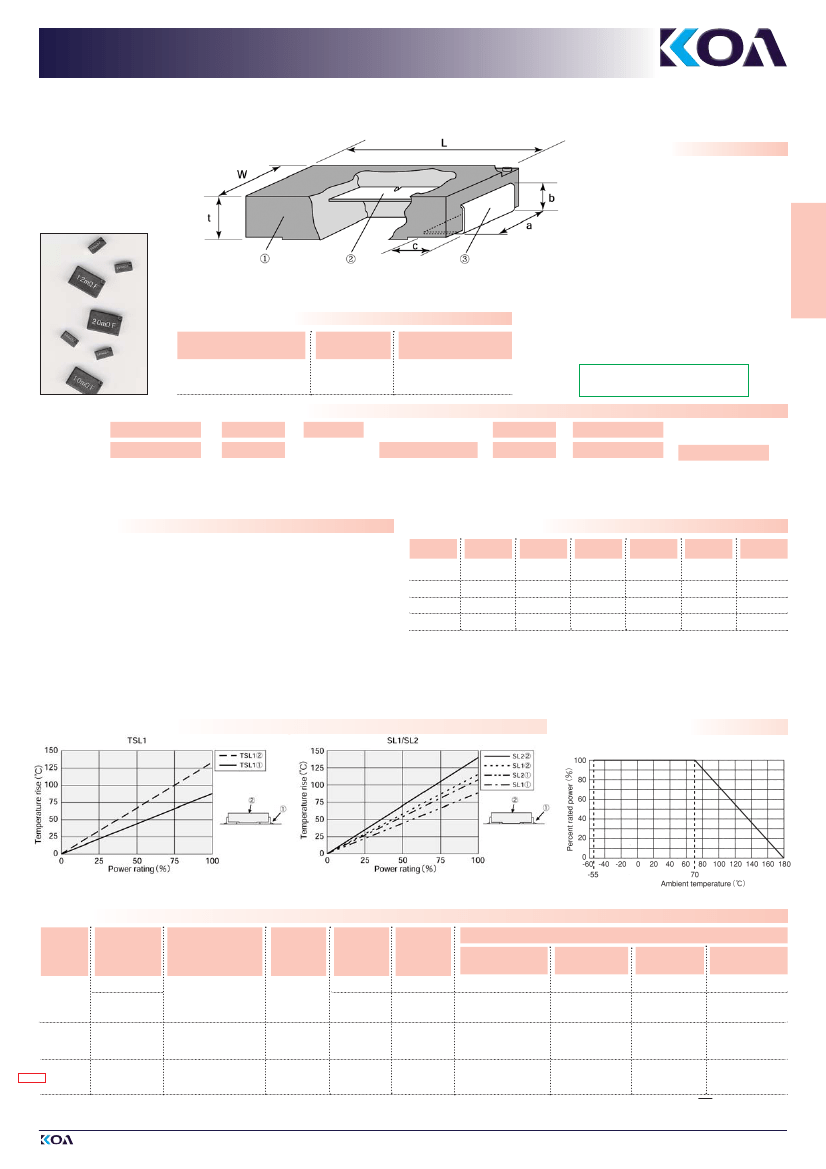

POWER TYPE RESISTORS
TECHNOLOGY OF TOMORROW
METAL PLATE
LOW OHM
SL • SLN • TSL
STRUCTURE
1
Mold resin
2
Resistive element*
3
Electrode
* SL1: for R
≥
120 mΩ an internal thick film resistor is used
SL2: for R
≥
390 mΩ an internal thick film resistor is used
IDENTIFICATION
TYPE
SL, SLN, TSL
COATING
COLOR
Black
MARKING
White
(resistance and tolerance)
Products with Pb-free terminations
meet RoHS requirements
TYPE DESIGNATION (HOW TO ORDER)
Old Part No.
Specifications given herein may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
SL
SL
PRODUCT CODE
SL, SLN
TSL
1
1
POWER
RATING
1W, 2W
F
T
TOLERANCE
TERMINATION
SURFACE MATERIAL
T: Sn
L: Sn/Pb
TE
TE
TAPING*
TE, BK
*Please see “PACKAGING”
R005
5L00
NOMINAL
RESISTANCE
D, F: 4 digits
G, J: 3 digits
New Part No.
(Pb-free)
F
TOLERANCE
D: ±0.5%
F: ±1%
G: ±2%
J: ±5%
FEATURES
■
Current detecting resistors with ultra low resistance (3mΩ…) and high accuracy (±0.5%)
■
Excellent terminal strength and solderability due to structure of a metal plate
terminal electrode
■
Non-wirewound structure and excellent frequency characteristics
■
Excellent dimension accuracy, mountability and shock resistance due to molding
■
Easily absorbs thermal expansion and shrinkage because of metal plate terminal structure
■
Encapsulated with flame retardant resin molding (UL94 V-0)
■
For high ohmic values (up to 22MΩ) an internal thick film resistor is used
■
TSL-series is the low profile version
■
SL1 and TSL1 have standard chip size 2512
■
Ideal for current detection in notebooks, battery packs, AC adapters, DC/DC converters etc.
■
Meets or exceeds IEC 60115-1, JIS C 5201-1
■
Rated ambient temperature: +70°C
■
Operating temperature range: -55°C…+180°C
■
Suitable for reflow, wave and iron soldering
DIMENSIONS (mm)
TYPE
TSL1
SL1
SL2
SLN2
L ±0.3
6.3
6.3
11.5
11.5
W ±0.2
3.1
3.1
7.0
7.0
t ±0.2
1.0
1.9
2.5
2.4
a ±0.2
2.4
2.4
5.0
5.5
b ±0.2
0.7
1.2
1.7
1.6
c
1.2 ± 0.3
1.2 ± 0.3
2.6 ± 0.5
2.55 ± 0.4
TEMPERATURE RISE
DERATING CURVE
Regarding the temperature rise, the value of the temperature varies per conditions and board for use since the temperature is measured under our measuring conditions.
RATING
SIZE
TYPE
TSL1
2512
4528
NEW
T.C.R. (ppm/K)
POWER*
RATING
MAX.
WORKING
VOLTAGE
–
MAX.
OVERLOAD
VOLTAGE
–
400 V
1000 V
–
RESISTANCE RANGE**
D (±0.5%)
E24 • E96***
10 mΩ ...100 mΩ
10 mΩ…1 MΩ
10 mΩ…1 MΩ
5 mΩ…110 mΩ
F (±1%)
E24 • E96
5 mΩ ...100 mΩ
5 mΩ …1 MΩ
5 mΩ …1 MΩ
5 mΩ…110 mΩ
G (±2%)
E24
–
3 mΩ, 4 mΩ
3 mΩ, 4 mΩ
–
J (±5%)
E24
5 mΩ ...100 mΩ
3 mΩ …22 MΩ
3 mΩ …22 MΩ
5 mΩ…110 mΩ
SL1
SL2
SLN2
± 180 (R
;
13 mΩ)
± 100 (R
615
mΩ)
± 180 (R
;
10 mΩ)
± 100 (R
611
mΩ)
± 110 (R < 10 mΩ)
± 75 (R
610
mΩ)
1W
200 V
500 V
–
2W
2W
4528
* For resistors operated at an ambient temperature of +70°C or above, the power rating shall be derated in accordance with the above derating curve. Rated voltage =
k
P·R
** Within the mentioned ranges, the following ohmic values are also available: 3mΩ, 4mΩ, 5mΩ, 6mΩ, 7mΩ, 8mΩ, 9mΩ
*** E-96 values for tolerance D(±0.5%) upon request.
EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de
Revision: 29. Apr. 2005
