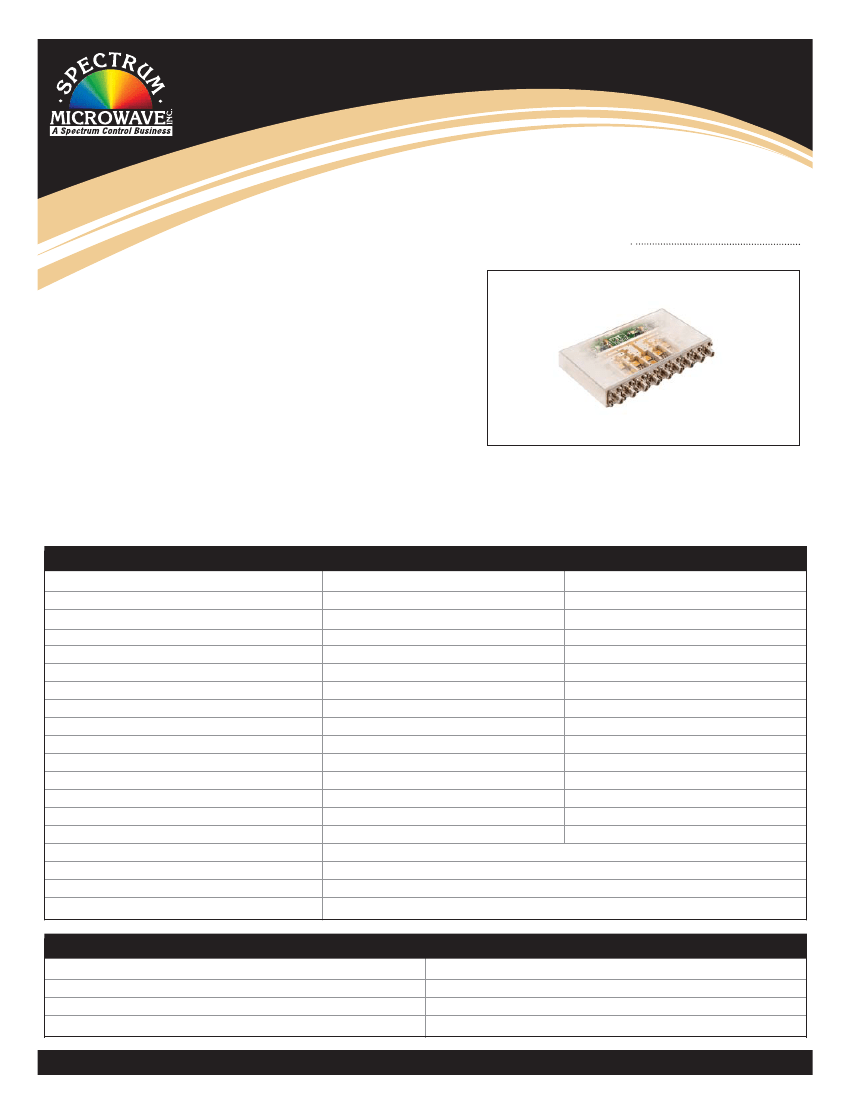

Switched Multi-Channel Amplifier
2000-8000 MHz
Model BXMF1020
FEATURES
• Phase Matched
• Amplitude Matched
• Built-in Input Drive Protection
• High Channel to Channel Isolation
• 4 Channel Design
Spectrum Microwave offers state-of-the-art multi-channel amplifiers used in demanding military frequency calibration systems. These 2,
3, and 4 channel modules are all phase matched, amplitude matched and offer both single and multiple path logic. These units allow the
engineer to either distribute an amplified signal to multiple ports, or measure the amplified output from up to 4 auxiliary ports.
Parameter
Frequency Range
Receive Gain
CAL Path Gain
Noise Figure
1 dB Compression
Single-Tone Spurious Free Dynamic Range
Phase Tracking Delta (Electrical Degrees)
Amplitude Tracking (Channel to Channel)
Out Of Band Rejection
Reverse Isolation
Channel to Channel Isolation
Switching Speed (50% TTL to 90% / 10% RF)
Typical
2000 to 8000 MHz
13 dB
21 dB
9 dB
+9 dBm
45 dB
o
12 at any frequency
2 dB Variation Between Channels
30 dB
40 dB
60 dB
200 nsec
2.0:1
50 dB
+6.5v / 525 mA, +3.3v / 250 mA, -15v / 50
Min./Max.
2000 to 8000 MHz
-
-
-
-
-
-
-
-
-
-
-
-
-
VSWR
Switching Isolation (ON to OFF)
DC Power
Housing Size
RF Connectors
Operating Case Temp. (Min./Max. Values)
5.0 “ x 3.0 “ x 0.65 “
Field Replaceable SMA Connectors
-40°C to +85°C
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature
DC Voltage @ 25°C
Input Drive @ 25°C
-65°C to +125°C
-55°C to +100°C
+/- 20 VDC
+20 dBm
Spectrum Microwave, Inc. • PH: 888.553.7531 • Fax: 888.553.7532 • Email: sales@SpectrumMicrowave.com • www.SpectrumMicrowave.com
