Series 28 HiPer-D Rear Panel Mount Pin Connectors
with Crimp Contacts
HiPer-D Panel Mount Pin Connectors with Crimp Contacts

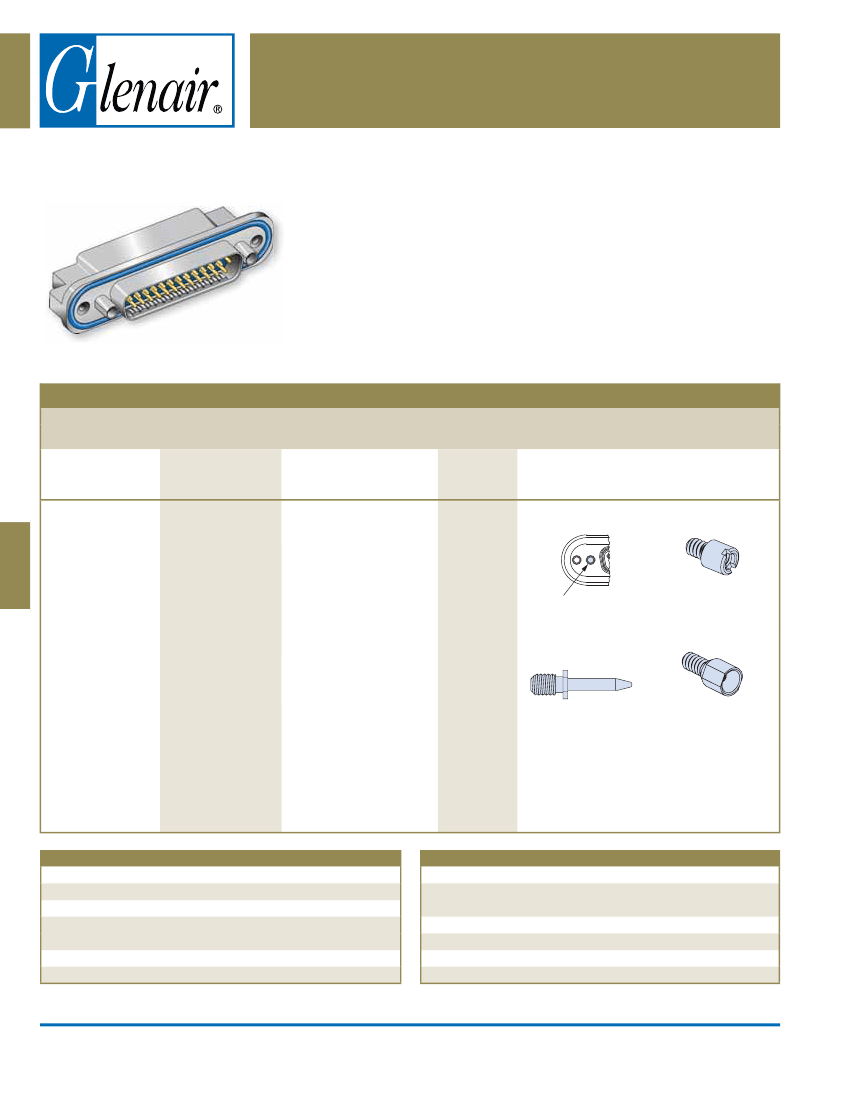

Rear panel mount HiPer-D pin connectors feature crimp, rear-releaseable size #20
or #22D contacts and flange O-ring for a watertight panel seal. Intermateable with
standard M24308-type D-Subminiature connectors, the HiPer-D features a rugged
machined aluminum shell, environmental sealing and optional ground springs for
improved resistance to electromagnetic interference. #4-40 threaded mounting
holes simplify panel attachment. Threaded holes on the rear of the connector allow
attachment of HiPer-D EMI backshells. Contacts are packaged with connector.
Terminate contacts with crimp tools purchased separately. Glass-reinforced thermoset
epoxy insulators, copper alloy retention clips. Fluorosilicone face seal and rear
grommet meet IP67 immersion requirement (mated). 1000 VAC, 5 Amps (#22D) or 7.5
Amps (#20).
HOW TO ORDER
Sample Part Number
280-020P
3H44
Shell Size -
Insert Arr.
Standard Density
#20 Contacts
Contact
Layout Quantity
MT
Shell Material/Finish
N
EMI Spring
P
Hardware Option
D
E
Part Number
280-020P
HiPer-D Panel
Mount Connector
With Crimp Pin
Contacts
ME
Aluminum with
Electroless Nickel Finish
general purpose
applications, excellent
conductivity
G
EMI Spring
1S9
2S15
3S25
4S37
5S50
9
15
25
37
50
N
No Spring
N
#8-32 Threaded Hole
P
#4-40 Female
Jackpost
MT
Aluminum with Nickel-
PTFE Finish
1000 Hour Grey™
maximum corrosion
protection,durability, and
excellent conductivity
(non-reflective grey)
High Density
#22D Contacts
Contact
Layout Quantity
G
Male Guide Pin for
Blind Mating
B
Female Guide Bushing
for Blind Mating
1H15
2H26
3H44
4H62
5H78
6H104
Current Rating
Test Voltage
Insulation Resistance
Operating Temperature
Ingress Protection
Shock
Vibration, Random
© 2011 Glenair, Inc.
15
26
44
62
78
104
JF
Aluminum with Cadmium,
Yellow Chromate
for severe environments,
excellent conductivity
SPECIFICATIONS
#22D 5 AMPS, #20 7.5 AMPS
1000 VAC RMS
5000 megohms minimum
-65° C. to +200° C.
IP 67
300 g.
43.92 g.
Shell
Contacts
MATERIALS AND FINISHES
Aluminum alloy
Copper alloy, 50 microinches gold
plated
Thermoset epoxy, glass-filled
Beryllium copper alloy
Fluorosilicone rubber
300 series stainless steel
Printed in U.S.A.
Insulators
Retention Clips
Grommet and Seal
Hardware
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-1
E-Mail: sales@glenair.com
280-020P
Series 28 HiPer-D Rear Panel Mount Pin Connectors
with Crimp Contacts
HIPER-D CONTACT ARRANGEMENTS: STANDARD DENSITY, #20 CONTACTS
1
6
9
5
1
9
8
15
1
14
13
25
9 #20 Contacts
1
20
19
37
1S9
15 #20 Contacts
1
18
34
2S15
25 #20 Contacts
17
33
50
3S25
37 #20 Contacts
4S37
Mating Face of Pin
Connector
50 #20 Contacts
5S50
HIPER-D CONTACT ARRANGEMENTS: HIGH DENSITY, #22D CONTACTS
1
6
11
5
10
15
1
10
19
9
18
26
1
16
31
15
30
44
15 #22D Contacts
22
43
1
21
42
62
1
21
40
60
1H15
26 #22D Contacts
20
39
59
78
2H26
44 #22D Contacts
1
22
43
64
85
21
42
63
84
104
3H44
62 #22D Contacts
4H62
78 #22D Contacts
5H78
104 #22D Contacts
6H104
Mating Face of Pin Connector

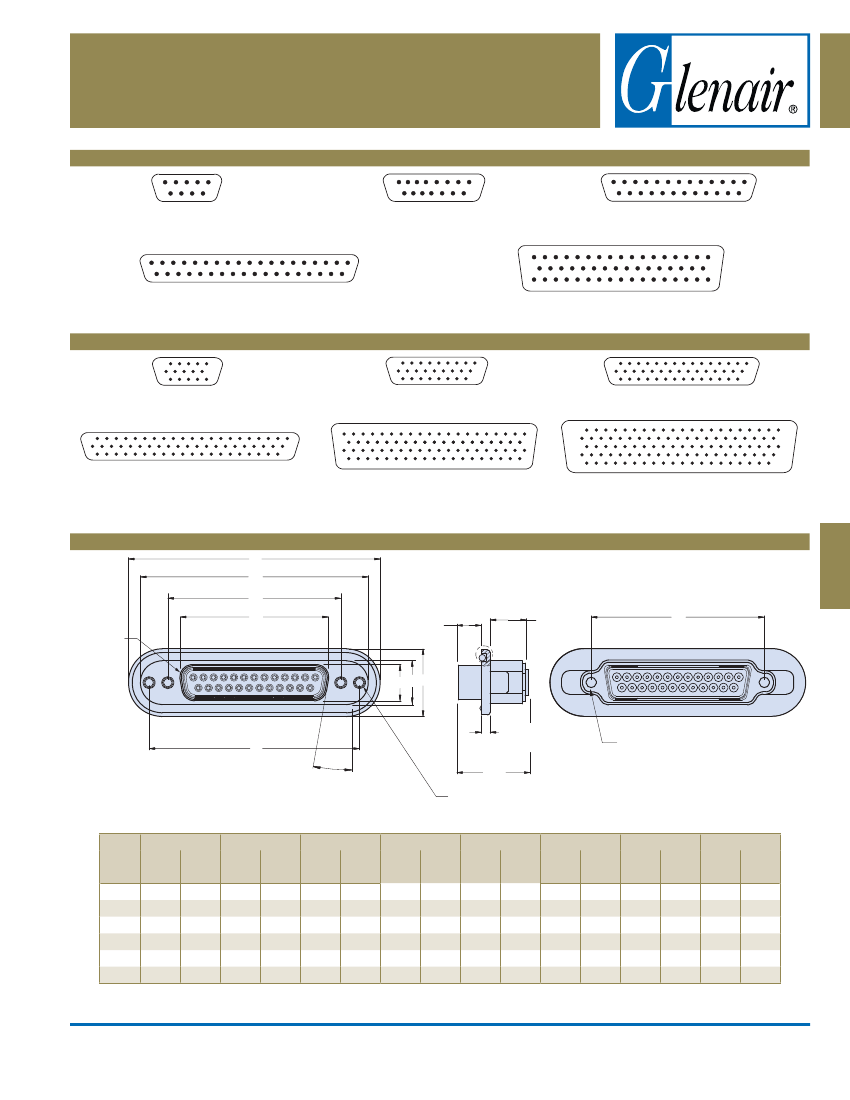

280-020P DIMENSIONS
A
H
C
D
REF .134R
(3.40)
E GB
.262±.003
(6.65±.0.08)
.390±.005
(9.91±0.13)
C
F
10°
TYP 2 PL
.094±.002
(2.39±0.05)
.784
(19.92)
4-40 UNC 2B TH'D
.150 (3.81) MIN DEEP TYP 2 PLCS
4-40 UNC 2B TH'D
150 (3.81) MIN DEEP TYP 2 PLCS
A
Shell
Size
1
2
3
4
5
6
in
± .015
B
mm
in
± .015
C Basic
mm
± 0.38
D
in
mm
± 0.13
E
in
± .005
.389
.389
.389
F Basic
mm
± 0.13
9.88
9.88
9.88
G
in
mm
± 0.38
11.91
11.91
11.91
H
in
± .015
mm
± 0.38
± 0.38
in.
mm
± .005
in
mm
± .015
.469
.469
.469
1.865 47.37
2.200 55.88
2.736 69.49
3.385 85.98
3.289 83.54
3.383 85.93
.725 18.42
.725 18.42
.725 18.42
.725 18.42
.837 21.26
.899 22.83
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
.726 18.44
1.054 26.77
1.594 40.49
2.242 56.95
2.139 54.33
2.272 57.71
1.424 36.17
1.752 44.50
2.292 58.22
2.940 74.68
2.846 72.29
2.940 74.68
1.609 40.87
1.944 49.38
2.480 62.99
3.129 79.48
3.033 77.04
3.127 79.43
Printed in U.S.A.
.389
9.88
.501 12.73
.563 14.30
.469 11.91
.581 14.76
.643 16.33
© 2011 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-2
E-Mail: sales@glenair.com
Panel Mount
Connectors
D
E
Panel Mount
Connectors
280-020P
Series 28 HiPer-D Rear Panel Mount Pin Connectors
with Crimp Contacts

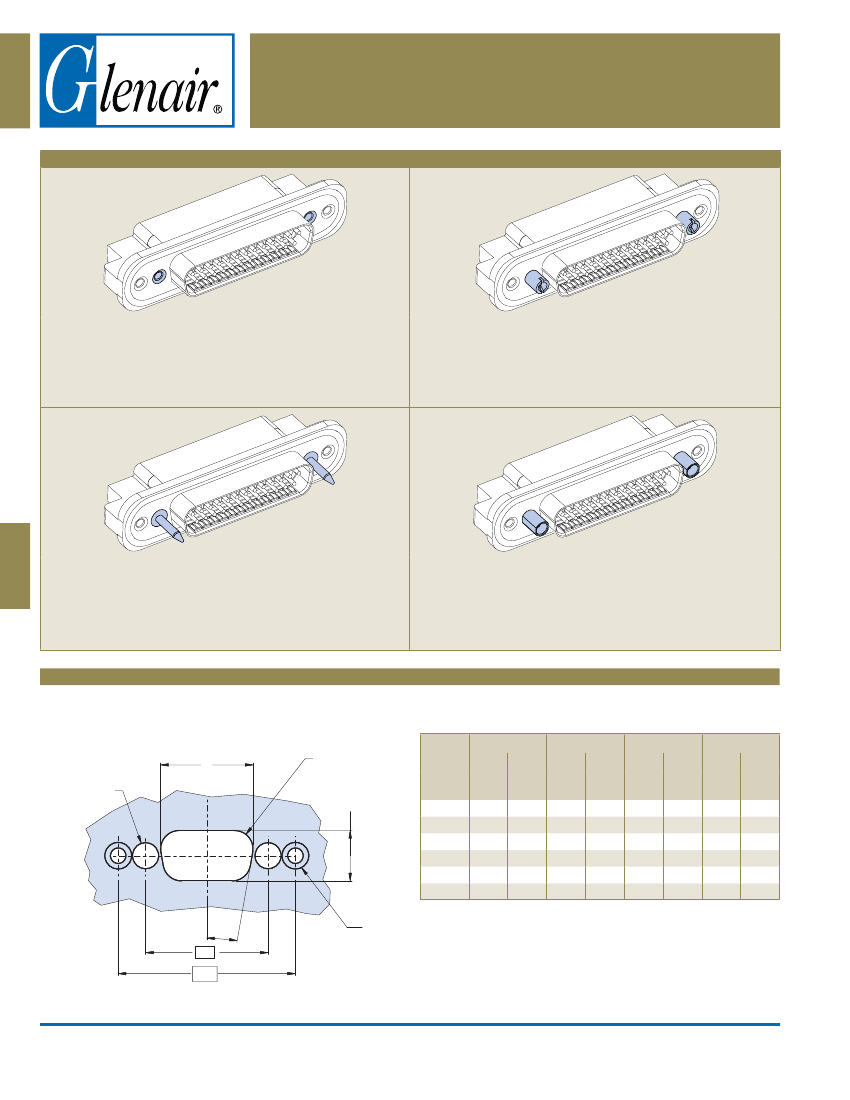

HARDWARE OPTION
N
No Mating Hardware
Connector is supplied without mating hardware. Hardware attachment
holes are #8-32 UNC 2B, .150 min. deep.
P
Jackposts
Connector is supplied with non-removable stainless steel jackposts. #4-40
UNC 2B thread. Stainless steel.
D
E
G
Guide Pins
Connector is supplied with stainless steel non-removable guide pins. Mates
with type "B" guide bushings on mating connector.
B
Female Guide Bushing
Connector is supplied with stainless steel non-removable bushings. Mates
with type "G" guide pins on mating connector.
280-020P PANEL CUTOUTS
REAR PANEL MOUNT CUTOUT RECOMMENDATIONS
AS VIEWED FROM FRONT FACE OF PANEL
R.144 ±.005
A
(3.66 ±.013)
Ø.210 (5.33)
C
A
in
Shell
Size
1
2
3
4
5
6
mm
+.005 +0.13
-.000 -0.00
.746
1.074
1.614
2.262
2.159
2.292
B Basic
in.
in
mm
24.99
33.32
47.04
63.50
61.11
63.50
C
mm
+.005 +0.13
-.000 -0.00
D Basic
in
mm
36.17
44.50
58.22
74.68
72.29
74.68
18.95 .984
27.28 1.312
41.00 1.852
57.45 2.500
54.84 2.406
58.22 2.500
.409 10.39 1.424
.409 10.39 1.752
.409 10.39 2.292
.409 10.39 2.940
.521 13.23 2.846
.583 14.81 2.940
B
D
© 2011 Glenair, Inc.
10° TYP
2X ø.125±.003 (3.18±0.08)THRU
C-SINK 82°@ ø.215
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
E-3
E-Mail: sales@glenair.com
